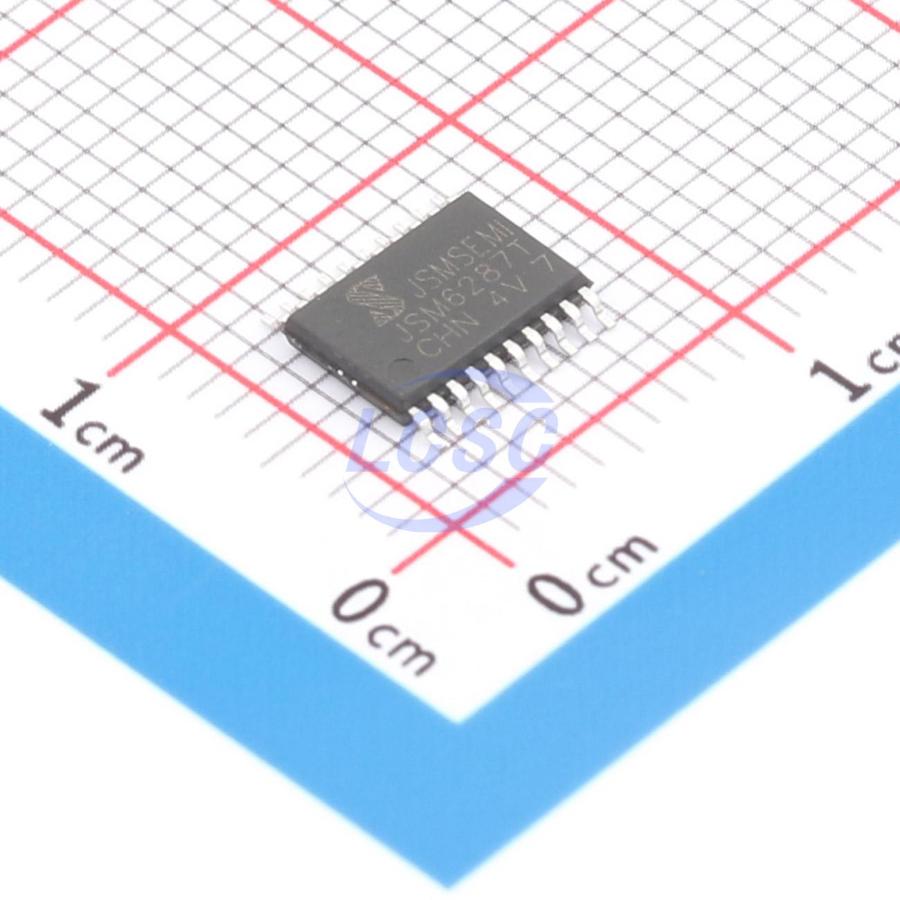

JSM6287T
8V~20V 1.8A 1.5A TSSOP-20 Gate Drivers RoHS
- Manufacturer
- JSMSEMI
- Manufacturer part #
- JSM6287T
- Store part #
- C49450285
- Package / case
- TSSOP-20
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,801 in stock
#C49450285
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹49.27 | ₹49.27 |
| 10+ | ₹42.76 | ₹427.60 |
| 30+ | ₹40.15 | ₹1,204.50 |
| 100+ | ₹36.69 | ₹3,669.00 |
| 500+ | ₹35.17 | ₹17,585.00 |
| 1,000+ | ₹34.29 | ₹34,290.00 |
1 × ₹49.27
₹49.27
excl. GST
₹58.14 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
JSM6287T
₹49.27 for 1 + GST
Specifications
- Input Logic Level - Low
- 800mV
- Low Level Delay Time
- 150ns
- High Level Delay Time
- 120ns
- Quiescent Current
- 230uA
- Input Logic Level - High
- 2.5V
- Voltage - Supply
- 8V~20V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Half-Bridge
- Current - Output Low(IOL)
- 1.8A
- Rise Time
- 30ns
- Fall Time
- 30ns
- Features
- Dead-time control;Interleaved conduction protection
- Current - Output High(IOH)
- 1.5A
- Load Type
- MOSFET
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.194 g
Overview
JSM6287 is a high-voltage, high-speed power MOSFET high- and low-side gate driver IC, integrating both high-side and low-side gate drive circuits on a single chip using a high-voltage compatible process. The device features independent high-side and low-side referenced output channels. Its logic input levels are compatible with CMOS or LSTTL logic outputs down to 3.3V. The output stage offers high-current pulse capability with integrated dead-time logic for shoot-through prevention. The floating channel of the JSM6287 can be used to drive a high-side N-channel power MOSFET, with a maximum floating supply offset voltage of +250V. The device is available in a TSSOP20 package with an operating temperature range of -40℃ to 125℃.
Applications
- Power Tools
- Motor Control
- Two-Wheeler
- Air Conditioner/Washing Machine
- General-Purpose Inverter
Key features
- Floating high-side channel max operating voltage up to +250V (bootstrap operation)
- Compatible with 3.3V/5V input logic
- dVs/dt immunity up to ±50V/ns
- Vs negative bias capability down to -9V
- Gate drive voltage range 8V ~ 20V
- Integrated UVLO on both high-side and low-side
- High-side UVLO: positive threshold 7.1V, negative threshold 6.9V
- Low-side UVLO: positive threshold 7V, negative threshold 6.6V
- Integrated shoot-through prevention dead-time logic, dead time fixed at 200ns
- Turn-on propagation delay Ton = 150ns, turn-off propagation delay Toff = 120ns
- Delay matching time < 50ns
- Wide operating temperature range -40℃ ~ 125℃
- Output stage source current 1.5A, sink current 1.8A
- RoHS compliant
