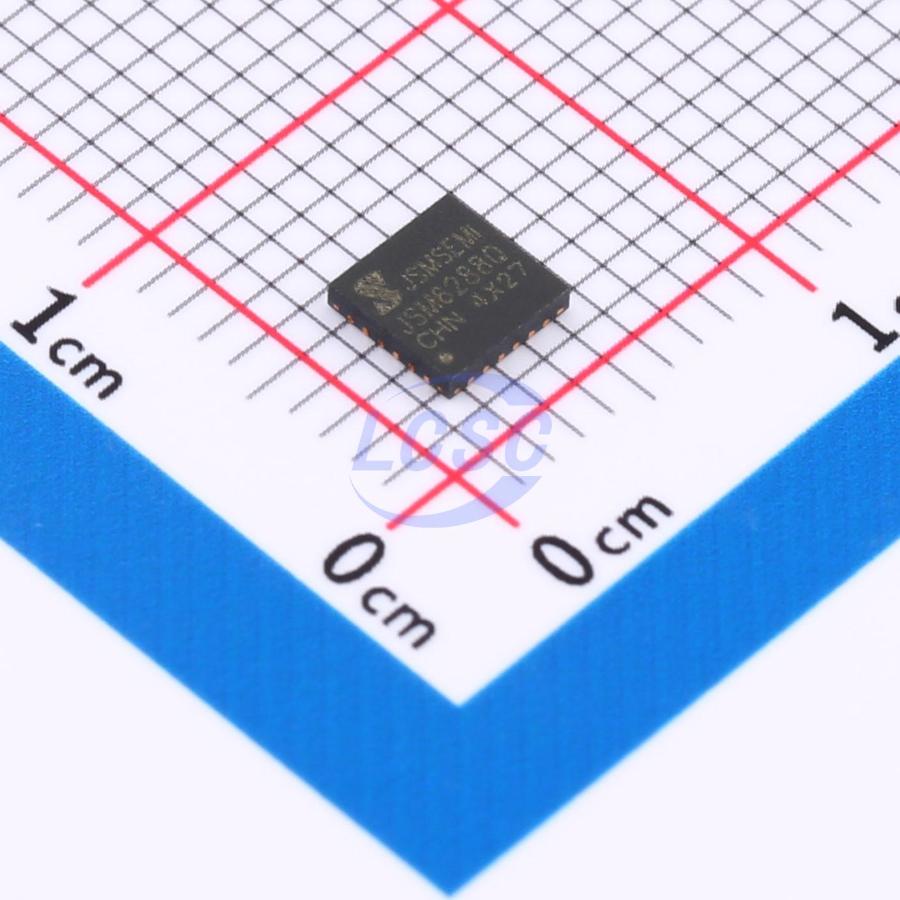

JSM6288Q
8V~20V 1.8A 1.5A QFN-24 Gate Drivers RoHS
Three-phase high and low side power MOSFET/IGBT driver chip
- Manufacturer
- JSMSEMI
- Manufacturer part #
- JSM6288Q
- Store part #
- C19077370
- Package / case
- QFN-24
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
18,396 in stock
#C19077370
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹66.61 | ₹66.61 |
| 10+ | ₹52.02 | ₹520.20 |
| 30+ | ₹44.84 | ₹1,345.20 |
| 100+ | ₹38.31 | ₹3,831.00 |
| 500+ | ₹37.88 | ₹18,940.00 |
| 1,000+ | ₹36.79 | ₹36,790.00 |
1 × ₹66.61
₹66.61
excl. GST
₹78.60 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
JSM6288Q
₹66.61 for 1 + GST
Specifications
- Input Logic Level - Low
- 800mV
- Quiescent Current
- 230uA
- Input Logic Level - High
- 2.5V
- Voltage - Supply
- 8V~20V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- High Side;Low Side;Three Phase
- Current - Output Low(IOL)
- 1.8A
- Rise Time
- 30ns
- Fall Time
- 30ns
- Features
- Dead-time control;Interleaved conduction protection
- Current - Output High(IOH)
- 1.5A
- Load Type
- MOSFET
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.06 g
Overview
JSM6288 is a high-voltage, high-speed power MOSFET high- and low-side gate driver IC fabricated in a high-low voltage compatible process, integrating both high-side and low-side gate drive circuits on a single chip. The device features independent high-side and low-side referenced output channels. Logic input levels are compatible with CMOS or LSTTL logic down to 3.3V. The output stage provides high-current pulse drive capability with integrated shoot-through prevention dead-time logic. The floating channel enables driving of high-side N-channel power MOSFETs, with a maximum floating supply voltage of +250V. JSM6288 is available in TSSOP20 and QFN24 packages, with an operating temperature range of -40°C to 125°C.
Applications
- Motor Control
- Air Conditioners
- Washing Machines
- General-Purpose Inverters
- Micro-Inverter Drives
Key features
- Floating channel supporting bootstrap operation
- Maximum operating voltage +250V
- Compatible with 3.3V/5V input logic
- dVs/dt immunity up to ±50 V/ns
- Vs negative bias capability down to -9V
- Gate drive voltage range 8V ~ 20V
- Integrated UVLO on both high-side and low-side
- High-side UVLO positive threshold 7.1V, negative threshold 6.9V
- Low-side UVLO positive threshold 7V, negative threshold 6.6V
- Integrated shoot-through prevention dead-time logic
- Dead time set to 200ns
- Turn-on propagation delay 150ns, turn-off propagation delay 120ns
- Delay matching time less than 50ns
- Operating temperature range -40°C ~ 125°C
- Output stage source current 1.5A, sink current 1.8A
- RoHS compliant
