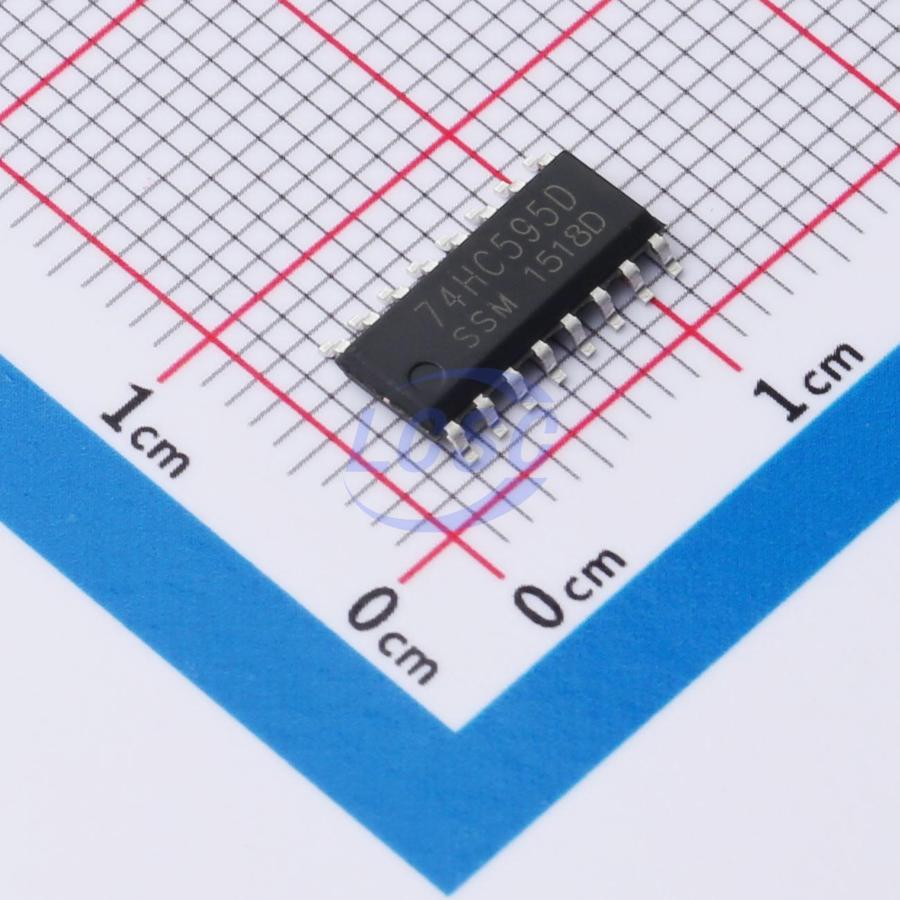

JTD74HC595D
2V~5.5V 1 Serial-to-Serial or Parallel SOP-16 Shift Registers RoHS
SOP-16ROHS CompliantActive
8-bit tri-state latch shift register
- Manufacturer
- JTD
- Manufacturer part #
- JTD74HC595D
- Store part #
- C42443496
- Package / case
- SOP-16
- Category
- Shift Registers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,810 in stock
#C42443496
Stock & price checked 31 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.94 | ₹89.40 |
| 100+ | ₹7.08 | ₹708.00 |
| 300+ | ₹6.14 | ₹1,842.00 |
| 2,500+ | ₹5.44 | ₹13,600.00 |
| 5,000+ | ₹4.87 | ₹24,350.00 |
| 10,000+ | ₹4.59 | ₹45,900.00 |
10 × ₹8.94
₹89.40
excl. GST
₹105.49 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
JTD74HC595D
₹89.40 for 10 + GST
Specifications
- Operating temperature
- -40℃~+85℃
- Pd - Power Dissipation
- 500mW
- Voltage - Supply
- 2V~5.5V
- Output Type
- Tri-State
- Series
- 74HC
- Number of Elements
- 1
- Features
- Asynchronous clear function;Output enable
- Function
- Serial-to-Serial or Parallel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.291 g
Overview
The 74HC595D is a high-speed silicon-gate CMOS device with pin compatibility with low-power Schottky TTL. It consists of an 8-bit shift register and an 8-bit D-type latch with 3-state parallel outputs. The shift register accepts serial data and provides serial or parallel output. It also supplies parallel data to the 8-bit latch. The shift register and latch have independent CLK inputs. The device also features an asynchronous reset for the shift register.
Key features
- 8-bit shift register (serial input, serial or parallel output)
- Latch with tri-state output
- 100MHz (typical) shift output frequency
- ESD protection
- Package: DIP16, SOP16
