JTDDatasheet (PDF)

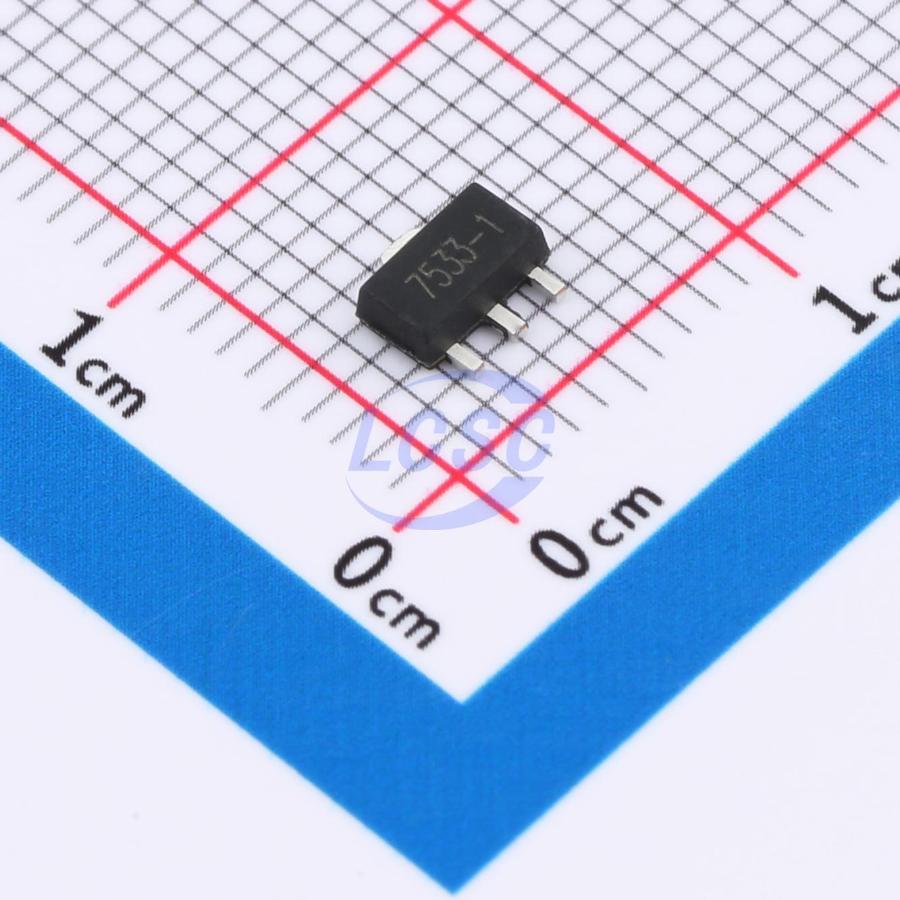

JTD7533-40V
3.3V Positive Fixed SOT-89-3L Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-89-3LRoHSActive
IC REG LINEAR 3.3V 100mA SOT-89-3L
- Manufacturer
- JTD
- Manufacturer part #
- JTD7533-40V
- Store part #
- C49308287
- Package / case
- SOT-89-3L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
77,040 in stock
#C49308287
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.38 | ₹87.60 |
| 200+ | ₹3.44 | ₹688.00 |
| 1,000+ | ₹2.92 | ₹2,920.00 |
| 2,000+ | ₹2.61 | ₹5,220.00 |
| 10,000+ | ₹2.34 | ₹23,400.00 |
| 20,000+ | ₹2.20 | ₹44,000.00 |
20 × ₹4.38
₹87.60
excl. GST
₹103.37 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
JTD7533-40V
₹87.60 for 20 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 1.5uA
- Output Configuration
- Positive
- Output Current
- 100mA
- Operating Voltage
- 36V
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.156 g
Overview
75XX is a low dropout linear regulator fabricated in CMOS technology. It supports a maximum operating voltage of 40V, offers multiple fixed output voltage options ranging from 2.8V to 9.0V, and features low quiescent current consumption. It is widely used in power supply applications for audio, video, and communication equipment.
Applications
- Various power supply equipment
- Communication equipment
- Audio and video equipment
Key features
- Low power consumption
- Low input-output voltage differential
- Low temperature drift coefficient
- Maximum operating voltage up to 4.0V
- Quiescent current 1.5μA
- Output voltage accuracy: ±2%
- High output current: 100mA
