JingYangDatasheet (PDF)

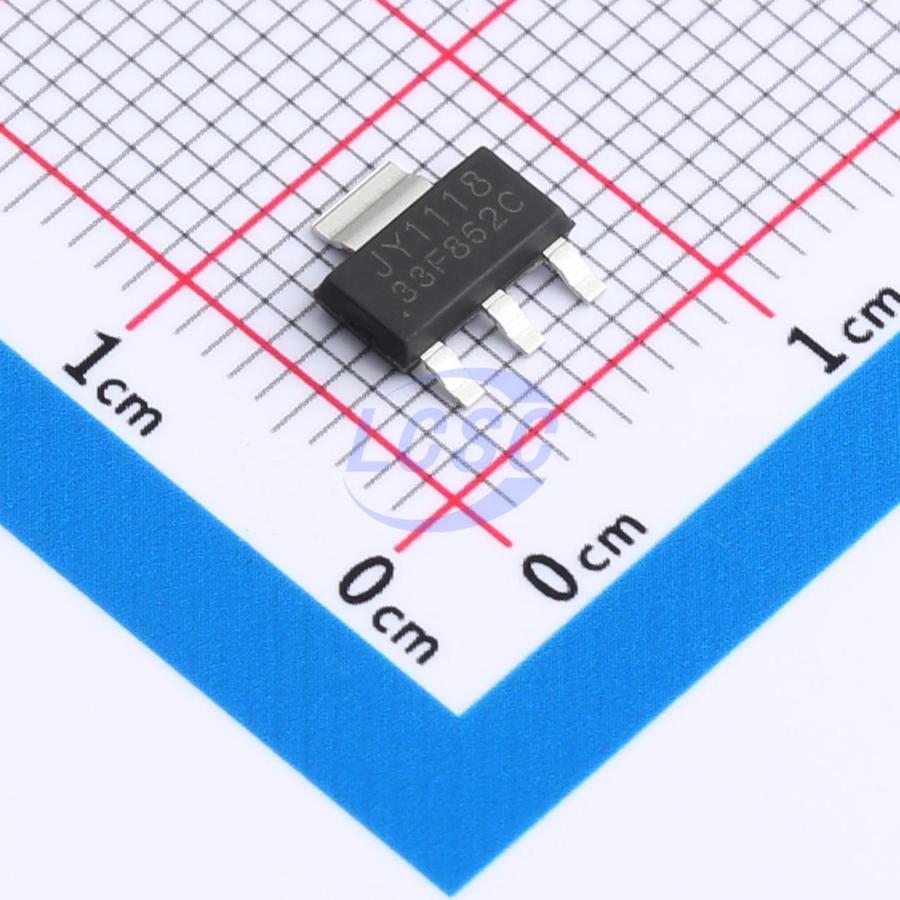

JY1118-33A72R-AX
3.3V Positive Fixed SOT-223-F Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-223-FROHS CompliantActive
Ultra-Low Noise 1000mA LDO Regulator
- Manufacturer
- JingYang
- Manufacturer part #
- JY1118-33A72R-AX
- Store part #
- C6423750
- Package / case
- SOT-223-F
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,820 in stock
#C6423750
Stock & price checked 36 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹28.03 | ₹140.15 |
| 50+ | ₹24.49 | ₹1,224.50 |
| 150+ | ₹22.97 | ₹3,445.50 |
| 500+ | ₹21.06 | ₹10,530.00 |
| 3,000+ | ₹20.22 | ₹60,660.00 |
| 6,000+ | ₹19.71 | ₹1,18,260.00 |
5 × ₹28.03
₹140.15
excl. GST
₹165.38 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
JY1118-33A72R-AX
₹140.15 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 90uA
- Output Configuration
- Positive
- Output Current
- 1A
- Operating Voltage
- 8V
- Features
- Enable control;Over Current Protection;Short Circuit Protection;Thermal shutdown;Output discharge
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.227 g
Overview
The JY1118 is an 1000mA fixed output voltage, low dropout and low noise linear regulator with high ripple rejection ratio and fast turn-on time. It includes a reference voltage source, an error amplifier, driver transistors and an internal current limiter. The current limiter’s holdback circuit operates as a short protection. The JY1118 works well with low ESR ceramic capacitors, suitable for portable RF and wireless battery-powered applications with stringent space requirements and demanding performance. It also offers ultra low noise output and has low quiescent current.
Applications
- Battery-Powered Equipment
- Portable Instruments
- Slim DVDs
- Digital Camera
- WLAN Communication
- Hand-Held Instruments
Key features
- Ultra-Low-Noise application
- Wide 2.5V to 7V Operating Range
- Quick Start-Up
- Eight Fixed Voltage Options Available
- Current Limiting Protection
- Thermal Shutdown Protection
- High Ripple Rejection 50dB @ 1kHz
- Standby Current Less Than 0.1μA Auto Discharge
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AMS1117-3.3#C22459274JingYang · SOT-223 | JingYang | SOT-223 | 2,290 | ₹13.57 · 2,290 in stock | View |
 | JY1117E33AX#C3038113JingYang · SOT-223-4 | JingYang | SOT-223-4 | 4,150 | ₹10.88 · 4,150 in stock | View |
