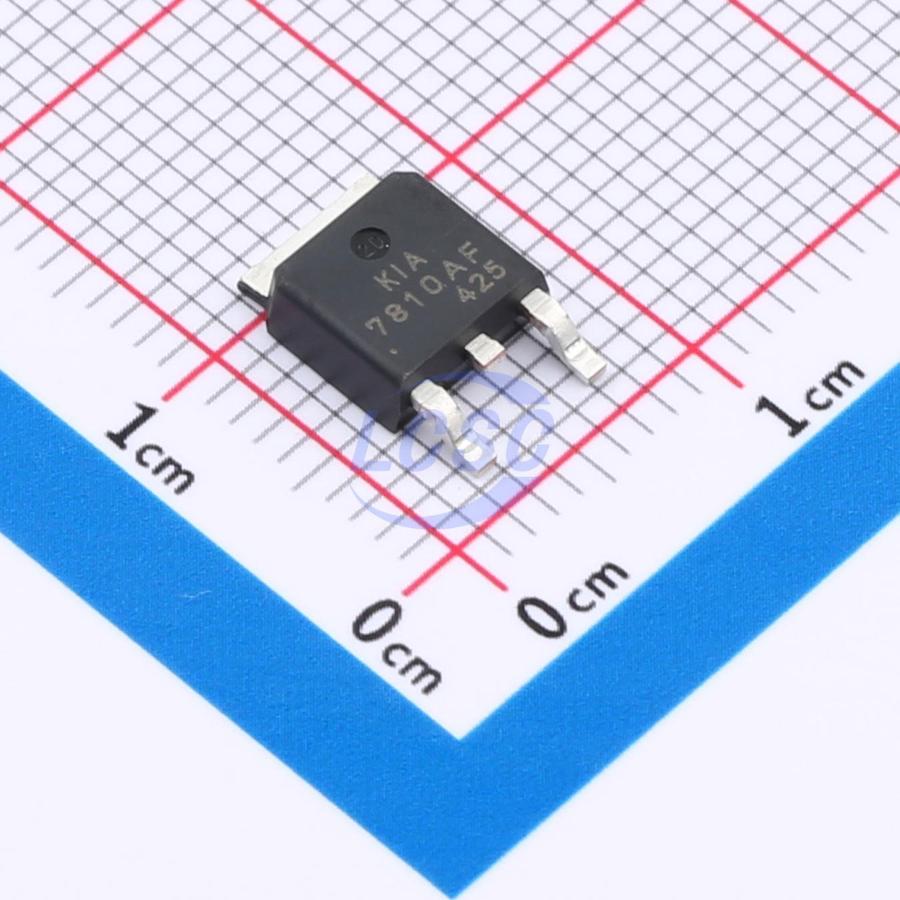

KIA7810AF-RTF/PQ
Linear Voltage Regulator IC Positive Fixed 1 Output TO-252-2(DPAK)
TO-252-2(DPAK)ROHS CompliantActive
Three-terminal positive voltage regulator
- Manufacturer
- KEC
- Manufacturer part #
- KIA7810AF-RTF/PQ
- Store part #
- C22647466
- Package / case
- TO-252-2(DPAK)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,125 in stock
#C22647466
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹24.45 | ₹122.25 |
| 50+ | ₹19.05 | ₹952.50 |
| 150+ | ₹16.74 | ₹2,511.00 |
| 500+ | ₹13.85 | ₹6,925.00 |
| 3,000+ | ₹12.57 | ₹37,710.00 |
| 6,000+ | ₹11.80 | ₹70,800.00 |
5 × ₹24.45
₹122.25
excl. GST
₹144.26 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
KIA7810AF-RTF/PQ
₹122.25 for 5 + GST
Specifications
- Output Voltage
- 10V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+150℃@(Tj)
- Supply Current (Iq)
- 4.3mA
- Output Configuration
- Positive
- Operating Voltage
- 35V
- Output Current
- 1A
- Features
- Thermal shutdown;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1 g
Overview
Applications
- VOLTAGE BOOST REGULATOR
- Voltage boost by use of zener diode
- Voltage boost by use of resistor
- Adjustable output regulator
- CURRENT BOOST REGULATOR
Key features
- Internal Thermal Overload Protection.
- Internal Short Circuit Current Limiting.
- Output Current in Excess of 1A. Satisfies IEC-65 Specification. (International Electronical Commission).
- Package is DPAK, TO-220IS
- Suitable for MLCC, Tantalum and Low ESR Electrolytic Capacitors.
- Suffix U : Qualified to AEC-Q100(Grade 0) : Automotive and standard product are electrically and thermally the same, except where specified. ex) KIA78**AF-RTF/PU.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BA7810FP-E2#C3744383ROHM · TO-252 | ROHM | TO-252 | 3,979 | ₹184.08 · 3,979 in stock | View |
 | L78M10AGT#C52204770GREENMICRO · TO-252-2 | GREENMICRO | TO-252-2 | 2,265 | ₹28.63 · 2,265 in stock | View |
 | LM78M10ADT/TR#C54140483HGSEMI · TO-252-2 | HGSEMI | TO-252-2 | On request | Price on request | Quote |
 | BA17810FP-E2#C6129849ROHM · TO-252 | ROHM | TO-252 | On request | Price on request | Quote |
 | BAJ0CC0FP-E2#C5336539ROHM · TO-252 | ROHM | TO-252 | On request | Price on request | Quote |
