MICROCHIP

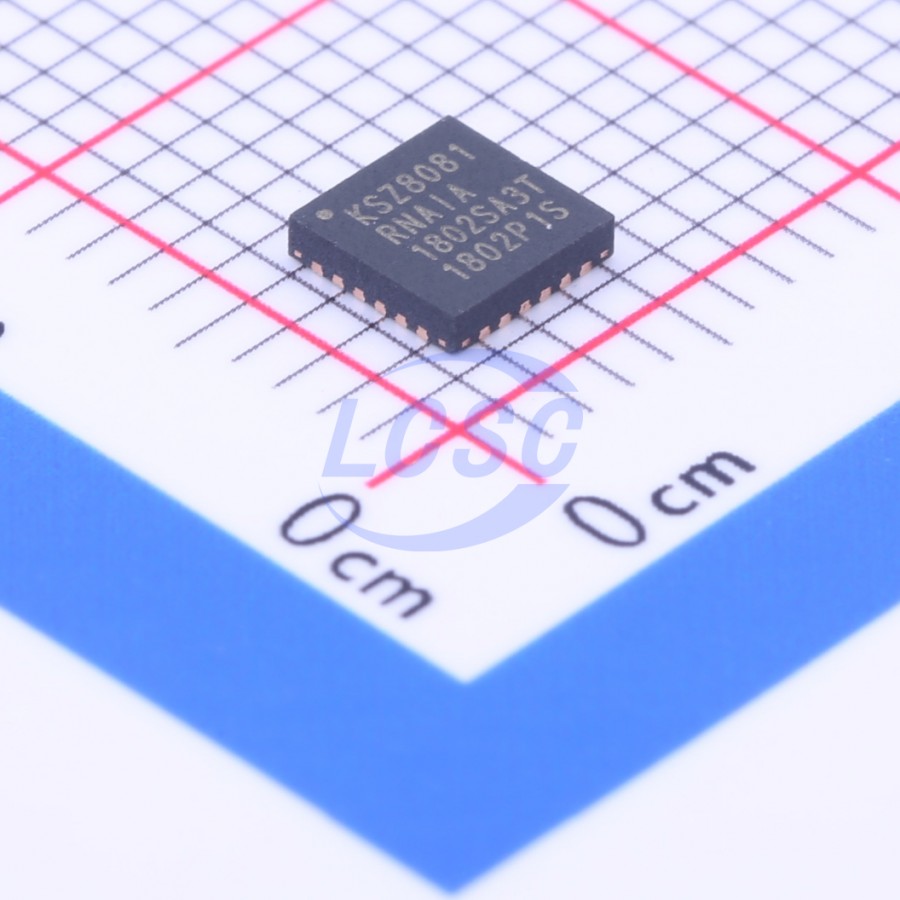

KSZ8081RNAIA-TR

3.3V PHY Transceiver RMII QFN-24-EP(4x4) Drivers, Receivers, Transceivers RoHS

QFN-24-EP(4x4)ROHS3 CompliantActive

10BASE-T/100BASE-TX PHY with RMII

Manufacturer: MICROCHIP
Manufacturer part #: KSZ8081RNAIA-TR
Store part #: C145623
Package / case: QFN-24-EP(4x4)
Category: Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,018 in stock

#C145623

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹187.00	₹187.00
10+	₹156.65	₹1,566.50
30+	₹140.03	₹4,200.90
100+	₹117.62	₹11,762.00
500+	₹109.31	₹54,655.00
1,000+	₹105.51	₹1,05,510.00

Quantity (min 1)

1 × ₹187.00

₹187.00

excl. GST

₹220.66 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 1,000 per reel

KSZ8081RNAIA-TR

₹187.00 for 1 + GST

Specifications

Voltage - Supply: 3.3V
Type: PHY Transceiver
Ethernet Speed Standards: 10BASE-T;100BASE-TX
Data Rate: 10Mbit/s;100Mbit/s
Operating Temperature: -40℃~+85℃
Features: Programmable LED indication;Cable diagnostics;Error detection and recovery;Low-power mode
Interface: RMII

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: 5A991B1
Packaging: Tape & Reel (TR)
Standard pack: 1,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.119 g

Overview

The KSZ8081RNA/RND is a single-supply 10BASE-T/100BASE-TX Ethernet physical-layer transceiver for transmission and reception of data over standard CAT-5 unshielded twisted pair (UTP) cable. The KSZ8081RNA/RND is a highly-integrated PHY solution. It reduces board cost and simplifies board layout by using on-chip termination resistors for the differential pairs and by integrating a low-noise regulator to supply the 1.2V core, and by offering 1.8/2.5/3.3V digital I/O interface support. The KSZ8081RNA/RND offers the Reduced Media Independent Interface (RMII) for direct connection to RMII-compliant MACs in Ethernet processors and switches. As the power-up default, the KSZ8081RNA/RND uses a 25 MHz crystal to generate all required clocks, including the 50 MHz RMII reference clock output for the MAC. The KSZ8081RND is the version that takes in the 50 MHz RMII reference clock as the power-up default. To facilitate system bring-up and debugging in production testing and in product deployment, parametric NAND tree support enables fault detection between KSZ8081RNA/RND I/Os and the board. LinkMD TDR-based cable diagnostics identify faulty copper cabling. The KSZ8081RNA and KSZ8081RND are available in 24-pin, lead-free QFN packages.

Applications

Game Consoles
IP Phones
IP Set-Top Boxes
IP TVs
LOM
Printers

Key features

Single-Chip 10BASE-T/100BASE-TX IEEE 802.3 Compliant Ethernet Transceiver
RMII v1.2 Interface Support with a 50 MHz Reference Clock Output to MAC, and an Option to Input a 50 MHz Reference Clock
RMII Back-to-Back Mode Support for a 100 Mbps Copper Repeater
MDC/MDIO Management Interface for PHY Register Configuration
Programmable Interrupt Output
LED Outputs for Link and Activity Status Indication
On-Chip Termination Resistors for the Differential Pairs
Baseline Wander Correction
HP Auto MDI/MDI-X to Reliably Detect and Correct Straight-Through and Crossover Cable Connections with Disable and Enable Option
Auto-Negotiation to Automatically Select the Highest Link-Up Speed (10/100 Mbps) and Duplex (Half/Full)
Power-Down and Power-Saving Modes
LinkMD TDR-Based Cable Diagnostics to Identify Faulty Copper Cabling
Parametric NAND Tree Support for Fault Detection Between Chip I/Os and the Board
HBM ESD Rating (6 kV)
Loopback Modes for Diagnostics
Single 3.3V Power Supply with VDD I/O Options for 1.8V, 2.5V, or 3.3V
Built-In 1.2V Regulator for Core
Available in 24-pin 4 mm x 4 mm QFN Package
