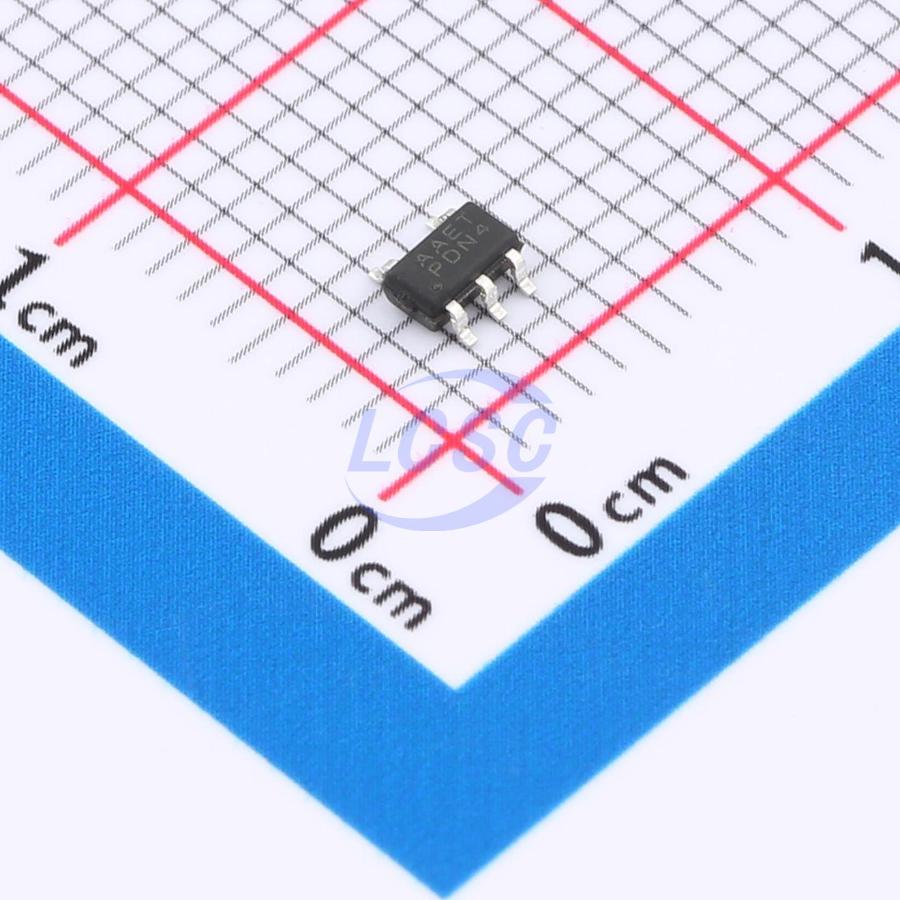

L-LP5907MFX-2.5/NOPB
2.5V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5RoHSActive
IC REG LINEAR 2.5V 300mA SOT-23-5
- Manufacturer
- PIELENST
- Manufacturer part #
- L-LP5907MFX-2.5/NOPB
- Store part #
- C49190433
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,800 in stock
#C49190433
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.56 | ₹57.80 |
| 50+ | ₹9.16 | ₹458.00 |
| 150+ | ₹7.95 | ₹1,192.50 |
| 500+ | ₹7.05 | ₹3,525.00 |
| 3,000+ | ₹6.34 | ₹19,020.00 |
| 6,000+ | ₹5.98 | ₹35,880.00 |
5 × ₹11.56
₹57.80
excl. GST
₹68.20 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
L-LP5907MFX-2.5/NOPB
₹57.80 for 5 + GST
Specifications
- Output Voltage
- 2.5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 300mA
- Output Type
- Fixed
- Features
- Enable control;Over Current Protection;Thermal shutdown
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.037 g
Overview
This product features a wide input voltage range of 1.2V to 5.5V, with low dropout, low power consumption, and a compact package. Its 2uA low quiescent current makes it particularly suitable for battery-powered devices and systems requiring extended standby operation, helping to reduce system standby power consumption and effectively prolonging standby time and battery life. An optional version with an EN enable pin is available; pulling the EN pin low enters shutdown mode, in which the quiescent current drops to a typical value of 100nA. Compatible with ceramic output capacitors, it operates stably across the full input voltage range of 1.2V to 5.5V and output load current range of 0mA to 300mA.
Applications
- Handheld, battery-powered devices
- Low-power microprocessors
- Laptops, palmtops, and PDAs
- Wireless communication devices
- Audio/video devices
- Automotive navigation systems
Key features
- 2μA quiescent current (no load)
- ±2% output voltage accuracy
- 300mA output current capability
- 100nA shutdown current (optional version)
- Wide input voltage range: 1.2V to 5.5V
- Low dropout: 0.18V (at Vo=3.3V, Io=300mA)
- Fixed output voltage: 2.5V
- Compatible with ceramic or tantalum capacitors
- Current limiting protection
- Over-temperature protection
