UMW

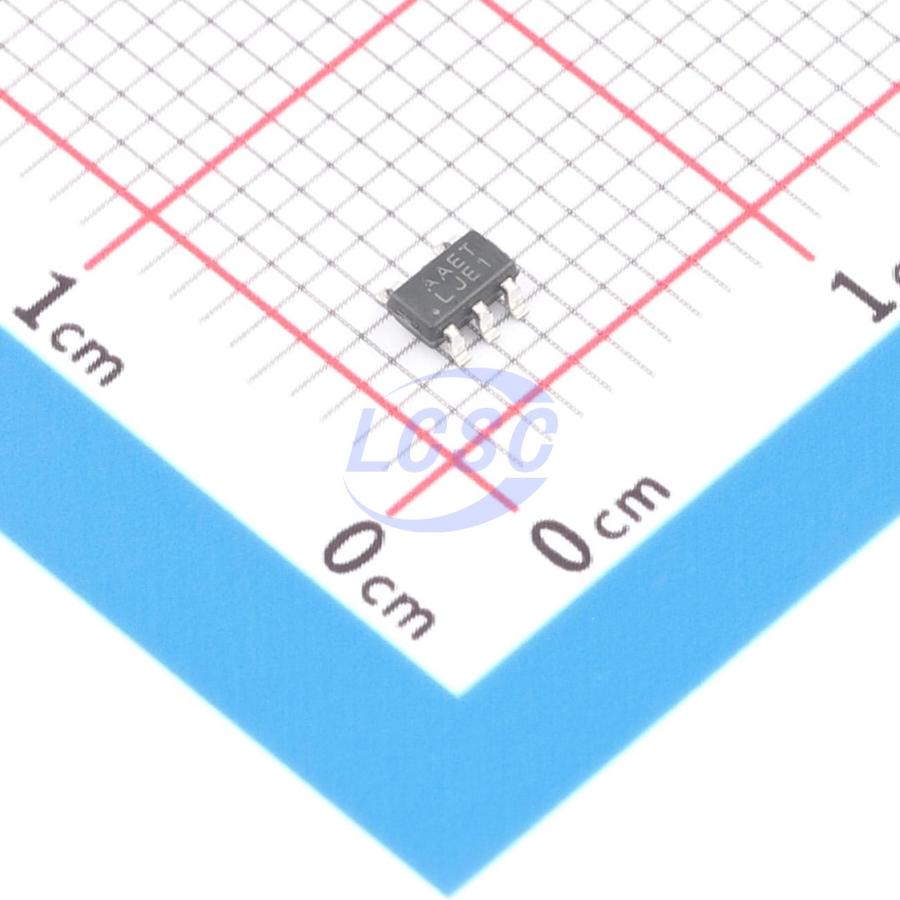

XC6206P332MRLinear Voltage Regulator IC Positive Fixed 1 Output 250mA SOT-23
From
₹2.53
18,64,100 in stock
PIELENSTDatasheet (PDF)
L-TLV70225DBVR
2.5V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5RoHSActive
IC REG LINEAR 2.5V 300mA SOT-23-5
- Manufacturer
- PIELENST
- Manufacturer part #
- L-TLV70225DBVR
- Store part #
- C49190449
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,900 in stock
#C49190449
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.06 | ₹90.60 |
| 100+ | ₹7.18 | ₹718.00 |
| 300+ | ₹6.24 | ₹1,872.00 |
| 3,000+ | ₹5.54 | ₹16,620.00 |
| 6,000+ | ₹4.97 | ₹29,820.00 |
| 9,000+ | ₹4.70 | ₹42,300.00 |
10 × ₹9.06
₹90.60
excl. GST
₹106.91 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
L-TLV70225DBVR
₹90.60 for 10 + GST
Specifications
- Output Voltage
- 2.5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 300mA
- Features
- Enable control;Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.036 g
Overview
This product features a wide input voltage range of 1.2V to 5.5V, with low dropout voltage, low power consumption, and a compact package. The quiescent current is as low as 2µA, making it particularly suitable for battery-powered devices and systems requiring extended standby operation, helping to reduce system standby power consumption and effectively prolong both standby time and battery life. An optional version with an EN enable pin is available; pulling the EN pin low enters shutdown mode, where the typical quiescent current drops to 100nA. The device supports ceramic output capacitors and operates stably across the full input voltage range of 1.2V to 5.5V and load current range of 0mA to 300mA.
Applications
- Handheld and battery-powered equipment
- Low-power microprocessors
- Notebook computers and handheld devices
- Wireless communication equipment
- Audio/video equipment
Key features
- 2μA quiescent current (no load)
- ±2% output voltage accuracy
- 300mA output current capability
- 100nA shutdown current (optional version)
- Wide input voltage range: 1.2V to 5.5V
- Low dropout: 0.18V (Vo=3.3V, Io=300mA)
- Fixed output voltage: 2.5V
- Compatible with ceramic or tantalum capacitors
- Current limiting protection
- Over-temperature protection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | L-LP5907MFX-2.5/NOPB#C49190433PIELENST · SOT-23-5 | PIELENST | SOT-23-5 | 2,800 | ₹11.52 · 2,800 in stock | View |
 | L-AP2127K-2.5TRG1#C49190684PIELENST · SOT-23-5 | PIELENST | SOT-23-5 | 2,690 | ₹8.94 · 2,690 in stock | View |
 | L-XC6228D252VR-G#C49190694PIELENST · SOT-23-5 | PIELENST | SOT-23-5 | On request | Price on request | Quote |
