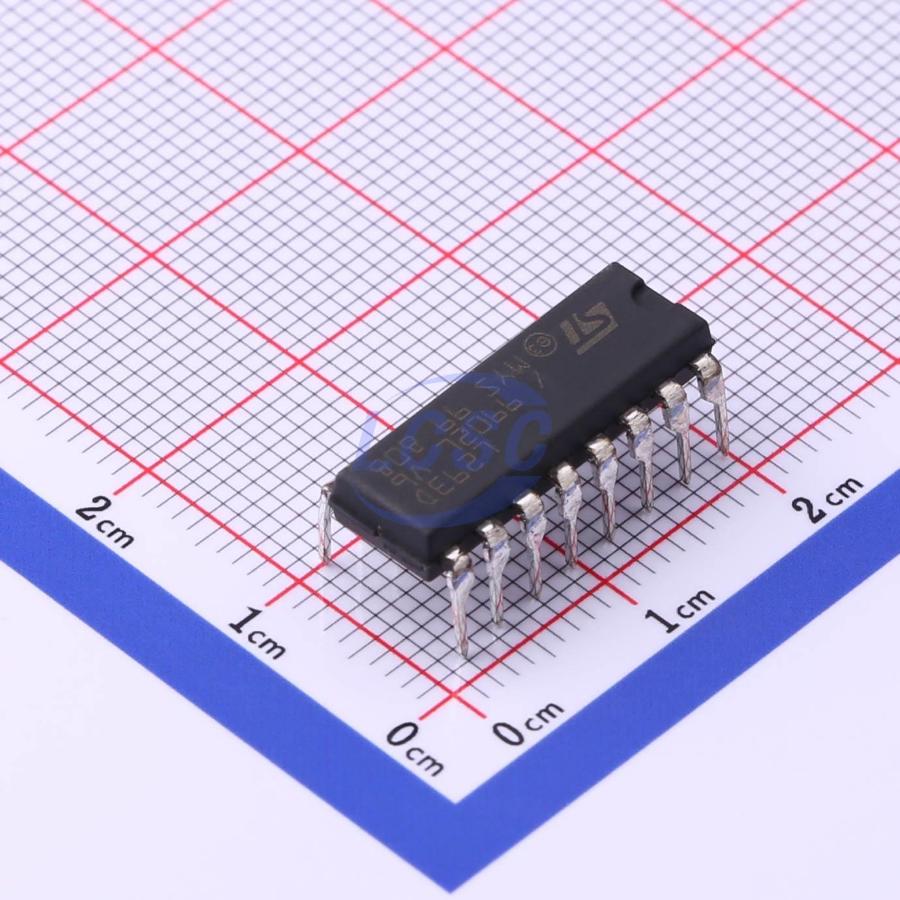

L293D
4.5V~36V DIP-16 Motor Drivers, Controllers RoHS
PUSH-PULL FOUR CHANNEL DRIVER WITH DIODES
- Manufacturer
- ST
- Manufacturer part #
- L293D
- Store part #
- C12340
- Package / case
- DIP-16
- Category
- Motor Drivers, Controllers
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
997 in stock
#C12340
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹359.00 | ₹359.00 |
| 10+ | ₹306.97 | ₹3,069.70 |
| 30+ | ₹276.07 | ₹8,282.10 |
| 100+ | ₹244.63 | ₹24,463.00 |
| 500+ | ₹230.18 | ₹1,15,090.00 |
| 1,000+ | ₹223.67 | ₹2,23,670.00 |
1 × ₹359.00
₹359.00
excl. GST
₹423.62 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 25 per tube
L293D
₹359.00 for 1 + GST
Specifications
- Number of H-bridges
- 2
- Features
- Interleaved conduction protection;Motor stall protection;Current sensing/regulation function;Active braking function;Soft-start;Soft switching
- Voltage - Supply
- 4.5V~36V
- Operating Temperature
- -40℃~+150℃
- Supply Current (Iq)
- 4mA
- Output Current
- 600mA
- Peak Current
- 1.2A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 25 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.08 g
Overview
The Device is a monolithic integrated high voltage, high current four channel driver designed to accept standard DTL or TTL logic levels and drive inductive loads (such as relays solenoides, DC and stepping motors) and switching power transistors. To simplify use as two bridges each pair of channels is equipped with an enable input. A separate supply input is provided for the logic, allowing operation at a lower voltage and internal clamp diodes are included. This device is suitable for use in switching applications at frequencies up to 5 kHz.
Key features
- 600mA OUTPUT CURRENT CAPABILITY PER CHANNEL
- 1.2A PEAK OUTPUT CURRENT (non repetitive) PER CHANNEL
- ENABLE FACILITY
- OVERTEMPERATURE PROTECTION
- LOGICAL "0" INPUT VOLTAGE UP TO 1.5 V (HIGH NOISE IMMUNITY)
- INTERNAL CLAMP DIODES
