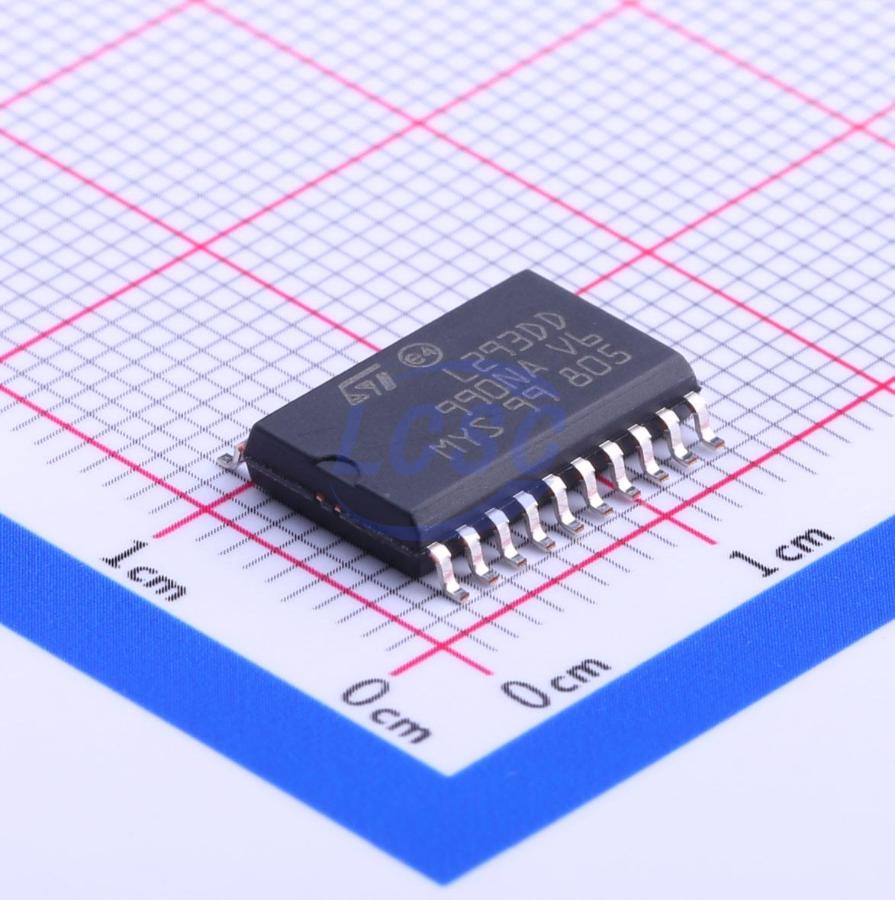

L293DD013TR

4.5V~36V SOIC-20-300mil Motor Drivers, Controllers RoHS

SOIC-20-300milROHS3 CompliantActive

PUSH-PULL FOUR CHANNEL DRIVER WITH DIODES

Manufacturer: ST
Manufacturer part #: L293DD013TR
Store part #: C21610
Package / case: SOIC-20-300mil
Category: Motor Drivers, Controllers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,093 in stock

#C21610

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹271.56	₹271.56
10+	₹230.73	₹2,307.30
30+	₹205.06	₹6,151.80
100+	₹161.35	₹16,135.00
500+	₹149.42	₹74,710.00
1,000+	₹144.36	₹1,44,360.00

Quantity (min 1)

1 × ₹271.56

₹271.56

excl. GST

₹320.44 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 1,000 per reel

L293DD013TR

₹271.56 for 1 + GST

Specifications

Number of H-bridges: 2
Voltage - Supply: 4.5V~36V
Technology: No
Supply Current (Iq): 4mA
Output Current: 600mA
Peak Current: 1.2A

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 1,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 1.045 g

Overview

The Device is a monolithic integrated high voltage, high current four channel driver designed to accept standard DTL or TTL logic levels and drive inductive loads (such as relays solenoides, DC and stepping motors) and switching power transistors. To simplify use as two bridges each pair of channels is equipped with an enable input. A separate supply input is provided for the logic, allowing operation at a lower voltage and internal clamp diodes are included. This device is suitable for use in switching applications at frequencies up to 5 kHz.
