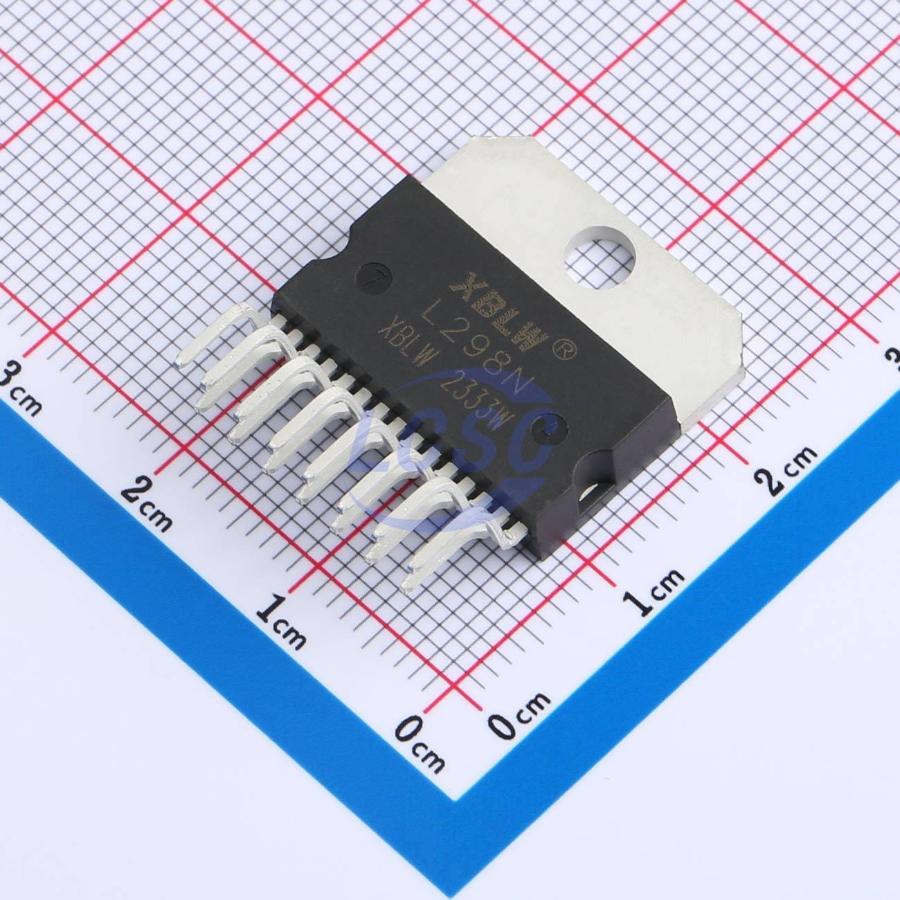

L298N(XBLW)
ZIP-15 Motor Drivers, Controllers RoHS
Dual Channel Full Bridge Driver
- Manufacturer
- XBLW
- Manufacturer part #
- L298N(XBLW)
- Store part #
- C18723576
- Package / case
- ZIP-15
- Category
- Motor Drivers, Controllers
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
928 in stock
#C18723576
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹146.95 | ₹146.95 |
| 10+ | ₹121.45 | ₹1,214.50 |
| 25+ | ₹107.61 | ₹2,690.25 |
| 100+ | ₹91.84 | ₹9,184.00 |
| 500+ | ₹84.71 | ₹42,355.00 |
| 1,000+ | ₹81.68 | ₹81,680.00 |
1 × ₹146.95
₹146.95
excl. GST
₹173.40 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 25 per tube
L298N(XBLW)
₹146.95 for 1 + GST
Specifications
- Drive Type
- Bipolar Driver
- Number of H-bridges
- 2
- Technology
- Yes
- Interface
- Parallel
- Operating Temperature
- -25℃~+120℃
- Output Current
- 4A
- Control Voltage
- 4.5V~46V
- Motor Drive Voltage(Vm)
- 4.8V~46V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tube-packed
- Standard pack
- 25 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 8.163 g
Overview
The L298 is an integrated monolithic circuit in a 15- lead ZIP (Multiwatt) packages. It is a high voltage, high current dual full- bridge driver designed to accept standard TTL logic levels and drive inductive loads such as relays, solenoids, DC and stepping motors. Two enable inputs are provided to enable or disable the device independently of the input signals. The emitters of the lower transistors of each bridge are connected together and the corresponding external terminal can be used for the con- lower voltage.
Applications
- Vending machine
- Claw machine
- Coin counter
- Mechanical arm
- Dehydration motor, air conditioning drive
Key features
- Low saturation voltage
- Operating supply voltage up to 46V
- Total DC current up to 4A
- Logical "0" input voltage up to 1.5V (high noise immunity)
- Logic power supply and drive power supply are independent of each other
