STDatasheet (PDF)

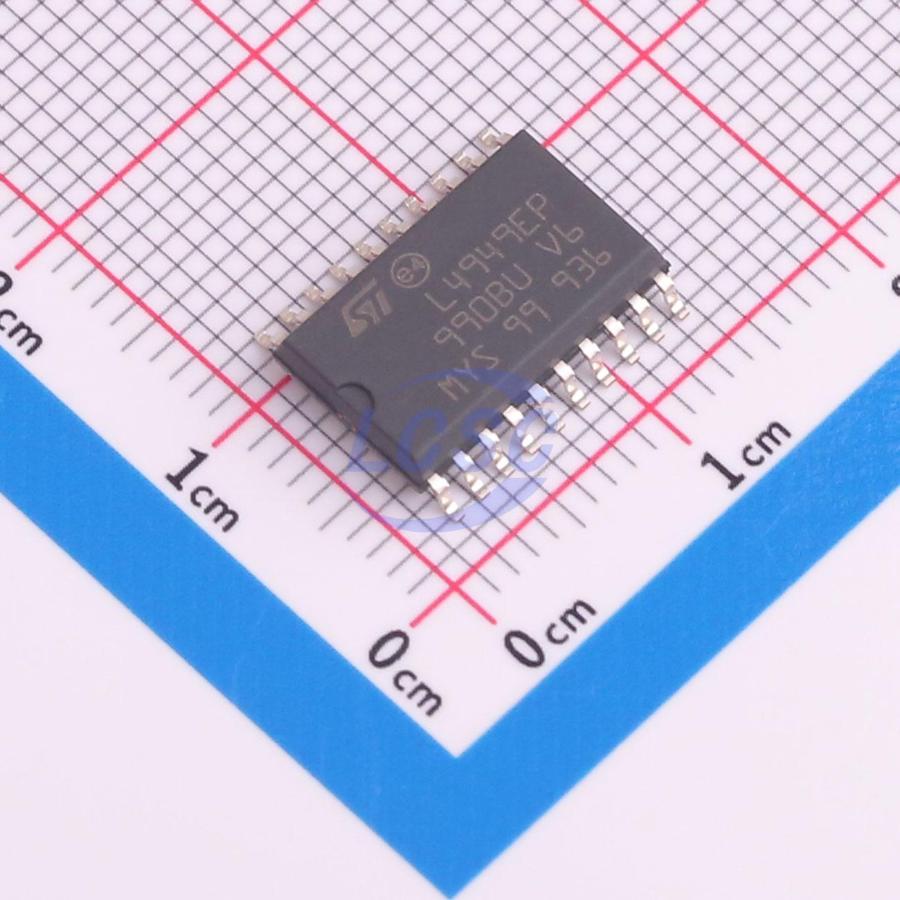

L4949EP-E
5V Positive Fixed SO-20 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SO-20ROHS CompliantActive
Multifunctional Ultra-Low Dropout Regulator
- Manufacturer
- ST
- Manufacturer part #
- L4949EP-E
- Store part #
- C5269618
- Package / case
- SO-20
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
22 in stock
#C5269618
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹296.26 | ₹296.26 |
| 10+ | ₹248.38 | ₹2,483.80 |
| 30+ | ₹218.55 | ₹6,556.50 |
| 90+ | ₹187.85 | ₹16,906.50 |
| 510+ | ₹174.11 | ₹88,796.10 |
| 990+ | ₹168.10 | ₹1,66,419.00 |
1 × ₹296.26
₹296.26
excl. GST
₹349.59 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 30 per tube
L4949EP-E
₹296.26 for 1 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+150℃@(Tj)
- Supply Current (Iq)
- 5mA
- Output Configuration
- Positive
- Output Current
- 100mA
- Operating Voltage
- 28V
- Output Type
- Fixed
- Features
- Reset function;Thermal shutdown;Short Circuit Protection
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 30 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.6 g
Overview
The L4949ED-E and L4949EP-E are monolithic integrated 5V voltage regulators with a very low dropout output and additional functions as poweron reset and input voltage sense. They are designed for supplying the microcomputer controlled systems especially in automotive applications.
Key features
- AEC-Q100 qualified
- ECOPACK: lead free and RoHS compliant
- Operating DC supply voltage range 5 - 28 V
- Transient supply voltage up to 40 V
- Extremely low quiescent current in standby
- High precision standby output voltage 5V ±1%
- Output current capability up to 100 mA
- Very low dropout voltage less than 0.5 V
- Reset circuit sensing the output voltage
- Programmable reset pulse delay with external capacitor
- Voltage sense comparator
- Thermal shutdown and short circuit protections
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TLE4263G#C539679Infineon · DSO-20 | Infineon | DSO-20 | 500 | ₹394.12 · 500 in stock | View |
| L4989MD013TR#C3743757ST · SO-20 | ST | SO-20 | On request | ₹183.47 · 0 in stock | View | |
| NCV4269ADW50R2G#C899934onsemi · SOIC-20 | onsemi | SOIC-20 | On request | ₹136.12 · 0 in stock | View | |
