STDatasheet (PDF)

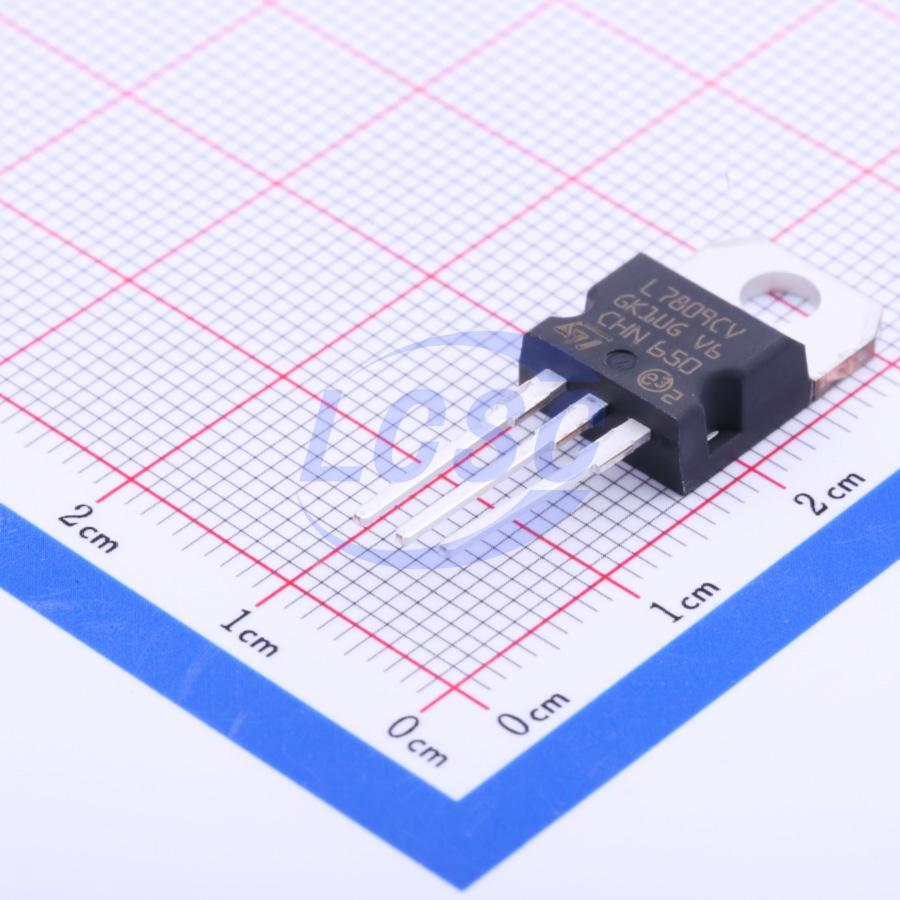

L7809CV-DG
9V Positive Fixed TO-220 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-220ROHS3 CompliantActive
Positive Voltage Regulator IC
- Manufacturer
- ST
- Manufacturer part #
- L7809CV-DG
- Store part #
- C3794
- Package / case
- TO-220
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,493 in stock
#C3794
Stock & price checked 28 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹170.75 | ₹170.75 |
| 10+ | ₹145.15 | ₹1,451.50 |
| 50+ | ₹127.14 | ₹6,357.00 |
| 100+ | ₹114.35 | ₹11,435.00 |
| 500+ | ₹106.75 | ₹53,375.00 |
| 1,200+ | ₹102.84 | ₹1,23,408.00 |
1 × ₹170.75
₹170.75
excl. GST
₹201.49 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 50 per tube
L7809CV-DG
₹170.75 for 1 + GST
Specifications
- Output Voltage
- 9V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃@(Tj)
- Supply Current (Iq)
- 8mA
- Output Configuration
- Positive
- Operating Voltage
- 35V
- Output Current
- 1.5A
- Features
- Thermal shutdown;Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.74 g
Overview
The L78 series of three-terminal positive regulators is available in TO-220, TO-220FP, D²PAK and DPAK packages and several fixed output voltages, making it useful in a wide range of applications. These regulators can provide local on-card regulation, eliminating the distribution problems associated with single point regulation. Each type embeds internal current limiting, thermal shutdown and safe area protection, making it essentially indestructible. If adequate heat sinking is provided, they can deliver over 1 A output current. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain adjustable voltage and currents.
Key features
- Output current up to 1.5 A
- Output voltages of 5; 6; 8; 8.5; 9; 12; 15; 18; 24 V
- Thermal overload protection
- Short circuit protection
- Output transition SOA protection
- 2% output voltage tolerance (A version)
- Guaranteed in extended temperature range (A version)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | L7809CV#C8091ST · TO-220 | ST | TO-220 | 322 | ₹183.18 · 322 in stock | View |
 | L7809 TO-220#C54430187KTP · TO-220 | KTP | TO-220 | 610 | ₹27.84 · 610 in stock | View |
 | L7809#C2843719PUOLOP · TO-220 | PUOLOP | TO-220 | 70 | ₹33.56 · 70 in stock | View |
 | LM7809CTG#C49451910HANSCHIP semiconductor · TO-220-3 | HANSCHIP semiconductor | TO-220-3 | 860 | ₹28.05 · 860 in stock | View |
 | L7809CVAT#C52204776GREENMICRO · TO-220-3 | GREENMICRO | TO-220-3 | 1,815 | ₹21.38 · 1,815 in stock | View |
