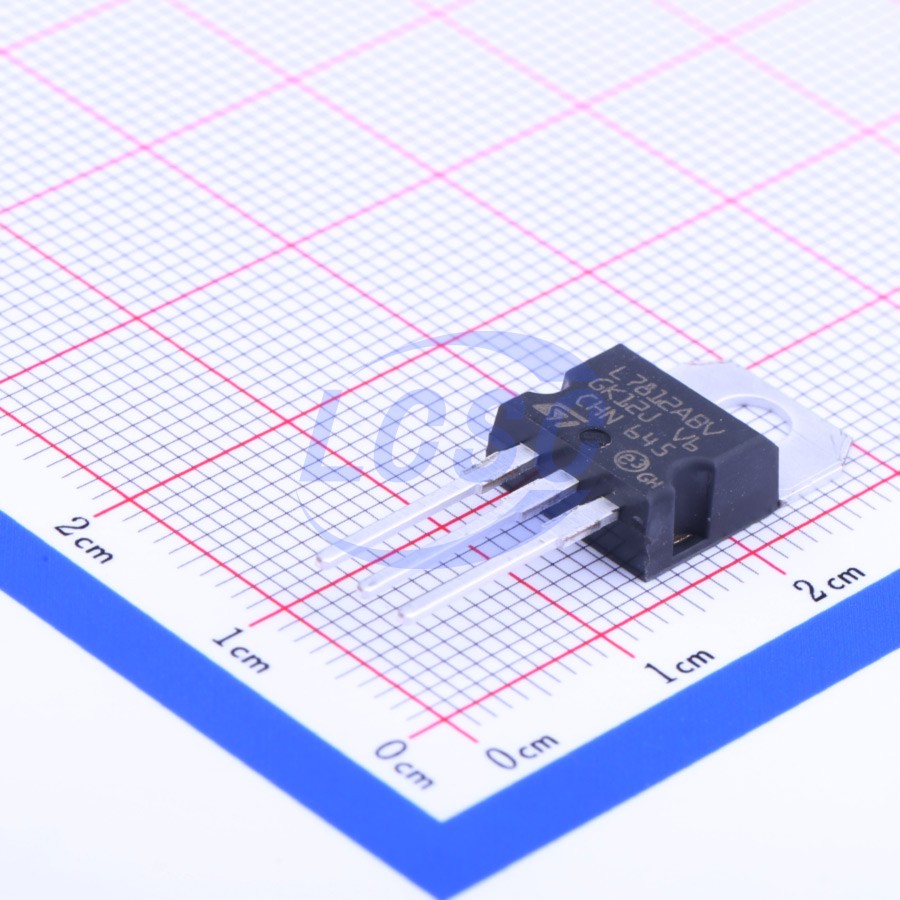

L7812ABV
12V Positive Fixed TO-220 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-220ROHS3 CompliantActive
Positive Voltage Regulator IC
- Manufacturer
- ST
- Manufacturer part #
- L7812ABV
- Store part #
- C29119
- Package / case
- TO-220
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,225 in stock
#C29119
Stock & price checked 19 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹44.25 | ₹221.25 |
| 50+ | ₹35.19 | ₹1,759.50 |
| 150+ | ₹31.32 | ₹4,698.00 |
| 500+ | ₹26.47 | ₹13,235.00 |
| 2,400+ | ₹24.32 | ₹58,368.00 |
| 4,800+ | ₹23.02 | ₹1,10,496.00 |
5 × ₹44.25
₹221.25
excl. GST
₹261.08 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 50 per tube
L7812ABV
₹221.25 for 5 + GST
Specifications
- Output Voltage
- 12V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 4.4mA
- Output Configuration
- Positive
- Operating Voltage
- 27V
- Output Current
- 1A
- Features
- Thermal shutdown;Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 2.74 g
Overview
The L7800A series of three-terminal positive regulators is available in TO-220 and ∂²PAK packages and several fixed output voltages, making it useful in a wide range of applications. These regulators can provide local on-card regulation, eliminating the distribution problems associated with single point regulation. Each type employs internal current limiting, thermal shut-down and safe area protection, making it essentially indestructible. If adequate heat sinking is provided, they can deliver over 1A output current. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain adjustable voltages and currents.
Key features
- OUTPUT CURRENT IN EXCESS OF 1 A
- OUTPUT VOLTAGES OF 5; 6; 8; 9; 12; 15; 18; 20; 24V
- THERMAL OVERLOAD PROTECTION
- OUTPUT TRANSITION SOA PROTECTION
- 2% OUTPUT VOLTAGE TOLERANCE GUARANTEED IN EXTENDED TEMPERATURE RANGE
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MC7812BTG#C45387onsemi · TO-220AB | onsemi | TO-220AB | 3,551 | ₹72.65 · 3,551 in stock | View |
 | AS7812AT-E1#C507894DIODES · TO-220 | DIODES | TO-220 | 80 | ₹48.86 · 80 in stock | View |
 | L7812CV-HXY#C7469130HXY MOSFET · TO-220 | HXY MOSFET | TO-220 | 45 | ₹33.37 · 45 in stock | View |
 | CJ7812#C77894JSCJ · TO-220-3L | JSCJ | TO-220-3L | 780 | ₹37.94 · 780 in stock | View |
 | MC7812CTG#C81392onsemi · TO-220 | onsemi | TO-220 | 7,284 | ₹35.64 · 7,284 in stock | View |
