STDatasheet (PDF)

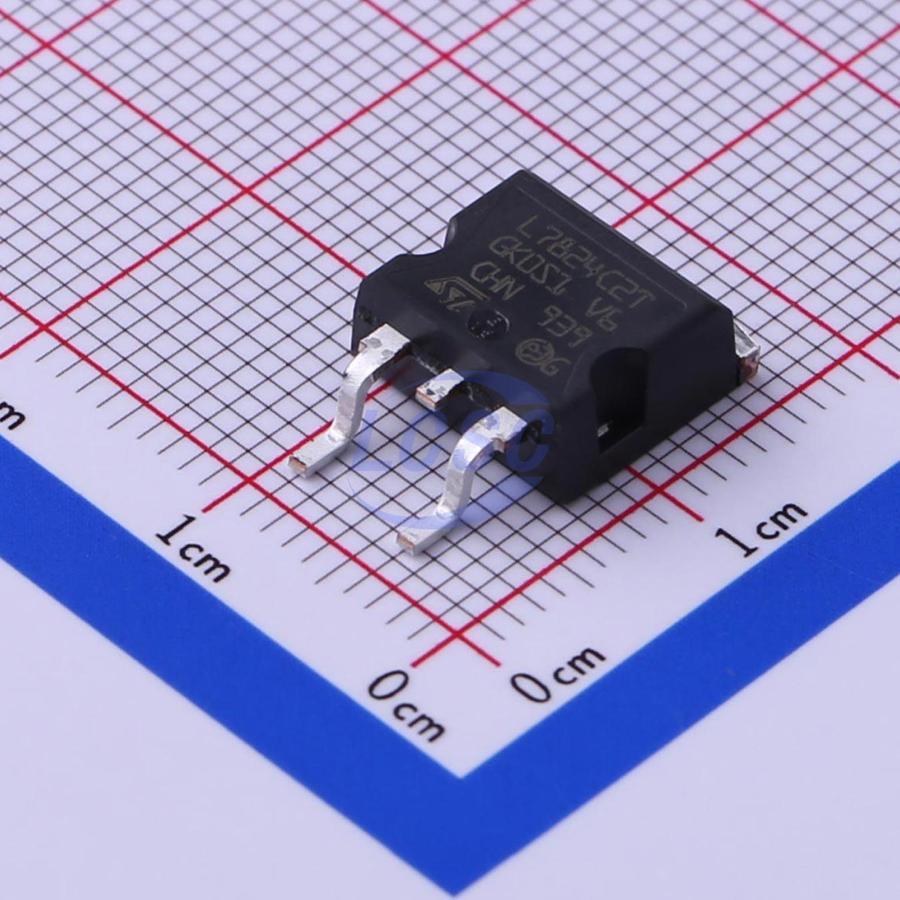

L7824CD2T-TR
24V Positive Fixed D2PAK Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
D2PAKROHS3 CompliantActive
Positive Voltage Regulator IC
- Manufacturer
- ST
- Manufacturer part #
- L7824CD2T-TR
- Store part #
- C435898
- Package / case
- D2PAK
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10,794 in stock
#C435898
Stock & price checked 31 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹76.92 | ₹76.92 |
| 10+ | ₹61.27 | ₹612.70 |
| 30+ | ₹53.45 | ₹1,603.50 |
| 100+ | ₹45.63 | ₹4,563.00 |
| 500+ | ₹41.07 | ₹20,535.00 |
| 1,000+ | ₹38.67 | ₹38,670.00 |
1 × ₹76.92
₹76.92
excl. GST
₹90.77 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
L7824CD2T-TR
₹76.92 for 1 + GST
Specifications
- Output Voltage
- 24V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃@(Tj)
- Output Configuration
- Positive
- Operating Voltage
- 40V
- Output Current
- 1.5A
- Features
- Thermal shutdown;Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.945 g
Overview
The L78 series of three-terminal positive regulators is available in TO-220, TO-220FP, D²PAK and DPAK packages and several fixed output voltages, making it useful in a wide range of applications. These regulators can provide local on-card regulation, eliminating the distribution problems associated with single point regulation. Each type embeds internal current limiting, thermal shut-down and safe area protection, making it essentially indestructible. If adequate heat sinking is provided, they can deliver over 1 A output current. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain adjustable voltage and currents.
Key features
- Output current up to 1.5 A
- Output voltages of 5; 6; 8; 8.5; 9; 12; 15; 18; 24 V
- Thermal overload protection
- Short circuit protection
- Output transition SOA protection
- 2% output voltage tolerance (A version)
- Guaranteed in extended temperature range (A version)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | UA7824CKTTR#C2871179TI · DDPAK-3(TO-263-3) | TI | DDPAK-3(TO-263-3) | 10 | ₹254.52 · 10 in stock | View |
 | LM7824D2TRG#C5145277HANSCHIP semiconductor · TO-263-2L | HANSCHIP semiconductor | TO-263-2L | 855 | ₹41.05 · 855 in stock | View |
