STDatasheet (PDF)

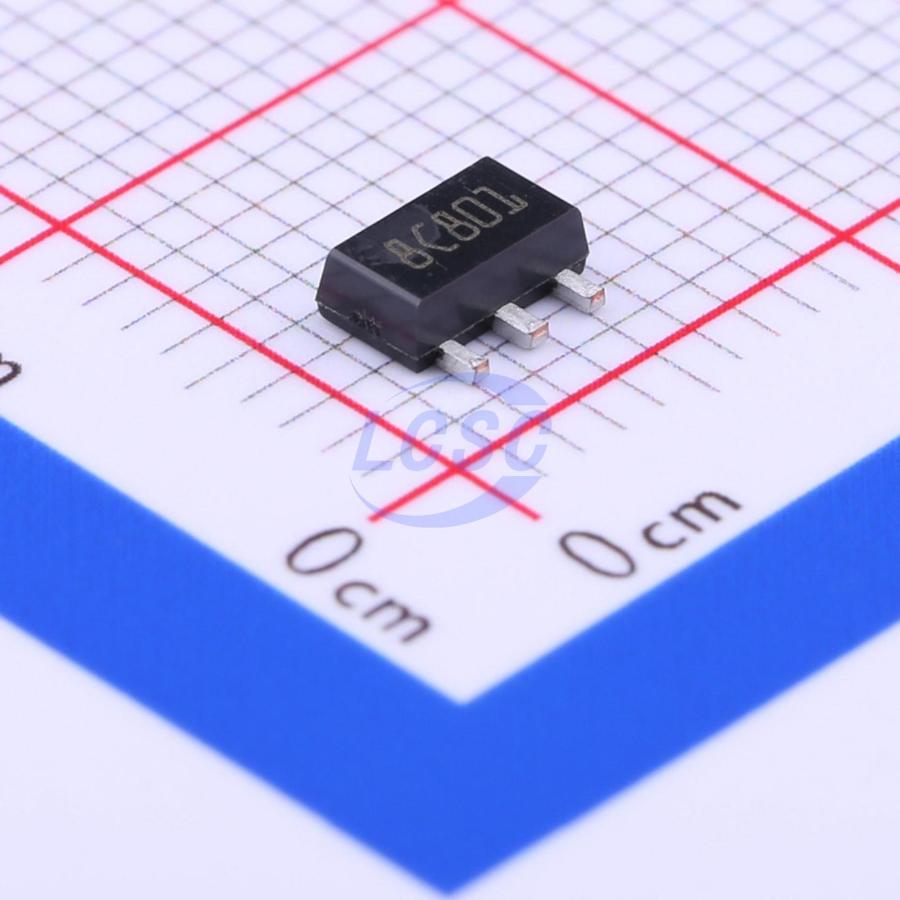

L78L05ACUTR
5V Positive Fixed SOT-89-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-89-3ROHS3 CompliantActive
0.1A Positive Voltage Regulator
- Manufacturer
- ST
- Manufacturer part #
- L78L05ACUTR
- Store part #
- C43116
- Package / case
- SOT-89-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20,535 in stock
#C43116
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.65 | ₹68.25 |
| 50+ | ₹10.80 | ₹540.00 |
| 150+ | ₹9.37 | ₹1,405.50 |
| 500+ | ₹8.31 | ₹4,155.00 |
| 2,500+ | ₹7.45 | ₹18,625.00 |
| 5,000+ | ₹7.03 | ₹35,150.00 |
5 × ₹13.65
₹68.25
excl. GST
₹80.54 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
L78L05ACUTR
₹68.25 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃@(Tj)
- Supply Current (Iq)
- 6mA
- Output Configuration
- Positive
- Operating Voltage
- 20V
- Output Current
- 100mA
- Features
- Thermal shutdown;Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.257 g
Overview
The L78L series of three-terminal positive regulators employ internal current limiting and thermal shutdown, making them essentially indestructible. If adequate heat-sink is provided, they can deliver up to 100 mA output current. They are intended as fixed voltage regulators in a wide range of applications including local or oncard regulation for elimination of noise and distribution problems associated with single-point regulation. In addition, they can be used with power pass elements to make high-current voltage regulators. The L78L series used as Zener diode/resistor combination replacement, offers e improvement along with lower quiescent current and lower noise.
Key features
- Output current up to 100 mA
- Output voltages of 3.3; 5; 6; 8; 9; 10; 12; 15; 18; 24 V
- Thermal overload protection
- Short-circuit protection
- No external components are required
- Available in either ± 4% (A) or ± 8% (C) selection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM78L05MK/TR#C2926384HGSEMI · SOT-89 | HGSEMI | SOT-89 | 560 | ₹6.23 · 560 in stock | View |
 | LM78L05ACMK/TR#C7432178HGSEMI · SOT-89 | HGSEMI | SOT-89 | 1,000 | ₹5.98 · 1,000 in stock | View |
 | MC78L05ACHT1G#C904222onsemi · SOT-89 | onsemi | SOT-89 | 7,525 | ₹38.62 · 7,525 in stock | View |
 | DI78L05UAB#C3745956DIOTEC · SOT-89 | DIOTEC | SOT-89 | 5 | ₹39.98 · 5 in stock | View |
 | 78L05#C3025155GOODWORK · SOT-89 | GOODWORK | SOT-89 | 1,49,820 | ₹5.15 · 1,49,820 in stock | View |
