STDatasheet (PDF)

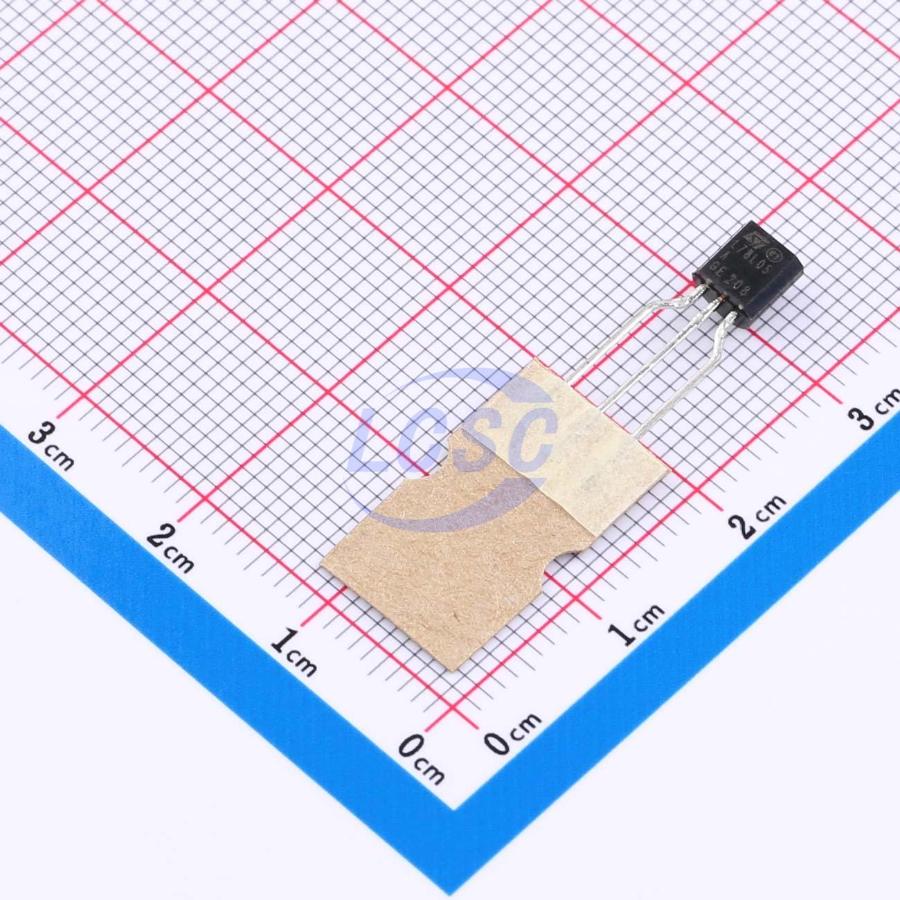

L78L05ACZTR
5V Positive Fixed TO-92-2.54mm Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-92-2.54mmROHS3 CompliantActive
0.1A Positive Voltage Regulator
- Manufacturer
- ST
- Manufacturer part #
- L78L05ACZTR
- Store part #
- C118270
- Package / case
- TO-92-2.54mm
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
22,940 in stock
#C118270
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.61 | ₹86.10 |
| 100+ | ₹6.73 | ₹673.00 |
| 300+ | ₹5.79 | ₹1,737.00 |
| 2,000+ | ₹5.09 | ₹10,180.00 |
| 4,000+ | ₹4.52 | ₹18,080.00 |
| 10,000+ | ₹4.25 | ₹42,500.00 |
10 × ₹8.61
₹86.10
excl. GST
₹101.60 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
L78L05ACZTR
₹86.10 for 10 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃@(Tj)
- Supply Current (Iq)
- 6mA
- Output Configuration
- Positive
- Operating Voltage
- 20V
- Output Current
- 100mA
- Features
- Thermal shutdown;Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.553 g
Overview
The L78L series of three-terminal positive regulators employ internal current limiting and thermal shutdown, making them essentially indestructible. If adequate heat-sink is provided, they can deliver up to 100 mA output current. They are intended as fixed voltage regulators in a wide range of applications including local or oncard regulation for elimination of noise and distribution problems associated with single-point regulation. In addition, they can be used with power pass elements to make high-current voltage regulators. The L78L series used as Zener diode/resistor combination replacement, offers e improvement along with lower quiescent current and lower noise.
Key features
- Output current up to 100 mA
- Output voltages of 3.3; 5; 6; 8; 9; 10; 12; 15; 18; 24 V
- Thermal overload protection
- Short-circuit protection
- No external components are required
- Available in either ± 4% (A) or ± 8% (C) selection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | L78L05ACZ#C57900ST · TO-92-3 | ST | TO-92-3 | 13,905 | ₹13.80 · 13,905 in stock | View |
 | MC78L05ACPRPG#C35875onsemi · TO-92-2.54mm | onsemi | TO-92-2.54mm | 1,665 | ₹31.50 · 1,665 in stock | View |
 | L78L05ABZ-TR#C67538ST · TO-92-2.54mm | ST | TO-92-2.54mm | 4,595 | ₹29.74 · 4,595 in stock | View |
 | MC78L05ABPRAG#C233395onsemi · TO-92-2.54mm | onsemi | TO-92-2.54mm | 40 | ₹85.19 · 40 in stock | View |
 | 78L05#C156437Mixic · TO-92-2.54mm | Mixic | TO-92-2.54mm | 2,350 | ₹9.53 · 2,350 in stock | View |
