STDatasheet (PDF)

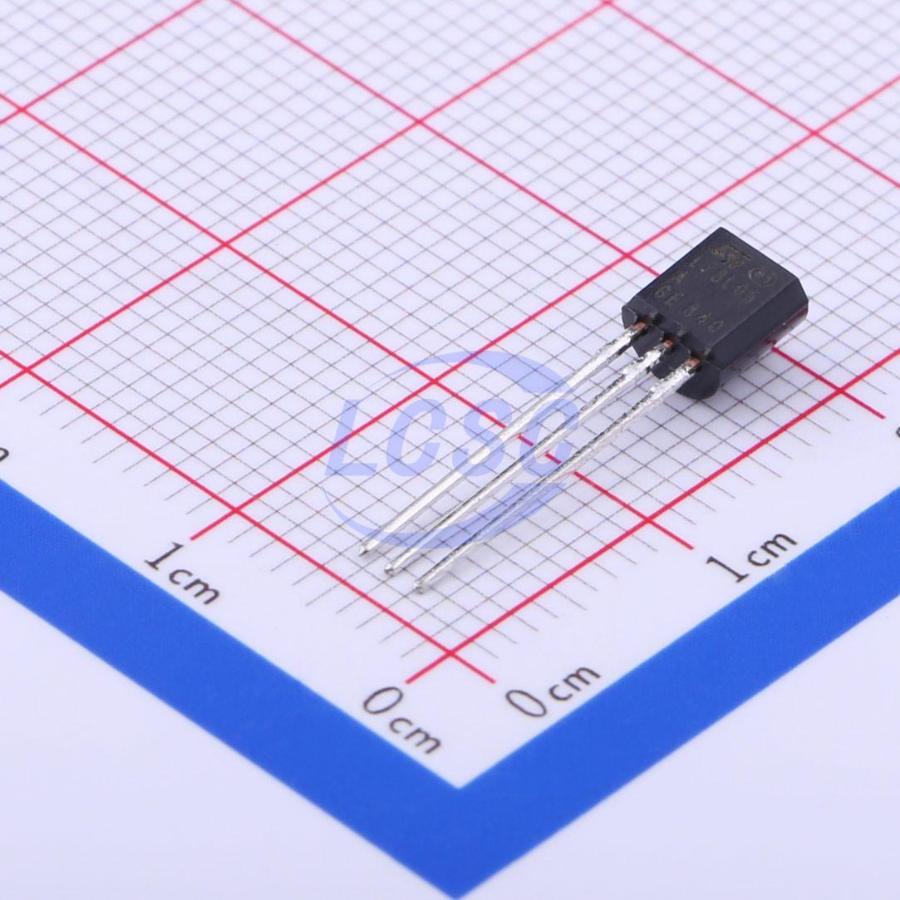

L78L05ACZ
5V Positive Fixed TO-92-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-92-3ROHS3 CompliantActive
0.1A Positive Voltage Regulator
- Manufacturer
- ST
- Manufacturer part #
- L78L05ACZ
- Store part #
- C57900
- Package / case
- TO-92-3
- Packaging
- Box-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
13,905 in stock
#C57900
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.80 | ₹69.00 |
| 50+ | ₹10.82 | ₹541.00 |
| 150+ | ₹9.34 | ₹1,401.00 |
| 500+ | ₹8.22 | ₹4,110.00 |
| 2,500+ | ₹7.33 | ₹18,325.00 |
| 5,000+ | ₹6.88 | ₹34,400.00 |
5 × ₹13.80
₹69.00
excl. GST
₹81.42 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per box
L78L05ACZ
₹69.00 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃@(Tj)
- Supply Current (Iq)
- 6mA
- Output Configuration
- Positive
- Operating Voltage
- 30V
- Output Current
- 100mA
- Features
- Thermal shutdown;Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Box-packed
- Standard pack
- 2,500 / Box
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.258 g
Overview
The L78L series of three-terminal positive regulators employ internal current limiting and thermal shutdown, making them essentially indestructible. If adequate heat-sink is provided, they can deliver up to 100 mA output current. They are intended as fixed voltage regulators in a wide range of applications including local or oncard regulation for elimination of noise and distribution problems associated with single-point regulation. In addition, they can be used with power pass elements to make high-current voltage regulators. The L78L series used as Zener diode/resistor combination replacement, offers e improvement along with lower quiescent current and lower noise.
Key features
- Output current up to 100 mA
- Output voltages of 3.3; 5; 6; 8; 9; 10; 12; 15; 18; 24
- Thermal overload protection
- Short-circuit protection
- No external components are required
- Available in either ± 4% (A) or ± 8% (C) selection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | L78L05ACZTR#C118270ST · TO-92-2.54mm | ST | TO-92-2.54mm | 22,940 | ₹8.61 · 22,940 in stock | View |
 | L78L05ACZ-AP#C495222ST · TO-92-3 | ST | TO-92-3 | 3,995 | ₹22.05 · 3,995 in stock | View |
 | MC78L05ACPRMG#C903132onsemi · TO-92 | onsemi | TO-92 | 243 | ₹53.20 · 243 in stock | View |
 | L78L05CZ#C3024480ST · TO-92 | ST | TO-92 | 4,200 | ₹22.54 · 4,200 in stock | View |
 | 78L05L#C29780631UMW · TO-92 | UMW | TO-92 | 6,860 | ₹5.65 · 6,860 in stock | View |
