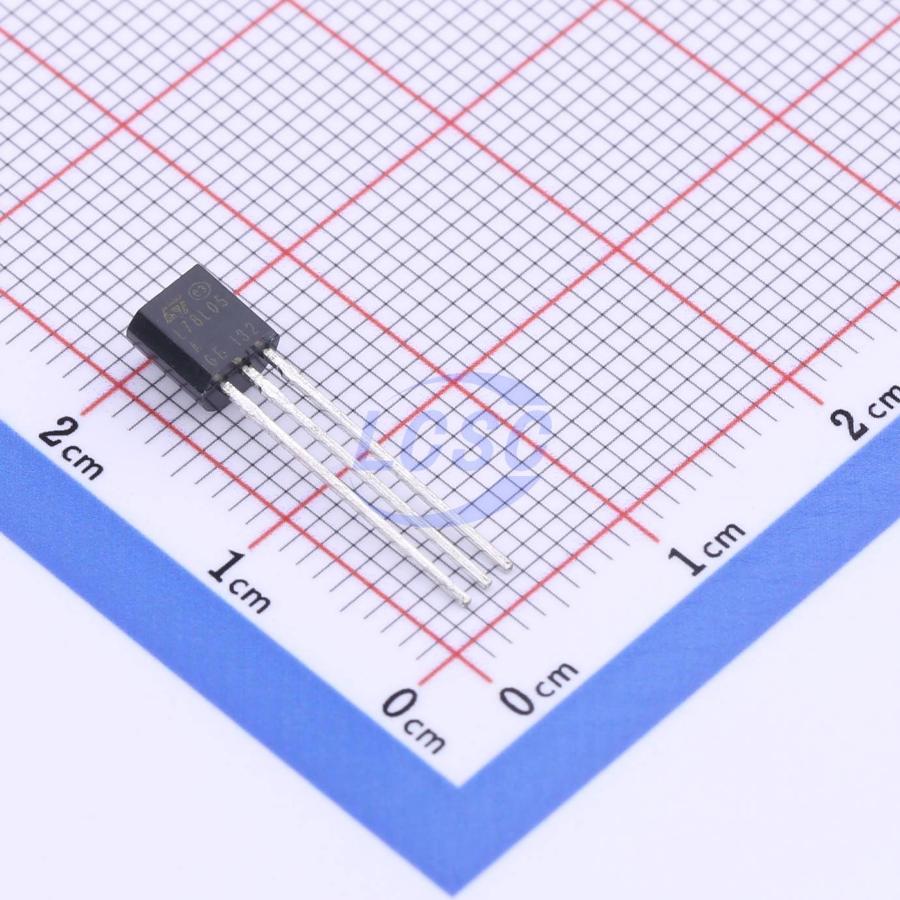

L78L05CZ
5V Positive Fixed TO-92 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-92ROHS3 CompliantActive
Positive voltage regulators
- Manufacturer
- ST
- Manufacturer part #
- L78L05CZ
- Store part #
- C3024480
- Package / case
- TO-92
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,200 in stock
#C3024480
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.54 | ₹112.70 |
| 50+ | ₹17.68 | ₹884.00 |
| 150+ | ₹15.58 | ₹2,337.00 |
| 500+ | ₹12.98 | ₹6,490.00 |
| 2,500+ | ₹11.81 | ₹29,525.00 |
| 5,000+ | ₹11.13 | ₹55,650.00 |
5 × ₹22.54
₹112.70
excl. GST
₹132.99 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per bag
L78L05CZ
₹112.70 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃@(Tj)
- Supply Current (Iq)
- 6mA
- Output Configuration
- Positive
- Output Current
- 100mA
- Operating Voltage
- 30V
- Output Type
- Fixed
- Features
- Thermal shutdown;Short Circuit Protection;Over Current Protection
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Bag-packed
- Standard pack
- 2,500 / Bag
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.24 g
Overview
The L78L series of three-terminal positive regulators employ internal current limiting and thermal shutdown, making them essentially indestructible. If adequate heat-sink is provided, they can deliver up to 100 mA output current. They are intended as fixed voltage regulators in a wide range of applications including local or oncard regulation for elimination of noise and distribution problems associated with single-point regulation. In addition, they can be used with power pass elements to make high-current voltage regulators. The L78L series used as Zener diode/resistor combination replacement, offers e improvement along with lower quiescent current and lower noise.
Key features
- Output current up to 100 mA
- Output voltages of 3.3; 5; 6; 8; 9; 10; 12; 15; 18; 24 V
- Thermal overload protection
- Short-circuit protection
- No external components are required
- Available in either ± 4% (A) or ± 8% (C) selection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | L78L05ACZ-AP#C495222ST · TO-92-3 | ST | TO-92-3 | 3,995 | ₹22.05 · 3,995 in stock | View |
 | L78L05ACZ#C57900ST · TO-92-3 | ST | TO-92-3 | 13,905 | ₹13.80 · 13,905 in stock | View |
| LM78L05ACZ/LFT4#C2868176TI · TO-92 | TI | TO-92 | 225 | ₹89.04 · 225 in stock | View | |
 | LM78L05ACZ/LFT1#C2869210TI · TO-92-3 | TI | TO-92-3 | 461 | ₹69.33 · 461 in stock | View |
 | MC78L05ACPRMG#C903132onsemi · TO-92 | onsemi | TO-92 | 243 | ₹53.20 · 243 in stock | View |
