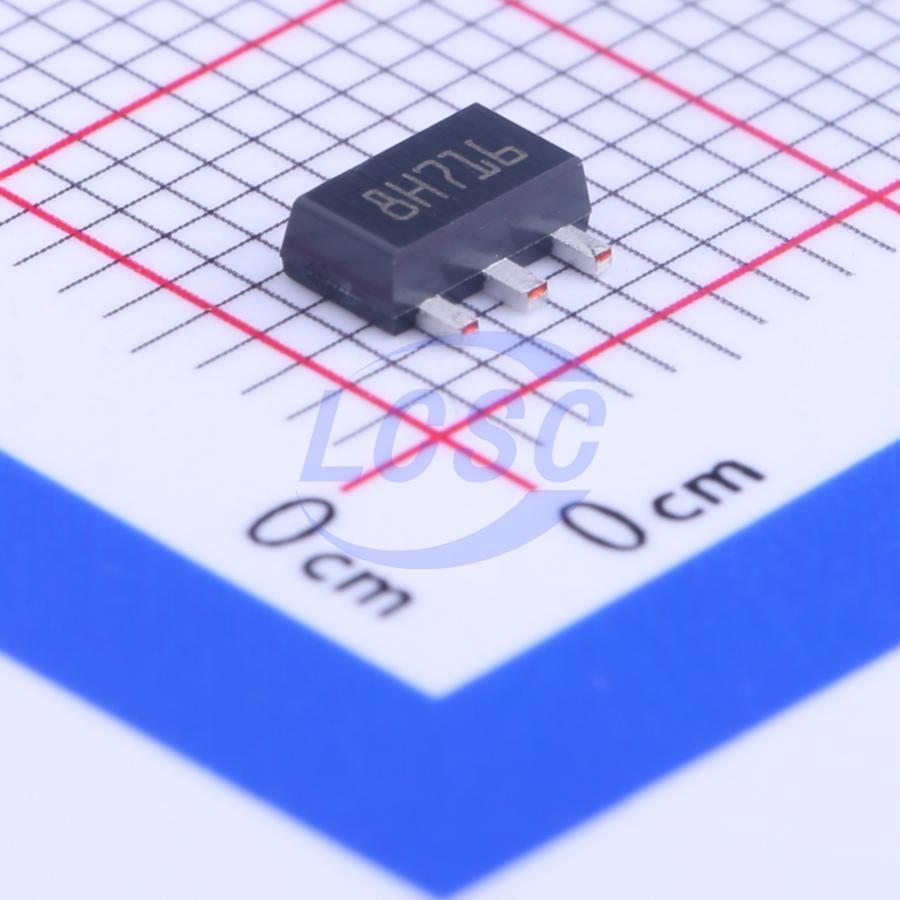

L78L09ABUTR
9V Positive Fixed SOT-89-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-89-3ROHS3 CompliantActive
0.1A Positive Voltage Regulator
- Manufacturer
- ST
- Manufacturer part #
- L78L09ABUTR
- Store part #
- C52103
- Package / case
- SOT-89-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,435 in stock
#C52103
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹21.27 | ₹106.35 |
| 50+ | ₹17.11 | ₹855.50 |
| 150+ | ₹15.03 | ₹2,254.50 |
| 500+ | ₹13.47 | ₹6,735.00 |
| 2,500+ | ₹12.21 | ₹30,525.00 |
| 5,000+ | ₹11.59 | ₹57,950.00 |
5 × ₹21.27
₹106.35
excl. GST
₹125.49 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
L78L09ABUTR
₹106.35 for 5 + GST
Specifications
- Output Voltage
- 9V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 6mA
- Output Configuration
- Positive
- Operating Voltage
- 30V
- Output Current
- 100mA
- Features
- Thermal shutdown;Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.253 g
Overview
The L78L series of three-terminal positive regulators employ internal current limiting and thermal shutdown, making them essentially indestructible. If adequate heat-sink is provided, they can deliver up to 100 mA output current. They are intended as fixed voltage regulators in a wide range of applications including local or oncard regulation for elimination of noise and distribution problems associated with single-point regulation. In addition, they can be used with power pass elements to make high-current voltage regulators. The L78L series used as Zener diode/resistor combination replacement, offers e improvement along with lower quiescent current and lower noise.
Key features
- Output current up to 100 mA
- Output voltages of 3.3; 5; 6; 8; 9; 10; 12; 15; 18; 24
- Thermal overload protection
- Short-circuit protection
- No external components are required
- Available in either ± 4% (A) or ± 8% (C) selection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 78L09#C42387180KUU · SOT-89 | KUU | SOT-89 | 4,890 | ₹6.23 · 4,890 in stock | View |
 | 78L09T#C358373BLUE ROCKET · SOT-89 | BLUE ROCKET | SOT-89 | 2,740 | ₹9.87 · 2,740 in stock | View |
 | L78L09ACUTR#C377943ST · SOT-89 | ST | SOT-89 | 935 | ₹17.23 · 935 in stock | View |
 | PJ78L09SQ#C2987901PJSEMI · SOT-89 | PJSEMI | SOT-89 | 2,390 | ₹8.22 · 2,390 in stock | View |
 | SL78L09#C880736Slkor · SOT-89-3 | Slkor | SOT-89-3 | 1,470 | ₹8.36 · 1,470 in stock | View |
