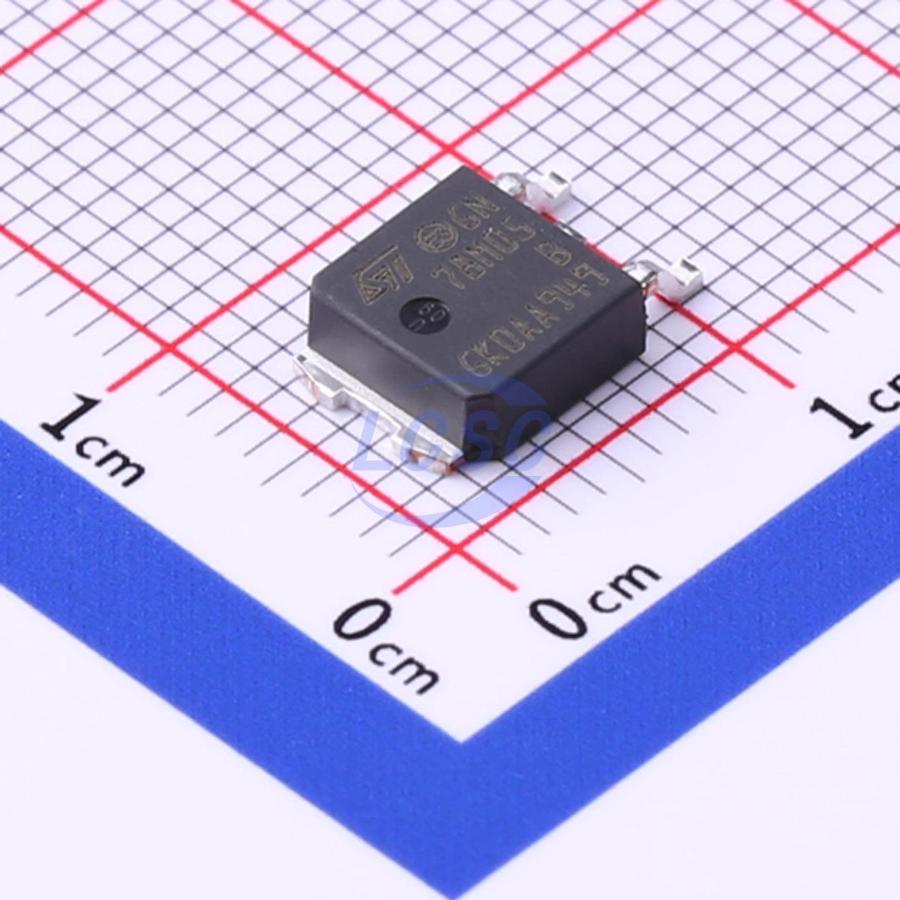

L78M05ABDT-TR
5V Positive Fixed TO-252-2(DPAK) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
PopularTO-252-2(DPAK)ROHS3 CompliantActive
Precision 500 mA Regulator
- Manufacturer
- ST
- Manufacturer part #
- L78M05ABDT-TR
- Store part #
- C58069
- Package / case
- TO-252-2(DPAK)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
97,040 in stock
#C58069
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹27.39 | ₹136.95 |
| 50+ | ₹21.25 | ₹1,062.50 |
| 150+ | ₹18.24 | ₹2,736.00 |
| 500+ | ₹15.57 | ₹7,785.00 |
| 2,500+ | ₹14.84 | ₹37,100.00 |
| 5,000+ | ₹14.39 | ₹71,950.00 |
5 × ₹27.39
₹136.95
excl. GST
₹161.60 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
L78M05ABDT-TR
₹136.95 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 6mA
- Output Configuration
- Positive
- Output Current
- 500mA
- Operating Voltage
- 35V
- Features
- Thermal shutdown;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.523 g
Overview
The L78M series of three-terminal positive regulators is available in TO-220, TO-220FP, DPAK and IPAK packages and with several fixed output voltages, making it useful in a wide range of applications. These regulators can provide local on-card regulation, eliminating the distribution problems associated with single point regulation. Each type employs internal current limiting, thermal shutdown and safe area protection, resulting it essentially indestructible. If adequate heat sinking is provided, they can deliver over 0.5 A output current. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain adjustable voltage and currents.
Key features
- Output current to 0.5 A
- Output voltages of 5; 6; 8; 9; 10; 12; 15; 24 V
- Thermal overload protection
- Short circuit protection
- Output transition SOA protection
- Output voltage tolerance: 2% (AB and AC versions) or 4% (C version)
- Guaranteed in extended temperature range
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 78M05#C6718423DOWO · TO-252 | DOWO | TO-252 | 1,495 | ₹16.13 · 1,495 in stock | View |
 | 78M05#C2992579GUOXIN JIAPIN SEMICONDUCTOR · TO-252-2 | GUOXIN JIAPIN SEMICONDUCTOR | TO-252-2 | 1,545 | ₹12.58 · 1,545 in stock | View |
 | LM78M05CDT/TR#C725343HGSEMI · TO-252-2L | HGSEMI | TO-252-2L | 7,760 | ₹15.89 · 7,760 in stock | View |
 | SK78M05#C5120332Suntek · TO-252 | Suntek | TO-252 | 909 | ₹34.13 · 909 in stock | View |
 | GN78M05A#C427453GN Semic · TO-252-2 | GN Semic | TO-252-2 | 1,330 | ₹17.11 · 1,330 in stock | View |
