STDatasheet (PDF)

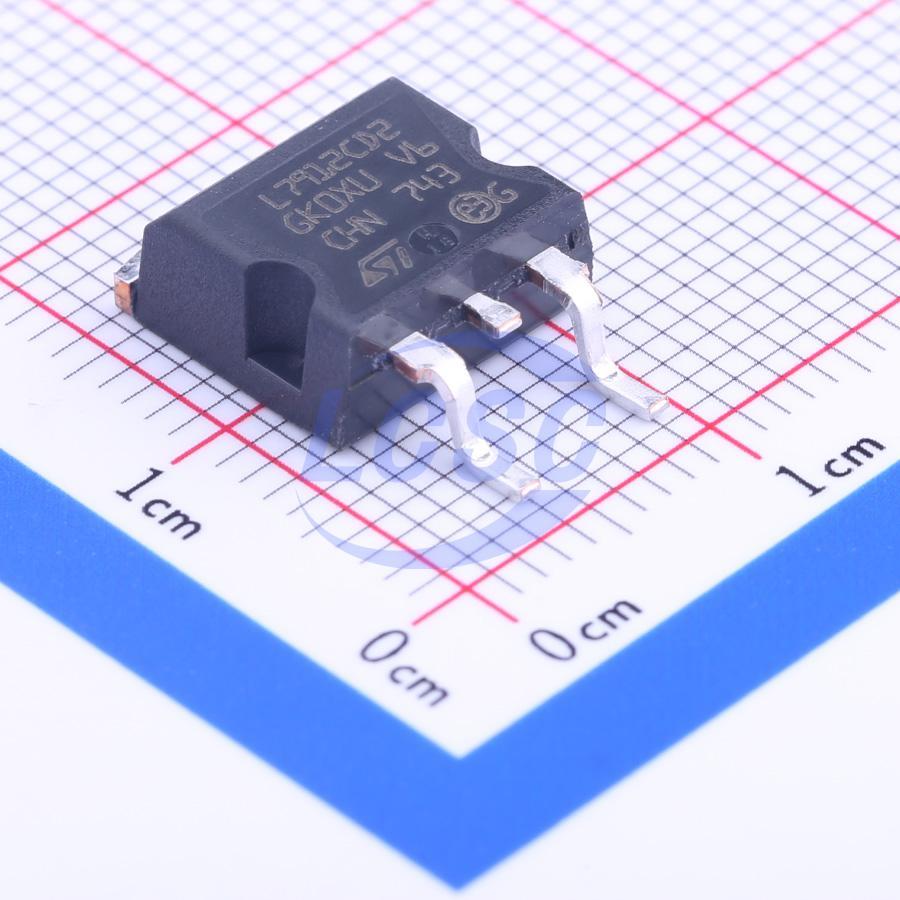

L7912CD2T-TR
12V Negative Fixed TO-263-2 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-263-2ROHS3 CompliantActive
Negative Voltage Regulator
- Manufacturer
- ST
- Manufacturer part #
- L7912CD2T-TR
- Store part #
- C57134
- Package / case
- TO-263-2
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,775 in stock
#C57134
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹116.68 | ₹116.68 |
| 10+ | ₹94.08 | ₹940.80 |
| 30+ | ₹82.78 | ₹2,483.40 |
| 100+ | ₹71.48 | ₹7,148.00 |
| 500+ | ₹59.97 | ₹29,985.00 |
| 1,000+ | ₹56.49 | ₹56,490.00 |
1 × ₹116.68
₹116.68
excl. GST
₹137.68 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
L7912CD2T-TR
₹116.68 for 1 + GST
Specifications
- Output Voltage
- 12V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+150℃@(Tj)
- Supply Current (Iq)
- 3mA
- Output Configuration
- Negative
- Operating Voltage
- 35V
- Output Current
- 1.5A
- Features
- Thermal shutdown;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.915 g
Overview
The L79 series of three-terminal negative regulators is available in TO-220, TO-220FP and D²PAK packages and several fixed output voltages, making it useful in a wide range of applications. These regulators can provide local on-card regulation, eliminating the distribution problems associated with single point regulation; furthermore, having the same voltage option as the L78 positive standard series, they are particularly suited for split power supplies. If adequate heat sinking is provided, they can deliver over 1.5 A output current. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain adjustable voltages and currents.
Key features
- Output current up to 1.5 A
- Output voltages of - 5; - 8; - 12; - 15 V
- Thermal overload protection
- Short circuit protection
- Output transition SOA protection
- Output tolerance 2% (AC version) or 4% (C version) at 25°C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | L7912CD2TKT#C52204662GREENMICRO · TO-263-2 | GREENMICRO | TO-263-2 | 345 | ₹34.81 · 345 in stock | View |
 | LM2990SX-12/NOPB#C181451TI · DDPAK-3(TO-263-3) | TI | DDPAK-3(TO-263-3) | 2 | ₹606.89 · 2 in stock | View |
