STDatasheet (PDF)

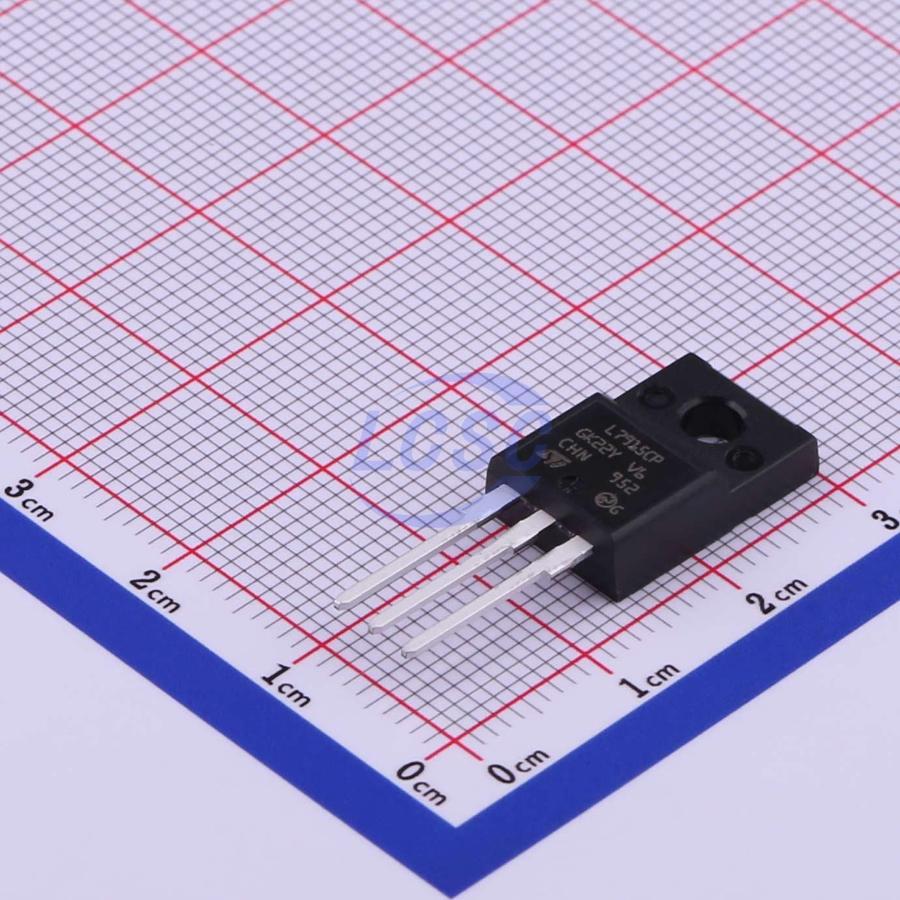

L7915CP
15V Negative Fixed TO-220FP Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-220FPROHS3 CompliantActive
Negative Voltage Regulator
- Manufacturer
- ST
- Manufacturer part #
- L7915CP
- Store part #
- C495223
- Package / case
- TO-220FP
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
470 in stock
#C495223
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹92.15 | ₹92.15 |
| 10+ | ₹73.94 | ₹739.40 |
| 30+ | ₹65.05 | ₹1,951.50 |
| 100+ | ₹55.95 | ₹5,595.00 |
| 500+ | ₹50.53 | ₹25,265.00 |
| 1,000+ | ₹47.71 | ₹47,710.00 |
1 × ₹92.15
₹92.15
excl. GST
₹108.74 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
L7915CP
₹92.15 for 1 + GST
Specifications
- Output Voltage
- 15V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+150℃@(Tj)
- Supply Current (Iq)
- 3mA
- Output Configuration
- Negative
- Operating Voltage
- 35V
- Output Current
- 1.5A
- Features
- Thermal shutdown;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.4 g
Overview
The L79xxC series of three-terminal negative regulators is available in TO-220, TO-220FP and D²PAK packages and several fixed output voltages, making it useful in a wide range of applications. These regulators can provide local on-card regulation, eliminating the distribution problems associated with single point regulation; furthermore, having the same voltage option as the L78xx positive standard series, they are particularly suited for split power supplies. If adequate heat sinking is provided, they can deliver over 1.5 A output current. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain adjustable voltages and currents.
Key features
- Output current up to 1.5 A
- Output voltages of - 5; - 8; - 12; - 15 V
- Thermal overload protection
- Short circuit protection
- Output transition SOA protection
