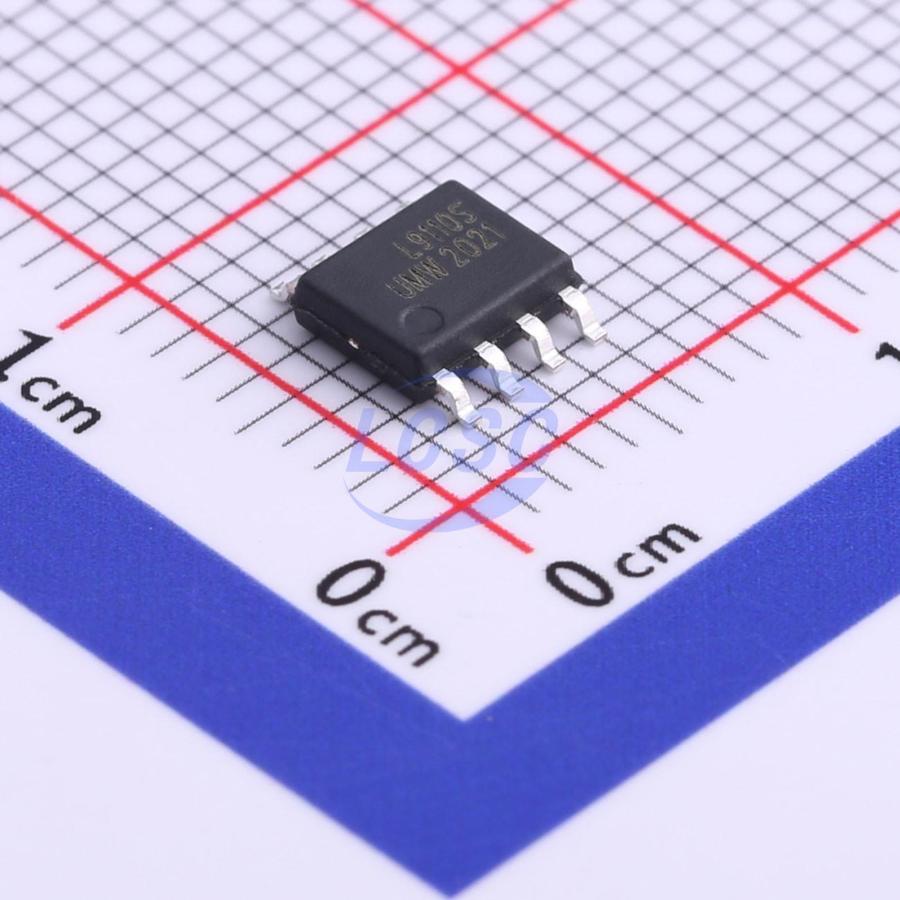

L9110S
SOP-8 Motor Drivers, Controllers RoHS
Motor control driver IC
- Manufacturer
- UMW
- Manufacturer part #
- L9110S
- Store part #
- C725793
- Package / case
- SOP-8
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
16,255 in stock
#C725793
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.91 | ₹94.55 |
| 50+ | ₹14.61 | ₹730.50 |
| 150+ | ₹12.45 | ₹1,867.50 |
| 500+ | ₹10.84 | ₹5,420.00 |
| 2,500+ | ₹9.25 | ₹23,125.00 |
| 5,000+ | ₹8.60 | ₹43,000.00 |
5 × ₹18.91
₹94.55
excl. GST
₹111.57 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
L9110S
₹94.55 for 5 + GST
Specifications
- Drive Type
- Bipolar Driver
- Technology
- Yes
- Operating Temperature
- -30℃~+85℃
- Output Current
- 200mA
- Control Voltage
- 2.2V~6.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1.081 g
Overview
UMW L9110S is a dual-channel push-pull power amplifier ASIC designed for motor drive control. It integrates discrete circuitry into a single IC, reducing the number of peripheral components, lowering costs, and improving overall system reliability. The UMW L9110S features two input control pins capable of controlling two output pins to directly drive a motor in forward and reverse directions. This IC is widely used in circuits such as toy car motor drives, pulse solenoid valve drives, stepper motor drives, and switching power transistors.
Applications
- Pulse solenoid valve driving
- Toy car motor driving
- Stepper motor driving
- Switching power transistor driving
Key features
- Supply voltage range: 2.2~6.5V
- Low quiescent current
- Low saturation voltage drop
- Maximum operating current 200mA at VCC = 5V
- TTL/CMOS output level compatible, direct CPU I/O interface
- Minimal external components
- Package: DIP8, SOP8
