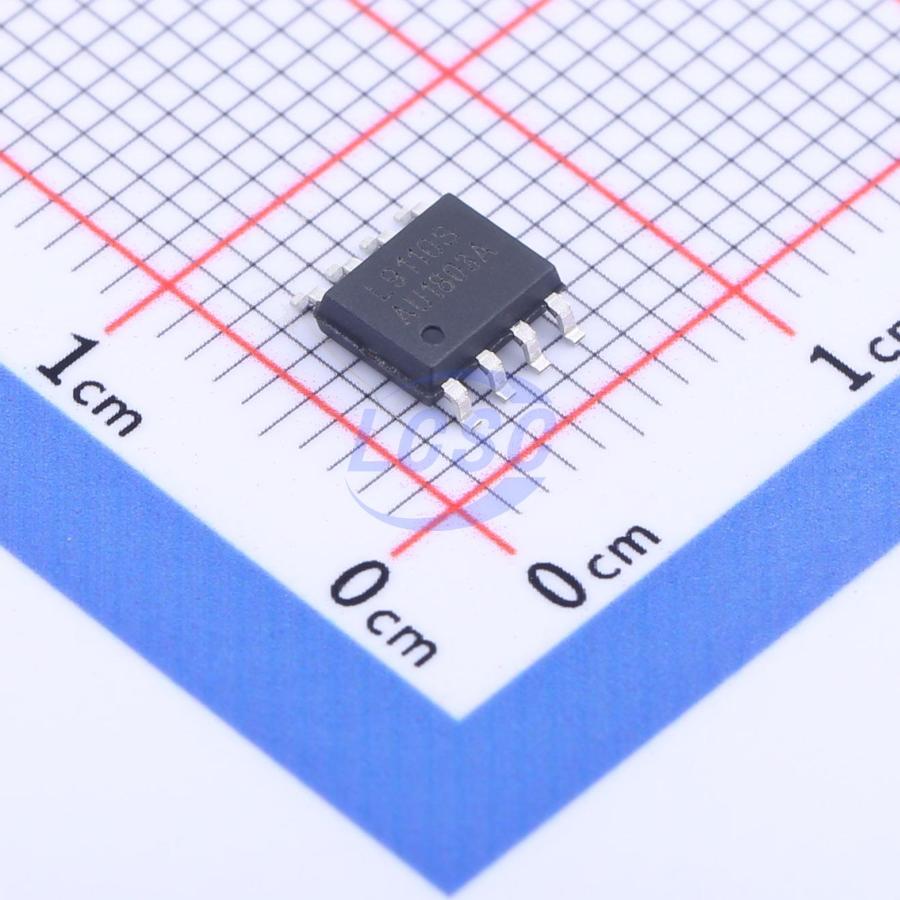

L9110SM/TR

The L9110S is a dual-channel push-pull power amplifier IC designed for motor control and drive applications. By integrating discrete circuits into a single-chip IC, it reduces peripheral component costs and improves overall system reliability. The chip's inputs are compatible with TTL/CMOS logic levels, offering good noise immunity. The two output channels can directly drive a motor in both forward and reverse directions with high current drive capability — each channel supports a continuous current of 800mA with a peak current capability of up to 1.5A. Built-in clamping diodes dissipate reverse surge currents from inductive loads, ensuring safe and reliable operation when driving relays, DC motors, stepper motors, or switching power transistors. An integrated thermal shutdown protection module monitors the chip's PN junction temperature and shuts down all circuit functions when the temperature exceeds the designed threshold. The L9110S is well-suited for a wide range of applications, including toy car motor drives, stepper motor drives, and switching power transistor circuits.

Applications

• Toy motor drive
• Combination locks, safes (motor control for combination locks)
• Water meters, gas meters
• Electric curtains
• Small home appliances

Key features

• Low quiescent current
• Wide supply voltage range: 2.3V~12V
• 800mA/CH continuous current output capability
• Low saturation voltage drop
• Three output states: forward, reverse, and high-impedance
• TTL/CMOS output level compatible, direct MCU I/O connection
• Built-in clamp diodes on outputs, suitable for inductive loads
• Integrated control and drive with pin high-voltage protection
• Integrated thermal shutdown protection module — shuts down all circuit functions when the chip PN junction temperature exceeds the design threshold
• Operating temperature range: -20℃~+85℃
• Available in SOP-8, DIP-8, and other package options
