MICROCHIPDatasheet (PDF)

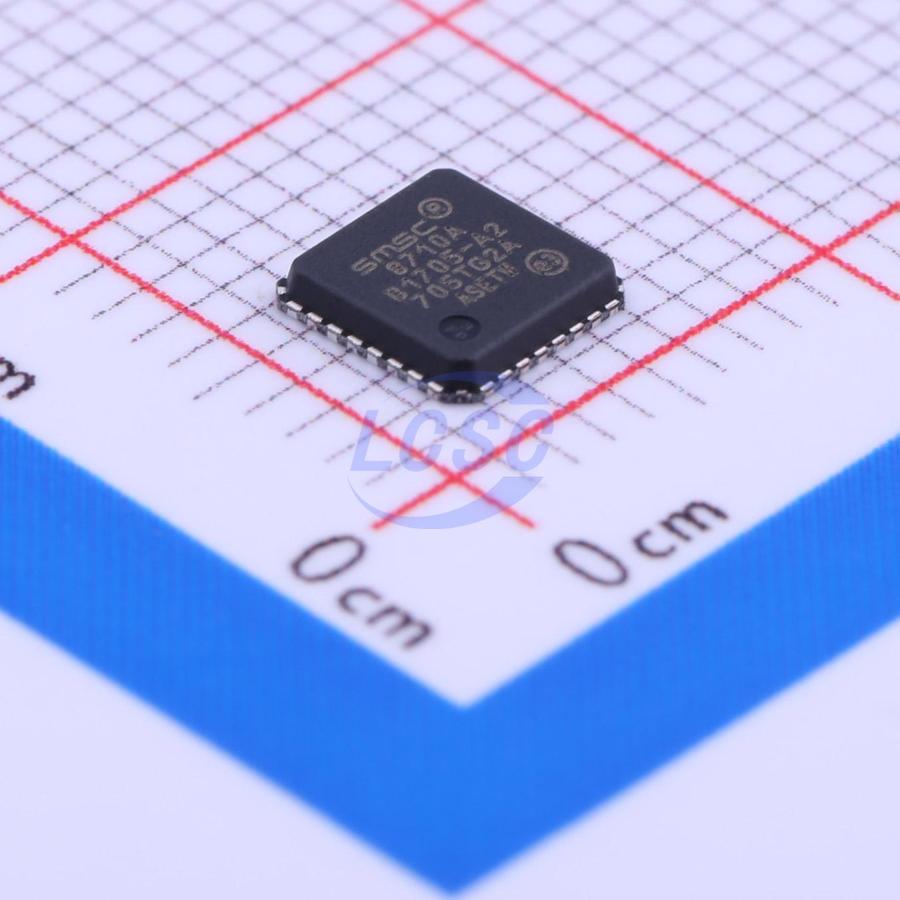

LAN8710A-EZC-TR
1.6V~3.6V PHY Transceiver QFN-32-EP(5x5) Drivers, Receivers, Transceivers RoHS
QFN-32-EP(5x5)ROHS3 CompliantActive
Small Footprint MII/RMII 10/100 Ethernet Transceiver with HP Auto-MDiX and flexPWR Technology
- Manufacturer
- MICROCHIP
- Manufacturer part #
- LAN8710A-EZC-TR
- Store part #
- C46185
- Package / case
- QFN-32-EP(5x5)
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,971 in stock
#C46185
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹90.78 | ₹90.78 |
| 10+ | ₹81.34 | ₹813.40 |
| 30+ | ₹76.61 | ₹2,298.30 |
| 100+ | ₹72.12 | ₹7,212.00 |
| 500+ | ₹69.33 | ₹34,665.00 |
| 1,000+ | ₹67.82 | ₹67,820.00 |
1 × ₹90.78
₹90.78
excl. GST
₹107.12 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
LAN8710A-EZC-TR
₹90.78 for 1 + GST
Specifications
- Voltage - Supply
- 1.6V~3.6V
- Type
- PHY Transceiver
- Ethernet Speed Standards
- 10BASE-T;100BASE-TX
- Data Rate
- 10Mbit/s;100Mbit/s
- Operating Temperature
- 0℃~+85℃
- Features
- Low-power mode;Power-on reset;Programmable LED indication
- Interface
- MII;RMII
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- 5A991B1
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.426 g
Overview
Applications
- Set-Top Boxes
- Networked Printers and Servers
- Test Instrumentation
- LAN on Motherboard
- Embedded Telecom Applications
- Video Record/Playback Systems
- Cable Modems/Routers
- DSL Modems/Routers
- Digital Video Recorders
- IP and Video Phones
- Wireless Access Points
- Digital Televisions
- Digital Media Adaptors/Servers
- Gaming Consoles
- POE Applications
Key features
- Single-Chip Ethernet Physical Layer Transceiver (PHY)
- Comprehensive flexPWR® Technology
- Flexible Power Management Architecture
- LVCMOS Variable I/O voltage range: +1.6V to +3.6V
- Integrated 1.2V regulator with disable feature
- HP Auto-MDIX support
- Small footprint 32-pin QFN lead-free RoHS compliant package (5x5x0.9mm height)
- High-Performance 10/100 Ethernet Transceiver
- Compliant with IEEE802.3/802.3u (Fast Ethernet)
- Compliant with ISO 802-3/IEEE 802.3 (10BASE-T)
- Loop-back modes
- Auto-negotiation
- Automatic polarity detection and correction
- Link status change wake-up detection
- Vendor specific register functions
- Supports both MII and the reduced pin count RMII interfaces
- Various low power modes
- Integrated power-on reset circuit
- Two status LED outputs
- Latch-Up Performance Exceeds 150mA per EIA/JESD 78, Class II
- May be used with a single 3.3V supply
- Extended commercial temperature range (0℃ to +85℃)
- Industrial temperature range version available (-40℃ to +85℃)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LAN8710A-EZC#C633277MICROCHIP · QFN-32-EP(5x5) | MICROCHIP | QFN-32-EP(5x5) | 105 | ₹161.70 · 105 in stock | View |
 | CH182H7#C41427681WCH · QFN-32(5x5) | WCH | QFN-32(5x5) | 397 | ₹60.53 · 397 in stock | View |
