MICROCHIPDatasheet (PDF)

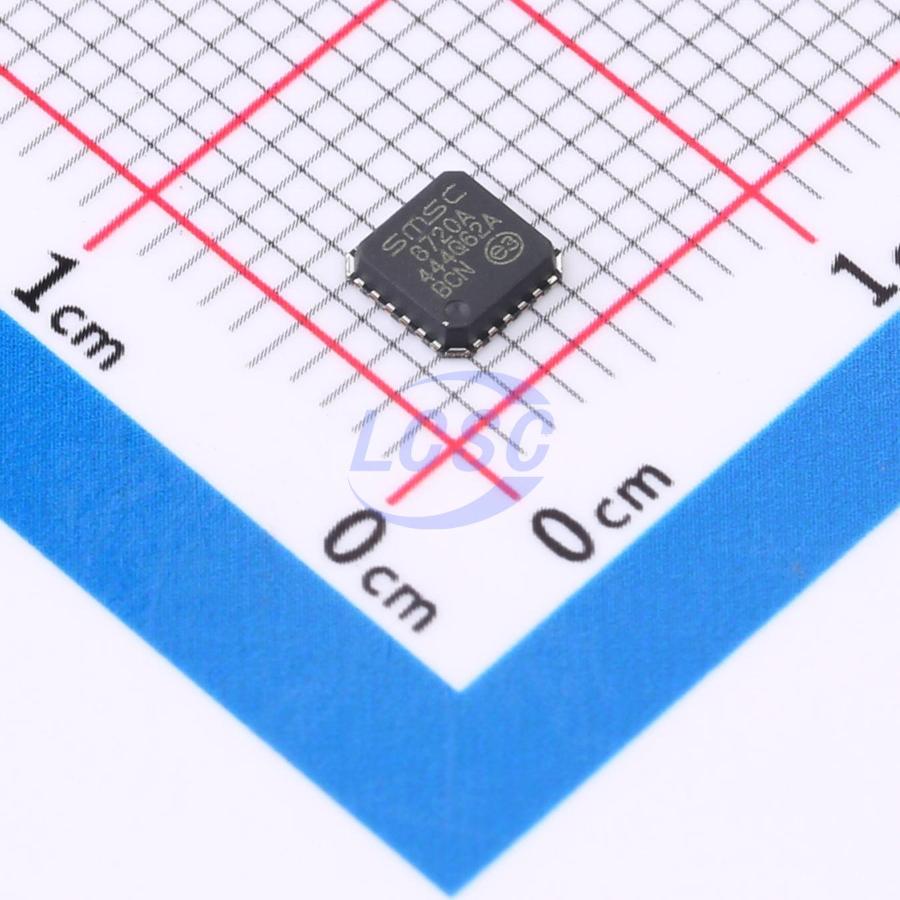

LAN8720A-CP-TR
1.6V~3.6V PHY Transceiver RMII QFN-24-EP(4x4) Drivers, Receivers, Transceivers RoHS
PopularQFN-24-EP(4x4)ROHS3 CompliantActive
Small Footprint RMII 10/100 Ethernet Transceiver with HP Auto-MDiX Support
- Manufacturer
- MICROCHIP
- Manufacturer part #
- LAN8720A-CP-TR
- Store part #
- C45223
- Package / case
- QFN-24-EP(4x4)
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
28,367 in stock
#C45223
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹106.26 | ₹106.26 |
| 10+ | ₹90.40 | ₹904.00 |
| 30+ | ₹79.31 | ₹2,379.30 |
| 100+ | ₹70.20 | ₹7,020.00 |
| 500+ | ₹58.90 | ₹29,450.00 |
| 1,000+ | ₹57.15 | ₹57,150.00 |
1 × ₹106.26
₹106.26
excl. GST
₹125.39 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
LAN8720A-CP-TR
₹106.26 for 1 + GST
Specifications
- Voltage - Supply
- 1.6V~3.6V
- Type
- PHY Transceiver
- Ethernet Speed Standards
- 10BASE-T;100BASE-TX
- Data Rate
- 10Mbit/s;100Mbit/s
- number of channels
- 1
- Operating Temperature
- 0℃~+85℃
- Features
- Low-power mode;Power-on reset;Programmable LED indication
- Interface
- RMII
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- 5A991B1
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.119 g
Overview
Applications
- Set-Top Boxes
- Networked Printers and Servers
- Test Instrumentation
- LAN on Motherboard
- Embedded Telecom Applications
- Video Record/Playback Systems
- Cable Modems/Routers
- DSL Modems/Routers
- Digital Video Recorders
- IP and Video Phones
- Wireless Access Points
- Digital Televisions
- Digital Media Adaptors/Servers
- Gaming Consoles
- POE Applications
Key features
- Single-Chip Ethernet Physical Layer Transceiver (PHY)
- Comprehensive flexPWR Technology
- Flexible Power Management Architecture
- LVCMOS Variable I/O voltage range: +1.6V to +3.6V
- Integrated 1.2V regulator
- HP Auto-MDIX support
- Miniature 24-pin QFN lead-free RoHS compliant package (4x4x0.85mm height)
- High-Performance 10/100 Ethernet Transceiver
- Compliant with IEEE802.3/802.3u (Fast Ethernet)
- Compliant with ISO 802-3/IEEE 802.3 (10BASE-T)
- Loop-back modes
- Auto-negotiation
- Automatic polarity detection and correction
- Link status change wake-up detection
- Vendor specific register functions
- Supports the reduced pin count RMII interface
- Various low power modes
- Integrated power-on reset circuit
- Two status LED outputs
- Latch-Up Performance Exceeds 150mA per EIA/JESD 78, Class II
- May be used with a single 3.3V supply
- Extended commercial temperature range (0℃ to +85℃)
- Industrial temperature range version available (-40℃ to +85℃)
