onsemi

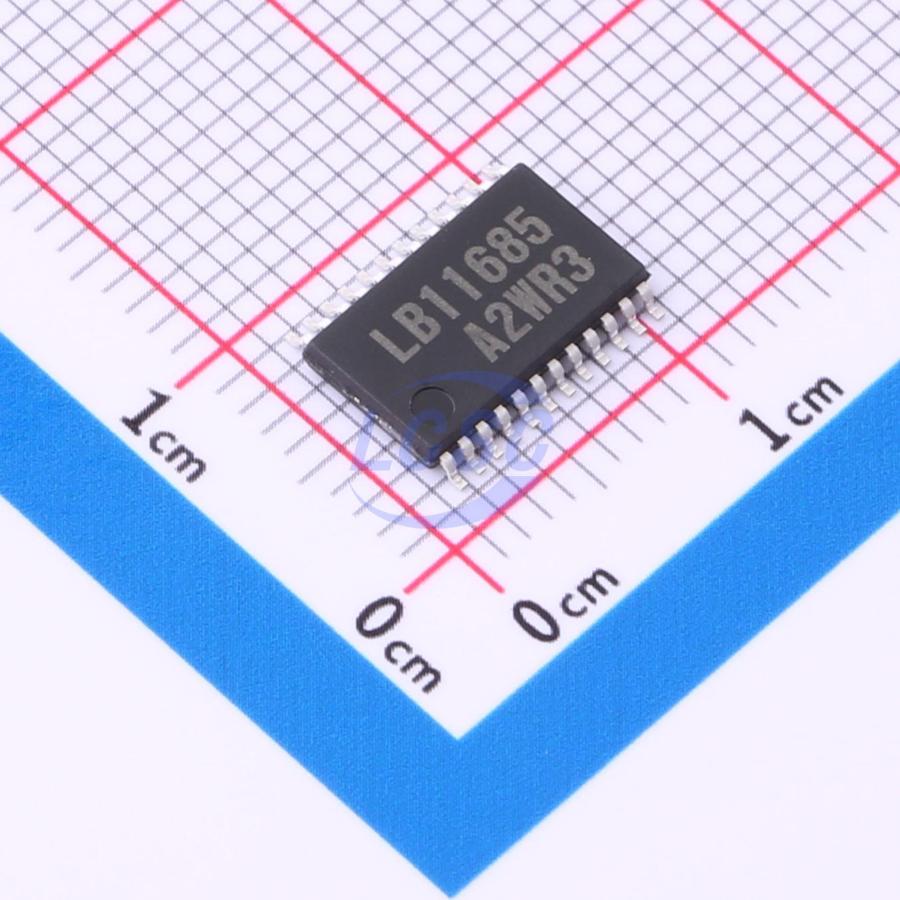

LB11685AV-W-AH

4.5V~18V SSOP-24-275mil Motor Drivers, Controllers RoHS

SSOP-24-275milROHS CompliantActive

3-phase Sensor Less Motor Driver

Manufacturer: onsemi
Manufacturer part #: LB11685AV-W-AH
Store part #: C899589
Package / case: SSOP-24-275mil
Category: Motor Drivers, Controllers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,467 in stock

#C899589

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹110.80	₹110.80
10+	₹99.30	₹993.00
30+	₹93.02	₹2,790.60
100+	₹85.86	₹8,586.00
500+	₹82.61	₹41,305.00
1,000+	₹81.31	₹81,310.00

Quantity (min 1)

1 × ₹110.80

₹110.80

excl. GST

₹130.74 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 1,000 per reel

LB11685AV-W-AH

₹110.80 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Drive Type: Three Phase
Features: Interleaved conduction protection;Motor stall protection;Motor speed indication;Soft switching
Voltage - Supply: 4.5V~18V
Operating Temperature: -40℃~+85℃
Output Current: 1.2A

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 1,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.274 g

Overview

The LB11685AV is a three-phase full-wave current-linear-drive motor driver IC. It adopts a sensor less control system without the use of a Hall Effect device. For quieter operation, the LB11685AV features a current soft switching circuit and be optimal for driving the cooling fan motors used in refrigerators, etc.
