STDatasheet (PDF)

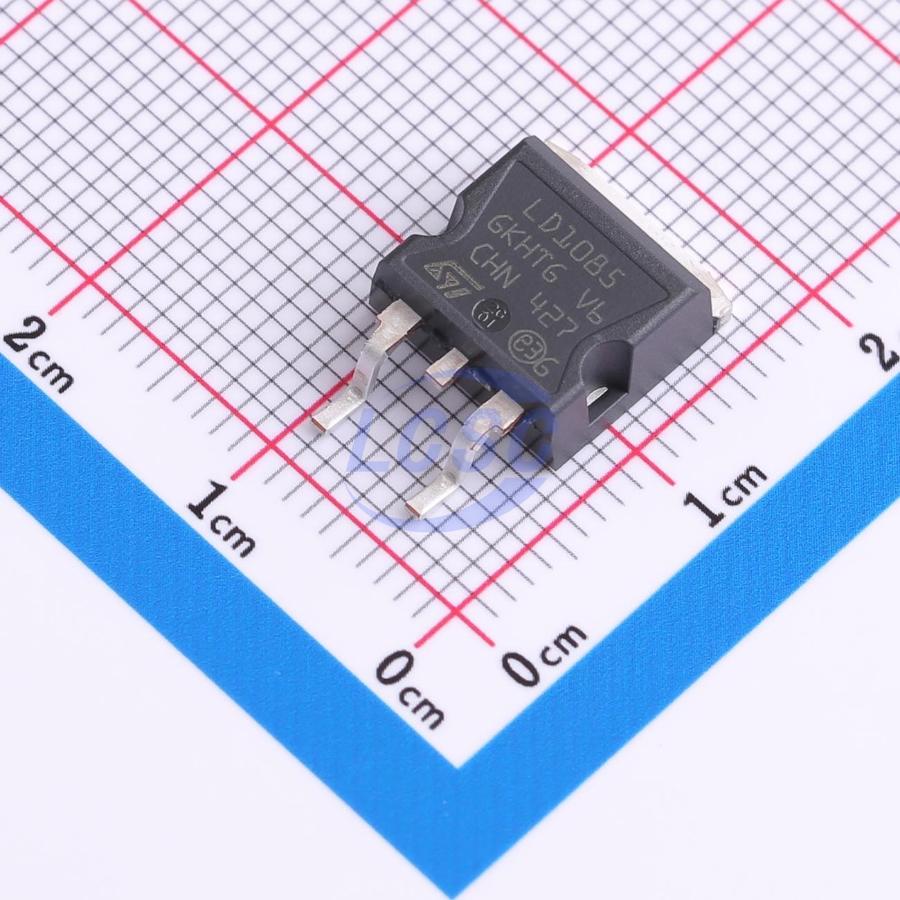

LD1085D2T-R
1.25V Positive Adjustable D2PAK Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
D2PAKROHS3 CompliantActive
3-terminal low-dropout adjustable and fixed positive voltage regulator
- Manufacturer
- ST
- Manufacturer part #
- LD1085D2T-R
- Store part #
- C2970039
- Package / case
- D2PAK
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
897 in stock
#C2970039
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹247.49 | ₹247.49 |
| 10+ | ₹215.15 | ₹2,151.50 |
| 30+ | ₹197.56 | ₹5,926.80 |
| 100+ | ₹167.60 | ₹16,760.00 |
| 500+ | ₹158.92 | ₹79,460.00 |
| 1,000+ | ₹154.79 | ₹1,54,790.00 |
1 × ₹247.49
₹247.49
excl. GST
₹292.04 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
LD1085D2T-R
₹247.49 for 1 + GST
Specifications
- Output Voltage
- 1.25V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 10mA
- Output Configuration
- Positive
- Output Current
- 3A
- Operating Voltage
- 30V
- Features
- Short Circuit Protection;Thermal shutdown;Over Current Protection
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.72 g
Overview
The LD1085 is a low drop voltage regulator able to provide up to 3 A of output current. Dropout is guaranteed at a maximum of 1.2 V at the maximum output current, decreasing at lower loads. The LD1085 is pin-to-pin compatible with the older 3-terminal adjustable regulators, but offers better performance in terms of drop and output tolerance.
Key features
- Typical dropout 1.3 V (at 3 A)
- Three terminal adjustable or fixed output
- voltage 1.8 V, 2.5 V, 3.3 V, 5 V
- Guaranteed output current up to 3 A
- Output tolerance ± 1% at 25 °C and ± 2% in full temperature range
- Internal power and thermal limit
- Wide operating temperature range -40 °C to 125 °C
- Package available: TO-220, TO-220FP, D²PAK, D²PAK/A
- Pinout compatibility with standard adjustable VREG
