STDatasheet (PDF)

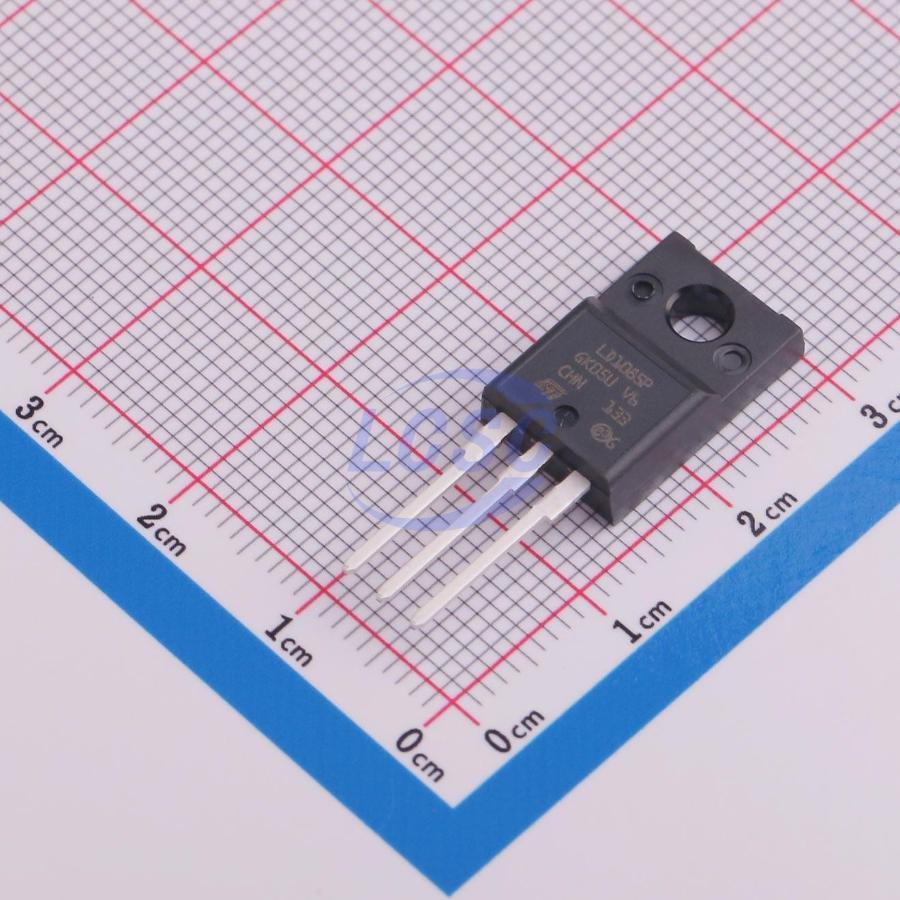

LD1085P
1.25V~28.5V Positive Adjustable TO-220FP Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-220FPROHS3 CompliantActive
3-terminal low-dropout adjustable and fixed positive voltage regulator
- Manufacturer
- ST
- Manufacturer part #
- LD1085P
- Store part #
- C3748337
- Package / case
- TO-220FP
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
17 in stock
#C3748337
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹377.19 | ₹377.19 |
| 10+ | ₹319.66 | ₹3,196.60 |
| 30+ | ₹285.30 | ₹8,559.00 |
| 100+ | ₹250.75 | ₹25,075.00 |
| 500+ | ₹234.86 | ₹1,17,430.00 |
| 1,000+ | ₹227.56 | ₹2,27,560.00 |
1 × ₹377.19
₹377.19
excl. GST
₹445.08 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
LD1085P
₹377.19 for 1 + GST
Specifications
- Output Voltage
- 1.25V~28.5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 5mA
- Output Configuration
- Positive
- Operating Voltage
- 30V
- Output Current
- 3A
- Features
- Short Circuit Protection;Thermal shutdown;Over Current Protection
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.69 g
Overview
The LD1085 is a low drop voltage regulator able to provide up to 3 A of output current. Dropout is guaranteed at a maximum of 1.2 V at the maximum output current, decreasing at lower loads. The LD1085 is pin-to-pin compatible with the older 3-terminal adjustable regulators, but offers better performance in terms of drop and output tolerance.
Key features
- Typical dropout 1.3 V (at 3 A)
- Three terminal adjustable or fixed output
- voltage 1.8 V, 2.5 V, 3.3 V, 5 V
- Guaranteed output current up to 3 A
- Output tolerance ± 1% at 25 °C and ± 2% in full temperature range
- Internal power and thermal limit
- Wide operating temperature range -40 °C to 125 °C
- Package available: TO-220, TO-220FP, D²PAK, D²PAK/A
- Pinout compatibility with standard adjustable VREG
