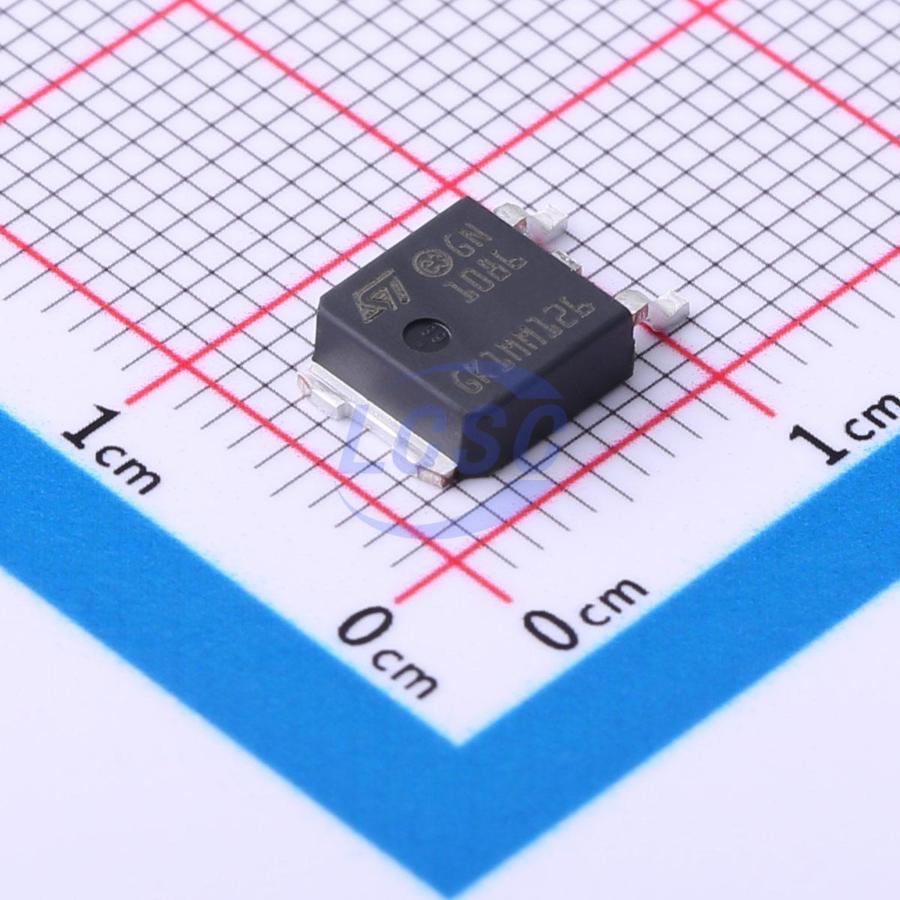

LD1086DTTR

The LD1086 is a low drop voltage regulator capable of providing up to 1.5 A of output current. Dropout is guaranteed at a maximum of 1.2 V at the maximum output current, decreasing at lower loads. The LD1086 is pin-to-pin compatible with older 3-terminal adjustable regulators, but has better performance in terms of drop and output tolerance. Unlike PNP regulators, where a part of the output current is wasted as quiescent current, the LD1086 quiescent current flows into the load, increasing efficiency. Only a 10 μF (minimum) capacitor is needed for stability. The device is available in a TO-220, D²PAK, D²PAK/A, DPAK or DFN8 (4x4) package. On-chip trimming allows the regulator to reach a very tight output voltage tolerance; within ± 1% at 25 °C. The LD1086 is available as automotive grade for adjustable output voltages in the TO-220 and DPAK packages. The PAT, SYL, SBL statistical tests have been performed, and the devices are qualified according to the AEC-Q100 specification for the automotive market in the temperature range of - 40 °C to 125 °C.

Key features

• Typical dropout: 1.3 V at 1.5 A
• Three-terminal adjustable or fixed output voltage: 1.8 V, 2.5 V, 3.3 V, 5 V, 12 V
• Automotive grade (adjustable VOUT in TO-220 and DPAK packages only)
• Output current guaranteed up to 1.5 A
• Output tolerance: ± 1% at 25 °C and ± 2% in full temperature range
• Internal power and thermal limit
• Wide operating temperature range - 40 °C to 125 °C
• Package available: TO-220, D²PAK, D²PAK/A, DPAK and DFN8 (4x4)
• Pinout compatibility with standard adjustable voltage regulators
