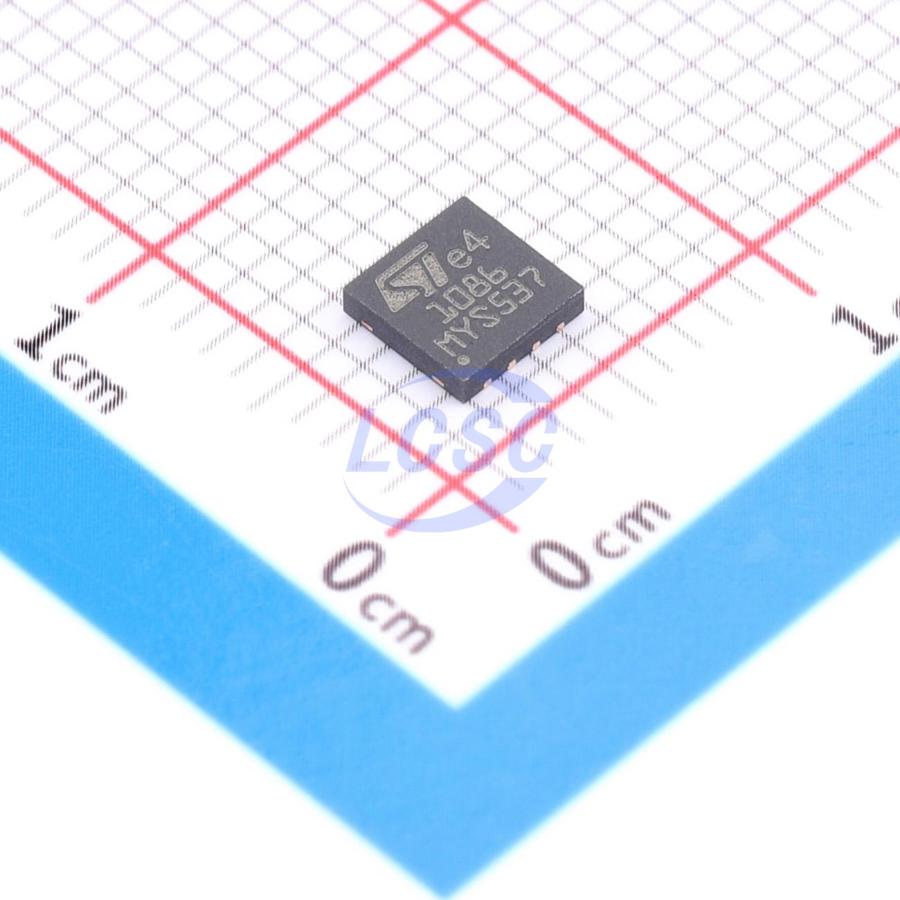

LD1086PUR

The LD1086 is a low drop voltage regulator capable of providing up to 1.5 A of output current. Dropout is guaranteed at a maximum of 1.2V at the maximum output current, decreasing at lower loads. The LD1086 is pin-to-pin compatible with older 3-terminal adjustable regulators, but has better performance in terms of drop and output tolerance. Unlike PNP regulators, where a part of the output current is wasted as quiescent current, the LD1086 quiescent current flows into the load, increasing efficiency. Only a 10 μF (minimum) capacitor is needed for stability. The device is available in a TO-220, D2PAK, D2PAK/A, DPAK or DFN8 (4×4) package. On-chip trimming allows the regulator to reach a very tight output voltage tolerance; within ±1% at 25°C

Key features

• Typical dropout: 1.3V at 1.5A
• Three-terminal adjustable or fixed output voltage: 1.8V, 3.3V, 5V
• Output current guaranteed up to 1.5 A
• Output tolerance: ±1% at 25°C and ±2% in full temperature range
• Internal power and thermal limit
• Wide operating temperature range - 40°C to 125°C
• Package available: TO-220, D2PAK, D2PAK/A, DPAK and DFN8 (4×4)
• Pinout compatibility with standard adjustable voltage regulators
