TECH PUBLIC

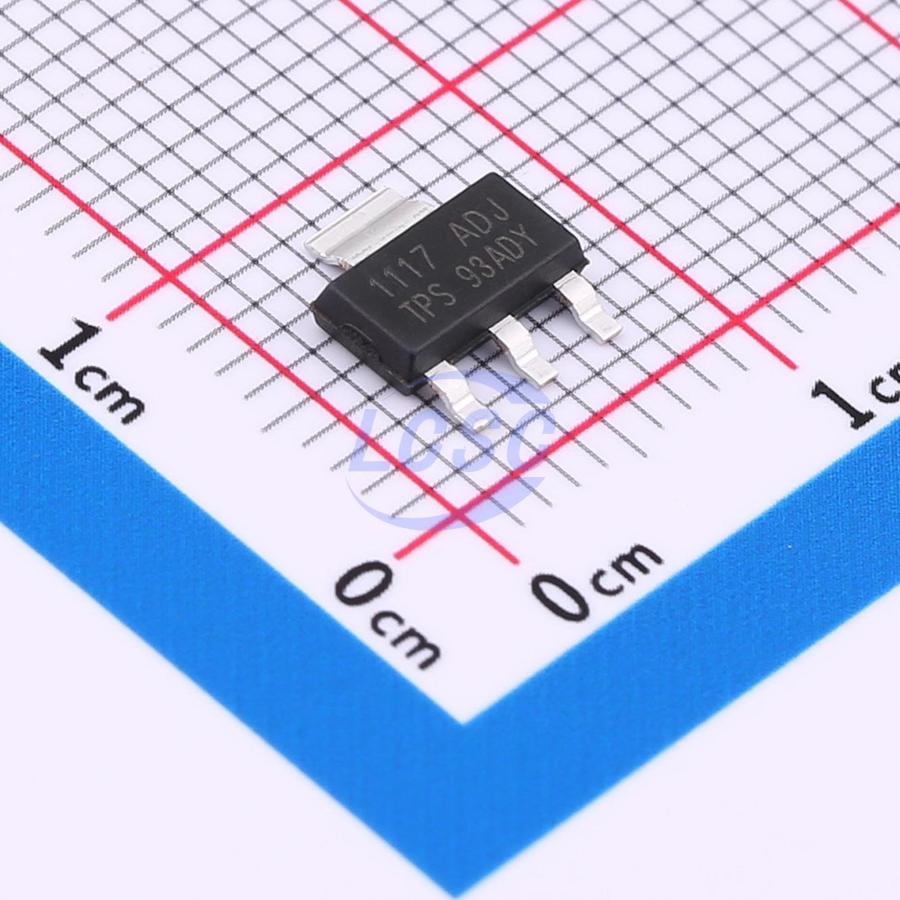

LD1117-ADJ

Linear Voltage Regulator IC Positive Adjustable 1 Output 1A SOT-223

SOT-223RoHSActive

1A Low Dropout Linear Regulator

Manufacturer: TECH PUBLIC
Manufacturer part #: LD1117-ADJ
Store part #: C18212706
Package / case: SOT-223
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,540 in stock

#C18212706

Stock & price checked 15 h ago

Quantity	Unit price	Pack price
10+	₹5.95	₹59.50
100+	₹4.71	₹471.00
300+	₹4.07	₹1,221.00
1,000+	₹3.61	₹3,610.00
4,000+	₹3.24	₹12,960.00
8,000+	₹3.04	₹24,320.00

Quantity (min 10, multiples of 10)

10 × ₹5.95

₹59.50

excl. GST

₹70.21 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

LD1117-ADJ

₹59.50 for 10 + GST

Specifications

Output Voltage: 1.25V~13.8V
Number of Outputs: 1
Operating Temperature: -50℃~+140℃@(Ta)
Output Configuration: Positive
Output Current: 1A
Features: Over Current Protection;Thermal shutdown
Output Type: Adjustable

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.184 g

Overview

Applications

High Efficiency Linear Regulators
Post Regulator for Switching DC/DC Converter
Power Management for M/B and Graphic Card
2.85V Model for SCSI-2 Active Termination
Battery Charger
LCD Monitor and LCD TV
DVD Decode Board
ADSL Modem

Key features

Output Current of 1A Maximum
Three-Terminal Adjustable or Fixed Outputs
Maximum Input Voltage: 18V
Fast Transient Response
Current Limit, Safe Operating and Thermal Shutdown Protection
Line Regulation: 0.2%
Load Regulation: 0.4%
Environment Temperature: -50°C~+140°C
