UTCDatasheet (PDF)

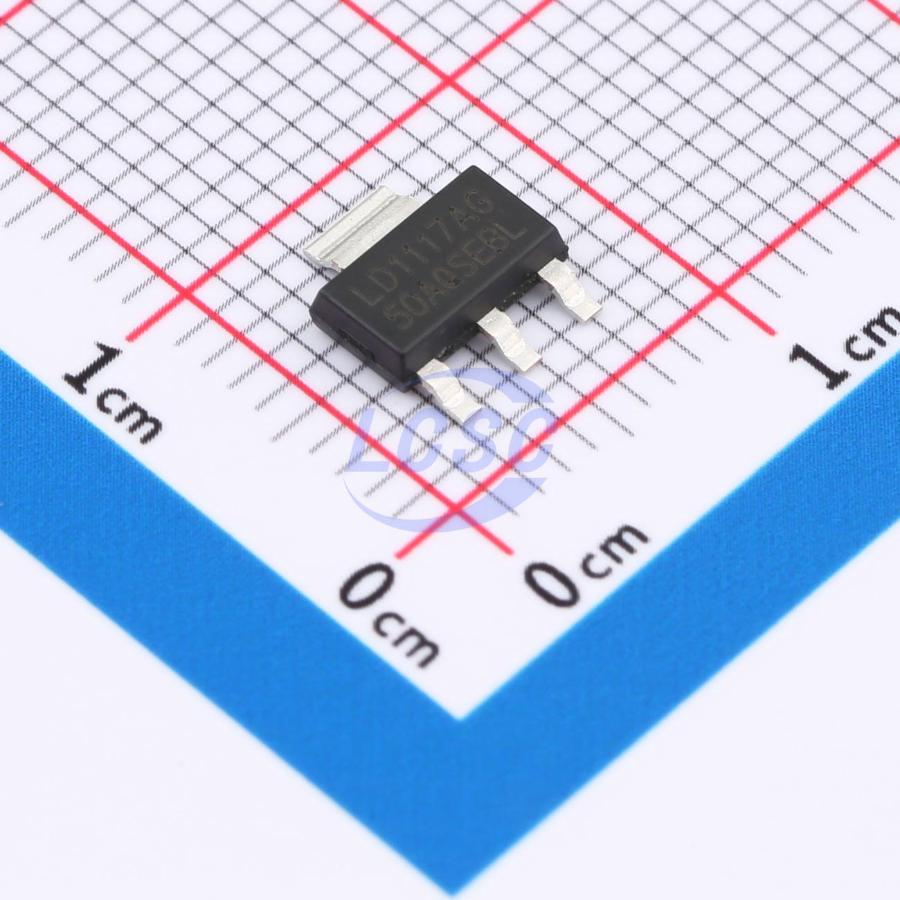

LD1117AG-50-AA3-A-R
5V Positive Fixed SOT-223 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-223ROHS CompliantActive
Low-dropout fixed and adjustable positive voltage regulators
- Manufacturer
- UTC
- Manufacturer part #
- LD1117AG-50-AA3-A-R
- Store part #
- C71124
- Package / case
- SOT-223
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,270 in stock
#C71124
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹10.33 | ₹103.30 |
| 100+ | ₹8.24 | ₹824.00 |
| 300+ | ₹7.20 | ₹2,160.00 |
| 2,500+ | ₹6.11 | ₹15,275.00 |
| 5,000+ | ₹5.49 | ₹27,450.00 |
| 10,000+ | ₹5.17 | ₹51,700.00 |
10 × ₹10.33
₹103.30
excl. GST
₹121.89 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LD1117AG-50-AA3-A-R
₹103.30 for 10 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -20℃~+125℃@(Tj)
- Supply Current (Iq)
- 5mA
- Output Configuration
- Positive
- Operating Voltage
- 15V
- Output Current
- 1A
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.316 g
Overview
The UTC LD1117/A is a low dropout, 3-terminal positive voltage regulator designed to provide output current up to 800mA/1A. There are adjustable version (V_REF = 1.25V) and various fixed versions.
Key features
- Low dropout voltage
- Suitable for SCSI-2 active termination if VOUT set to 2.85V
- Output current up to 0.8A for 1117 and 1.0A for 1117A
- Built-in current limit and over temperature protection
- Low current consumption
- Support MLCC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LD1117AG-50-AA3-D-R#C5160420UTC · SOT-223 | UTC | SOT-223 | 1,550 | ₹10.11 · 1,550 in stock | View |
 | LM1117GS-5.0#C465002HTC · SOT-223-3L | HTC | SOT-223-3L | 10,150 | ₹26.61 · 10,150 in stock | View |
 | SSP1117-5.0V#C277893Siproin · SOT-223 | Siproin | SOT-223 | 11,270 | ₹9.90 · 11,270 in stock | View |
 | AMS1117-5.0RG#C2977151HANSCHIP semiconductor · SOT-223 | HANSCHIP semiconductor | SOT-223 | 1,820 | ₹7.30 · 1,820 in stock | View |
 | JTD1117C(1A)-5.0V#C49308279JTD · SOT-223 | JTD | SOT-223 | 920 | ₹5.20 · 920 in stock | View |
