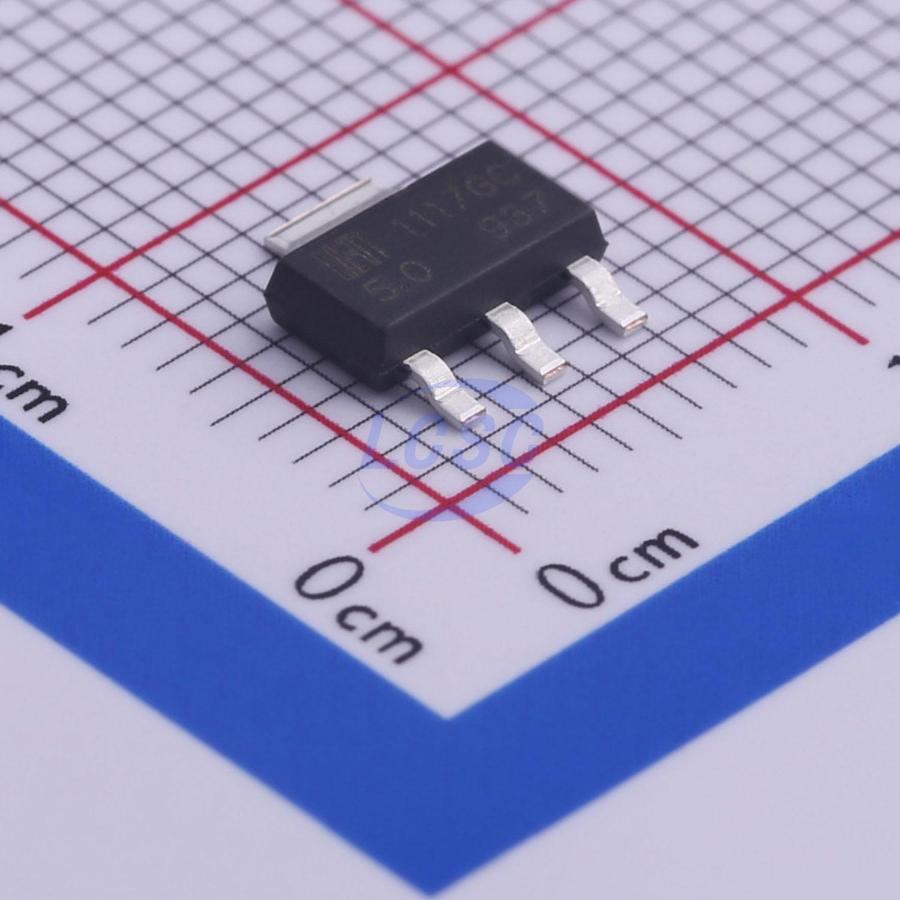

HTCDatasheet (PDF)
LM1117GS-5.0
5V Positive Fixed SOT-223-3L Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-223-3LROHS CompliantActive
1A L.D.O VOLTAGE REGULATOR
- Manufacturer
- HTC
- Manufacturer part #
- LM1117GS-5.0
- Store part #
- C465002
- Package / case
- SOT-223-3L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10,150 in stock
#C465002
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹26.61 | ₹133.05 |
| 50+ | ₹20.14 | ₹1,007.00 |
| 150+ | ₹17.37 | ₹2,605.50 |
| 500+ | ₹13.92 | ₹6,960.00 |
| 2,500+ | ₹12.37 | ₹30,925.00 |
| 5,000+ | ₹11.46 | ₹57,300.00 |
5 × ₹26.61
₹133.05
excl. GST
₹157.00 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM1117GS-5.0
₹133.05 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 5uA
- Output Configuration
- Positive
- Operating Voltage
- 15V
- Output Current
- 1A
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.274 g
Overview
The LM1117GS is a low power positive-voltage regulator designed to meet 1A output current. This device is an excellent choice for use in battery-powered applications, as active terminators for the SCSI bus, and portable computers. The LM1117GS features very low quiescent current and very low dropout voltage of 1.2V at a full load and lower as output current decreases. LM1117GS is available as an adjustable or fixed 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, and 5.0V output voltages. The LM1117GS is offered in a 3-pin surface mount package SOT-223-3L. The output capacitor of 10μF or larger is needed for output stability of LM1117GS as required by most of the other regulator circuits.
Applications
- Active SCSI Terminators
- Portable/ Plan Top/ Notebook Computers
- High Efficiency Linear Regulators
- SMPS Post Regulators
- Mother B/D Clock Supplies
- Disk Drives
- Battery Chargers
Key features
- Output Current up to 1A
- Dropout Voltage is 1.2V at Output current
- Three Terminal Adjustable(ADJ) or Fixed 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, and 5.0V
- Line Regulation typically at 0.1% typ.
- Load Regulation typically at 0.2% typ.
- Internal Current and Thermal Protection
- Surface Mount Package SOT-223-3L
- Moisture Sensitivity Level 3
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LD1117AG-50-AA3-D-R#C5160420UTC · SOT-223 | UTC | SOT-223 | 1,550 | ₹10.11 · 1,550 in stock | View |
 | LD1117AG-50-AA3-A-R#C71124UTC · SOT-223 | UTC | SOT-223 | 7,270 | ₹10.33 · 7,270 in stock | View |
 | AMS1117-5.0RG#C2977151HANSCHIP semiconductor · SOT-223 | HANSCHIP semiconductor | SOT-223 | 1,820 | ₹7.30 · 1,820 in stock | View |
 | LM1117MP-5.0/TR#C498151HGSEMI · SOT-223-3 | HGSEMI | SOT-223-3 | 4,340 | ₹13.44 · 4,340 in stock | View |
 | CJT1117B-5.0#C89273JSCJ · SOT-223 | JSCJ | SOT-223 | 17,110 | ₹9.13 · 17,110 in stock | View |
