STDatasheet (PDF)

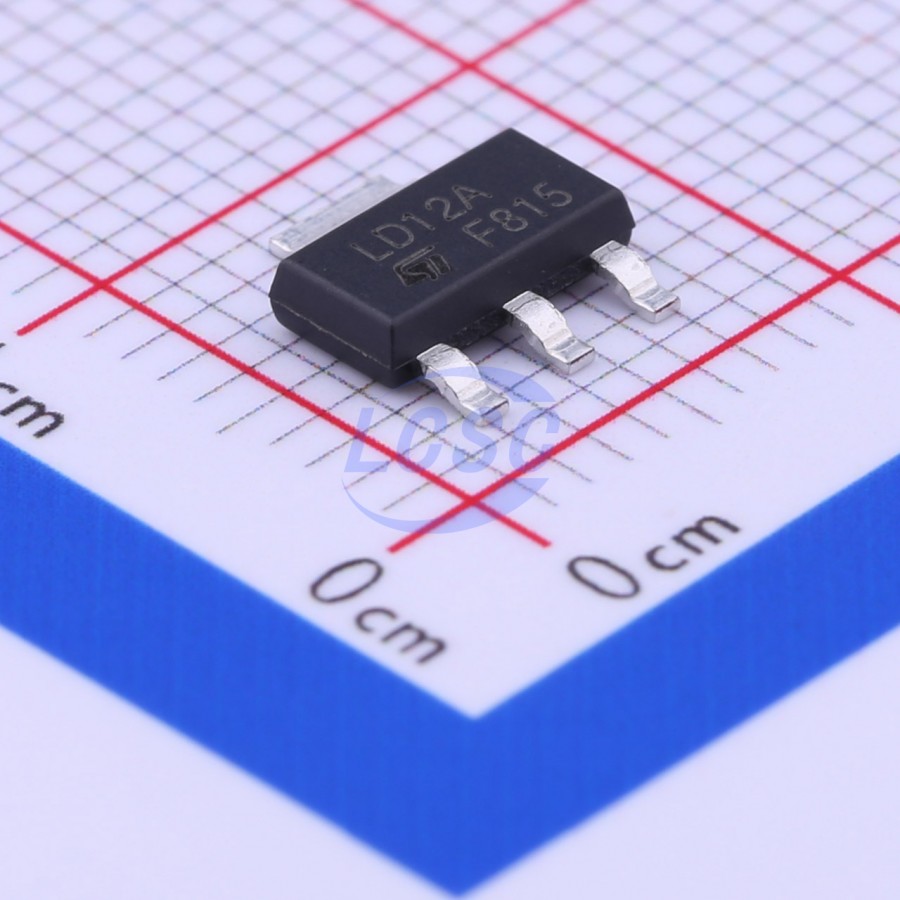

LD1117AS12TR
1.2V Positive Fixed SOT-223 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-223ROHS3 CompliantActive
Low Dropout Fixed and Adjustable Positive Voltage Regulators
- Manufacturer
- ST
- Manufacturer part #
- LD1117AS12TR
- Store part #
- C98193
- Package / case
- SOT-223
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,640 in stock
#C98193
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹40.42 | ₹202.10 |
| 50+ | ₹32.37 | ₹1,618.50 |
| 150+ | ₹28.92 | ₹4,338.00 |
| 500+ | ₹24.62 | ₹12,310.00 |
| 2,500+ | ₹22.70 | ₹56,750.00 |
| 5,000+ | ₹21.55 | ₹1,07,750.00 |
5 × ₹40.42
₹202.10
excl. GST
₹238.48 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LD1117AS12TR
₹202.10 for 5 + GST
Specifications
- Output Voltage
- 1.2V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃@(Tj)
- Supply Current (Iq)
- 5mA
- Output Configuration
- Positive
- Operating Voltage
- 10V
- Output Current
- 1.2A
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.22 g
Overview
The LD1117A is a low drop voltage regulator able to provide up to 1 A of output current, available also in adjustable versions (V_REF = 1.25 V). In fixed versions, the following output voltages are offered: 1.2 V, 1.8 V, and 3.3 V. The device is supplied in: SOT - 223, DPAK and TO - 220. Surface mounted packages optimize the thermal characteristics while offering a relevant space saving advantage. High efficiency is assured by an NPN pass transistor. Only a very common 10 μF minimum capacitor is needed for stability. Chip trimming allows the regulator to reach a very tight output voltage tolerance, within ± 2% at 25°C.
Key features
- Low dropout voltage: – 1.15 V typ. (ΔI_OUT = 1 A, 25°C)
- Very low quiescent current: – 5 mA typ. (25°C)
- Output current up to 1 A
- Fixed output voltage of: – 1.2 V, 1.8 V, 3.3 V
- Adjustable version availability (V_REF = 1.25 V)
- Internal current and thermal limit
- Only 10 μF for stability
- Available in ± 2% (at 25°C) and 4% in full temperature range
- High supply voltage rejection: – 80 dB typ. (at 25°C)
- Temperature range: 0°C to 125°C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | JTD1117B-1.2V#C42443439JTD · SOT-223 | JTD | SOT-223 | 2,980 | ₹6.26 · 2,980 in stock | View |
 | AMS1117-1.2V#C46473008TECH PUBLIC · SOT-223 | TECH PUBLIC | SOT-223 | 4,670 | ₹6.27 · 4,670 in stock | View |
 | XBL1117-1.2#C47021216XBLW · SOT-223 | XBLW | SOT-223 | 1,440 | ₹6.09 · 1,440 in stock | View |
 | AMS1117-1.2#C5250987TWGMC · SOT-223-3L | TWGMC | SOT-223-3L | 2,740 | ₹7.71 · 2,740 in stock | View |
 | AMS1117-1.2V#C41361592JSMSEMI · SOT-223 | JSMSEMI | SOT-223 | 3,040 | ₹10.20 · 3,040 in stock | View |
