STDatasheet (PDF)

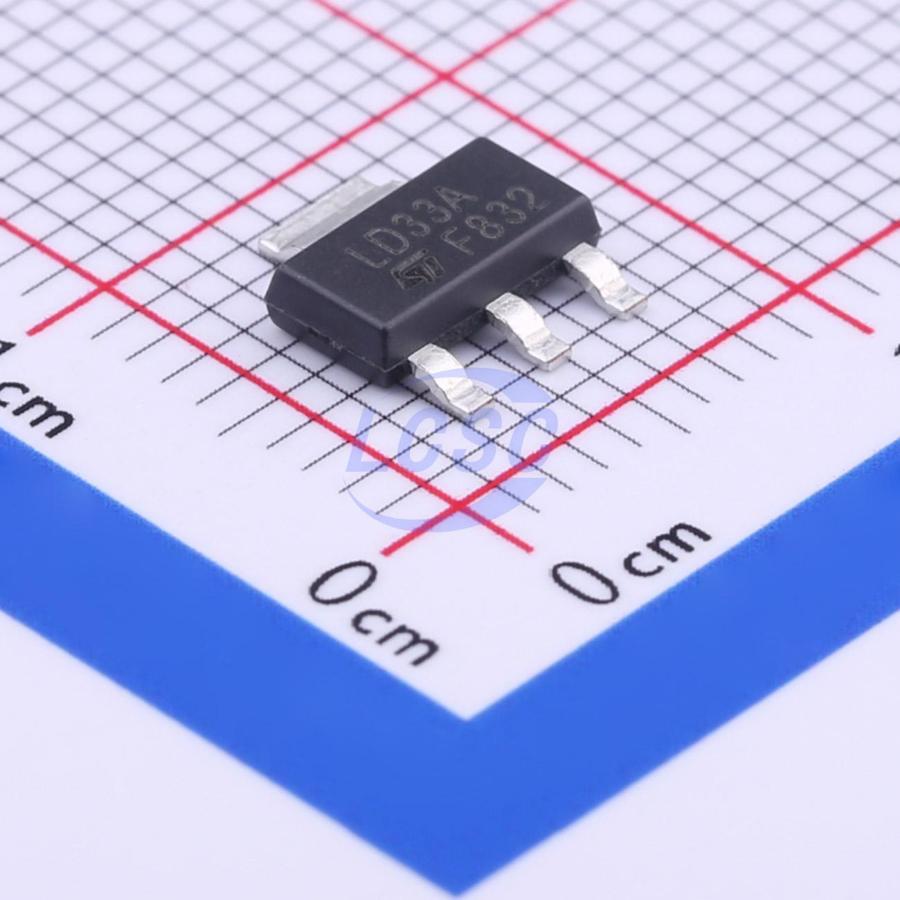

LD1117AS33TR
3.3V Positive Fixed SOT-223-4 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-223-4ROHS3 CompliantActive
Low Dropout Fixed and Adjustable Positive Voltage Regulators
- Manufacturer
- ST
- Manufacturer part #
- LD1117AS33TR
- Store part #
- C115288
- Package / case
- SOT-223-4
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
41,910 in stock
#C115288
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹29.17 | ₹145.85 |
| 50+ | ₹23.36 | ₹1,168.00 |
| 150+ | ₹20.88 | ₹3,132.00 |
| 500+ | ₹17.77 | ₹8,885.00 |
| 2,500+ | ₹16.39 | ₹40,975.00 |
| 5,000+ | ₹15.56 | ₹77,800.00 |
5 × ₹29.17
₹145.85
excl. GST
₹172.10 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LD1117AS33TR
₹145.85 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃@(Tj)
- Supply Current (Iq)
- 5mA
- Output Configuration
- Positive
- Operating Voltage
- 10V
- Output Current
- 1A
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.22 g
Overview
The LD1117A is a low drop voltage regulator able to provide up to 1 A of output current, available also in adjustable versions (V_REF = 1.25 V). In fixed versions, the following output voltages are offered: 1.2 V, 1.8 V, and 3.3 V. The device is supplied in: SOT - 223, DPAK and TO - 220. Surface mounted packages optimize the thermal characteristics while offering a relevant space saving advantage. High efficiency is assured by an NPN pass transistor. Only a very common 10 μF minimum capacitor is needed for stability. Chip trimming allows the regulator to reach a very tight output voltage tolerance, within ± 2% at 25°C.
Key features
- Low dropout voltage: – 1.15 V typ. (ΔI_OUT = 1 A, 25°C)
- Very low quiescent current: – 5 mA typ. (25°C)
- Output current up to 1 A
- Fixed output voltage of: – 1.2 V, 1.8 V, 3.3 V
- Adjustable version availability (V_REF = 1.25 V)
- Internal current and thermal limit
- Only 10 μF for stability
- Available in ± 2% (at 25°C) and 4% in full temperature range
- High supply voltage rejection: – 80 dB typ. (at 25°C)
- Temperature range: 0°C to 125°C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LD1117AG-33-AA3-A-R#C71121UTC · SOT-223-4 | UTC | SOT-223-4 | 3,89,990 | ₹10.90 · 3,89,990 in stock | View |
 | AMS1117-3.3#C917183JSMSEMI · SOT-223-3 | JSMSEMI | SOT-223-3 | 60,890 | ₹7.91 · 60,890 in stock | View |
 | AMS1117-3.3#C18164485GR · SOT-223 | GR | SOT-223 | 49,520 | ₹5.27 · 49,520 in stock | View |
 | AZ1117IH-3.3TRG1#C108495DIODES · SOT-223 | DIODES | SOT-223 | 12,840 | ₹48.26 · 12,840 in stock | View |
 | AMS1117-3.3#C347222UMW · SOT-223 | UMW | SOT-223 | 8,92,910 | ₹6.43 · 8,92,910 in stock | View |
