STDatasheet (PDF)

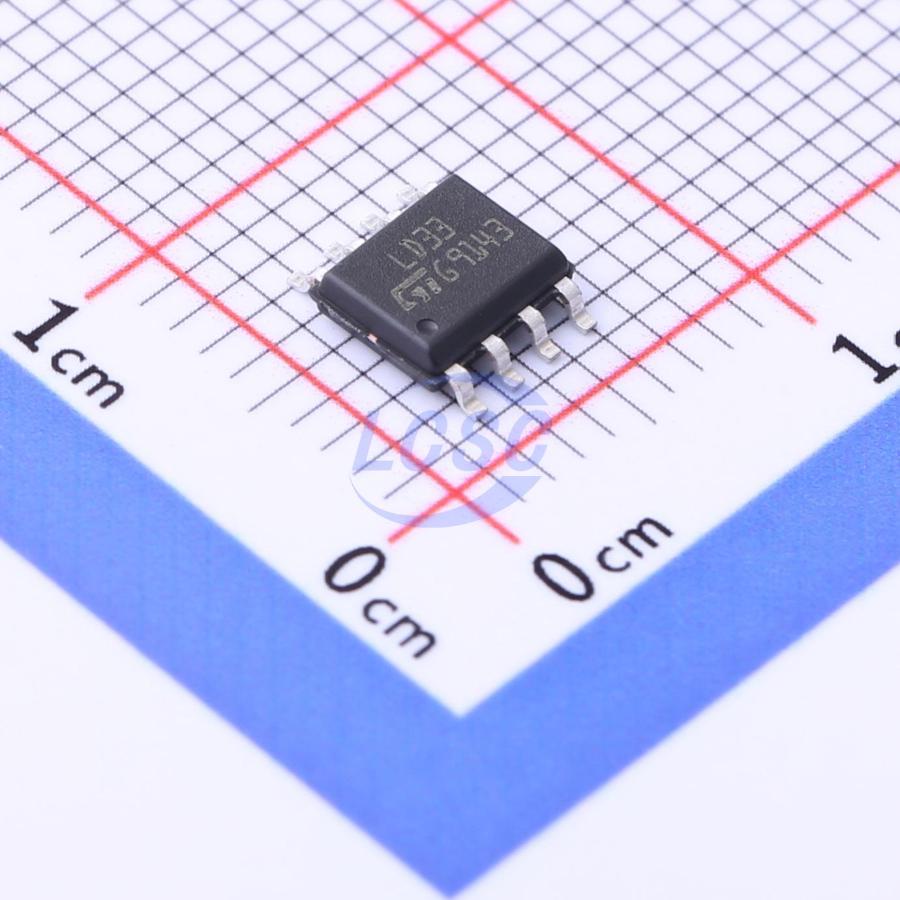

LD1117D33TR
3.3V Positive Fixed SO-8 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SO-8ROHS3 CompliantActive
Adjustable and Fixed Low Dropout Positive Voltage Regulators
- Manufacturer
- ST
- Manufacturer part #
- LD1117D33TR
- Store part #
- C2971297
- Package / case
- SO-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,740 in stock
#C2971297
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹8.24 | ₹41.20 |
| 50+ | ₹7.16 | ₹358.00 |
| 150+ | ₹6.62 | ₹993.00 |
| 500+ | ₹6.20 | ₹3,100.00 |
| 2,500+ | ₹5.87 | ₹14,675.00 |
| 5,000+ | ₹5.72 | ₹28,600.00 |
5 × ₹8.24
₹41.20
excl. GST
₹48.62 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LD1117D33TR
₹41.20 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃@(Tj)
- Supply Current (Iq)
- 10mA
- Output Configuration
- Positive
- Output Current
- 800mA
- Operating Voltage
- 15V
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.14 g
Overview
The LD1117 is a low drop voltage regulator capable of delivering 800 mA of output current, available even in adjustable version (V = 1.25 - 3.3 V) and in fixed versions, offered the following output voltages: 1.2 V, 1.8 V, 2.5 V, 2.85 V, 3.3 V and 5.0 V. The device is supplied in: SOT - 223, DPAK, SO - 8 and TO - 220. The SOT - 223 and DPAK surface mount package optimize the thermal characteristics even offering a relevant space saving effect. High efficiency is assured by NPN pass transistor. In fact in this unlike than PNP one, the quiescent current flows mostly into the load. Only a very common 10 µF minimum capacitor is needed for stability. Laser trimming allows the regulator to reach very tight output voltage tolerance, within ± 1 % at 25 °C. The adjustable LD1117 is pin to pin compatible with the other standard.
Key features
- Low dropout voltage (1 V for 2.85 V device at 800 mA)
- Fixed output voltage of: 1.2 V, (V_REF = 1.25 V), 1.8 V, 2.5 V, 2.85 V, 3.3 V, 5.0 V
- Regulation accuracy: ± 1 % at 25 °C and 2 %
- Available in ± 1 % (at 25 °C) and 2 %
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LD1117D33CTR#C157440ST · SOIC-8 | ST | SOIC-8 | 2,975 | ₹30.02 · 2,975 in stock | View |
| MC33269M-3.3/TR#C46614070HGSEMI · SOP-8 | HGSEMI | SOP-8 | 2,395 | ₹18.75 · 2,395 in stock | View | |
 | LM1117M-3.3/TR-HG#C498327HGSEMI · SOP-8 | HGSEMI | SOP-8 | 560 | ₹12.86 · 560 in stock | View |
 | AMS1117M-3.3RG#C2977140HANSCHIP semiconductor · SOP-8 | HANSCHIP semiconductor | SOP-8 | 2,100 | ₹12.67 · 2,100 in stock | View |
 | GM12041ARDZ-3.3-R7#C19272621GONGMOSEMI · SOIC-8 | GONGMOSEMI | SOIC-8 | 1,000 | ₹433.44 · 1,000 in stock | View |
