STDatasheet (PDF)

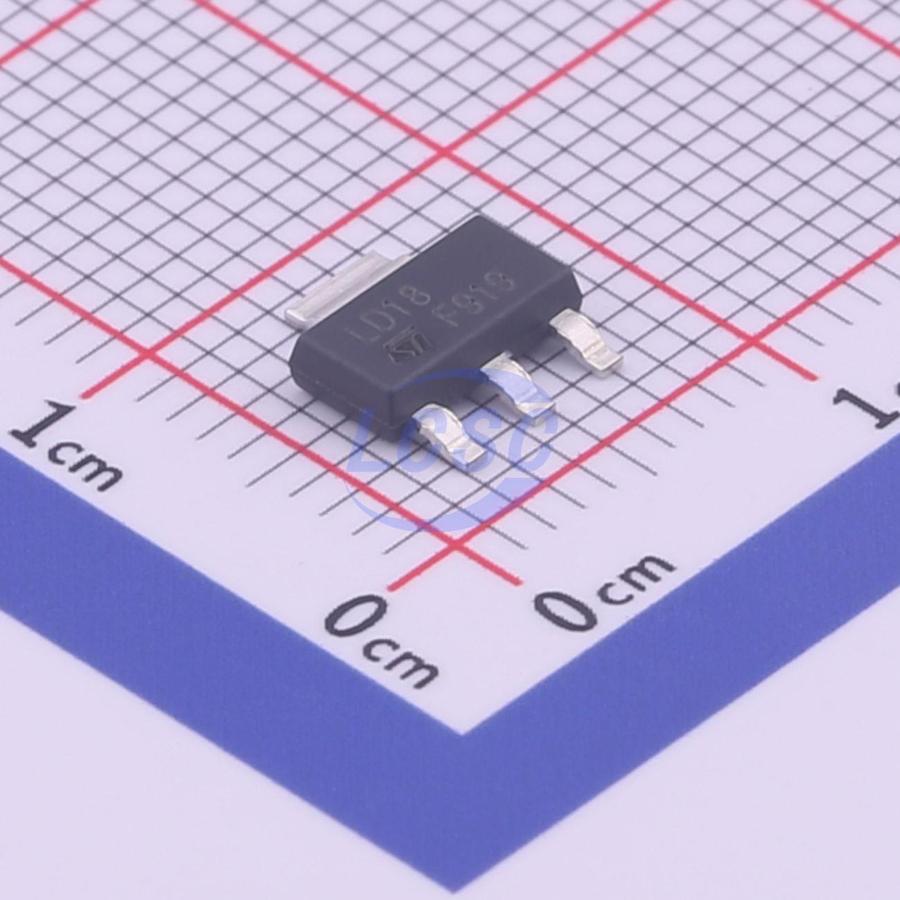

LD1117S18CTR
1.8V Positive Fixed SOT-223 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-223ROHS3 CompliantActive
Adjustable and Fixed Low Dropout Positive Voltage Regulators
- Manufacturer
- ST
- Manufacturer part #
- LD1117S18CTR
- Store part #
- C672391
- Package / case
- SOT-223
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,300 in stock
#C672391
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹39.35 | ₹196.75 |
| 50+ | ₹29.85 | ₹1,492.50 |
| 150+ | ₹25.79 | ₹3,868.50 |
| 500+ | ₹20.70 | ₹10,350.00 |
| 2,500+ | ₹18.44 | ₹46,100.00 |
| 5,000+ | ₹17.09 | ₹85,450.00 |
5 × ₹39.35
₹196.75
excl. GST
₹232.17 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LD1117S18CTR
₹196.75 for 5 + GST
Specifications
- Output Voltage
- 1.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃
- Supply Current (Iq)
- 10mA
- Output Configuration
- Positive
- Operating Voltage
- 15V
- Output Current
- 800mA
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.252 g
Overview
The LD1117 is a low drop voltage regulator capable of delivering 800 mA of output current, available even in adjustable version (V = 1.25 - 3.3 V) and in fixed versions, offered the following output voltages: 1.2 V, 1.8 V, 2.5 V, 2.85 V, 3.3 V and 5.0 V. The device is supplied in: SOT - 223, DPAK, SO - 8 and TO - 220. The SOT - 223 and DPAK surface mount package optimize the thermal characteristics even offering a relevant space saving effect. High efficiency is assured by NPN pass transistor. In fact in this unlike than PNP one, the quiescent current flows mostly into the load. Only a very common 10 µF minimum capacitor is needed for stability. Laser trimming allows the regulator to reach very tight output voltage tolerance, within ± 1 % at 25 °C. The adjustable LD1117 is pin to pin compatible with the other standard.
Key features
- Low dropout voltage (1 V for 2.85 V device at 800 mA)
- Fixed output voltage of: 1.2 V, (V_REF = 1.25 V), 1.8 V, 2.5 V, 2.85 V, 3.3 V, 5.0 V
- Regulation accuracy: ± 1 % at 25 °C and 2 %
- Available in ± 1 % (at 25 °C) and 2 %
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AMS1117-1.8RG#C2977153HANSCHIP semiconductor · SOT-223 | HANSCHIP semiconductor | SOT-223 | 1,460 | ₹7.57 · 1,460 in stock | View |
 | LD1117AG-18-AA3-A-R#C71122UTC · SOT-223-4 | UTC | SOT-223-4 | 105 | ₹10.77 · 105 in stock | View |
 | CJT1117B-1.8#C2961228JSCJ · SOT-223 | JSCJ | SOT-223 | 2,410 | ₹8.59 · 2,410 in stock | View |
 | TLV1117-18IDCYR#C485536TI · SOT-223-4 | TI | SOT-223-4 | 200 | ₹51.40 · 200 in stock | View |
 | AMS1117-1.8#C6185Advanced Monolithic Systems · SOT-223 | Advanced Monolithic Systems | SOT-223 | 10,395 | ₹31.41 · 10,395 in stock | View |
