STDatasheet (PDF)

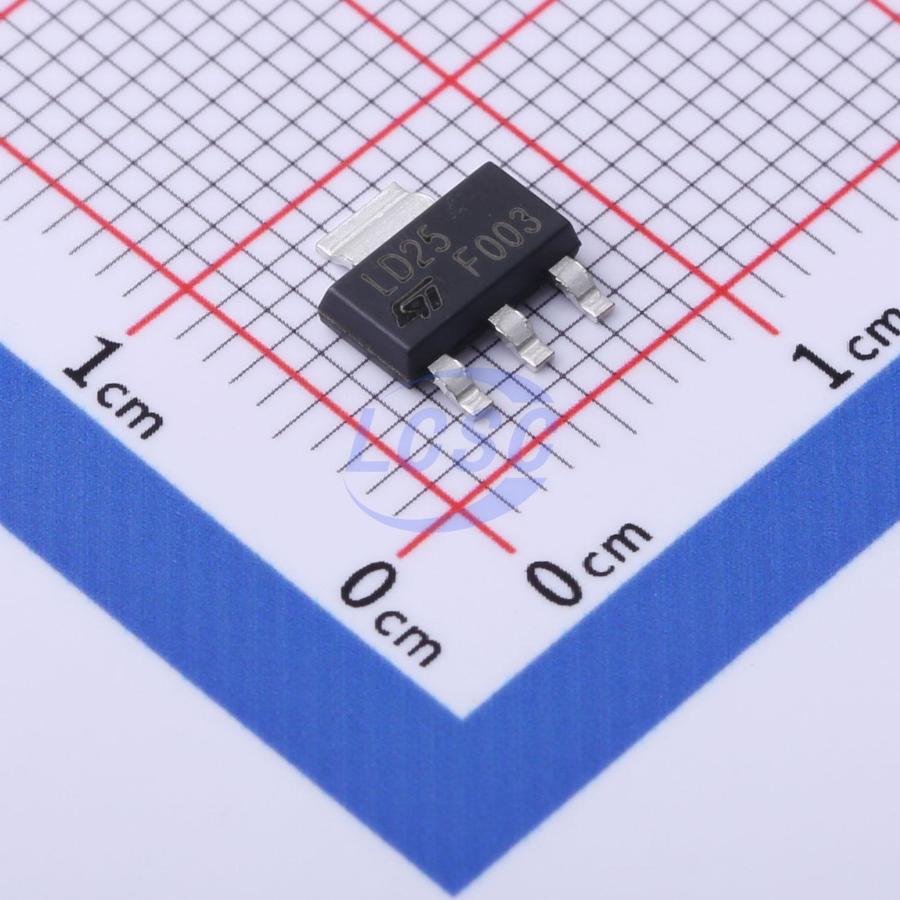

LD1117S25CTR
2.5V Positive Fixed SOT-223 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-223ROHS3 CompliantActive
Adjustable and Fixed Low Dropout Positive Voltage Regulators
- Manufacturer
- ST
- Manufacturer part #
- LD1117S25CTR
- Store part #
- C2802527
- Package / case
- SOT-223
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,695 in stock
#C2802527
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹25.84 | ₹129.20 |
| 50+ | ₹21.37 | ₹1,068.50 |
| 150+ | ₹19.45 | ₹2,917.50 |
| 500+ | ₹17.07 | ₹8,535.00 |
| 2,500+ | ₹16.00 | ₹40,000.00 |
| 5,000+ | ₹15.36 | ₹76,800.00 |
5 × ₹25.84
₹129.20
excl. GST
₹152.46 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LD1117S25CTR
₹129.20 for 5 + GST
Specifications
- Output Voltage
- 2.5V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃@(Tj)
- Supply Current (Iq)
- 5mA
- Output Configuration
- Positive
- Operating Voltage
- 15V
- Output Current
- 800mA
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.255 g
Overview
The LD1117 is a low drop voltage regulator capable of delivering 800 mA of output current, available even in adjustable version (V = 1.25 - 3.3 V) and in fixed versions, offered the following output voltages: 1.2 V, 1.8 V, 2.5 V, 2.85 V, 3.3 V and 5.0 V. The device is supplied in: SOT - 223, DPAK, SO - 8 and TO - 220. The SOT - 223 and DPAK surface mount package optimize the thermal characteristics even offering a relevant space saving effect. High efficiency is assured by NPN pass transistor. In fact in this unlike than PNP one, the quiescent current flows mostly into the load. Only a very common 10 µF minimum capacitor is needed for stability. Laser trimming allows the regulator to reach very tight output voltage tolerance, within ± 1 % at 25 °C. The adjustable LD1117 is pin to pin compatible with the other standard.
Key features
- Low dropout voltage (1 V for 2.85 V device at 800 mA)
- Fixed output voltage of: 1.2 V, (V_REF = 1.25 V), 1.8 V, 2.5 V, 2.85 V, 3.3 V, 5.0 V
- Regulation accuracy: ± 1 % at 25 °C and 2 %
- Available in ± 1 % (at 25 °C) and 2 %
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LD1117S25TR#C26457ST · SOT-223 | ST | SOT-223 | 275 | ₹40.18 · 275 in stock | View |
 | LD1117AG-25-AA3-A-R#C71123UTC · SOT-223-4 | UTC | SOT-223-4 | 1,570 | ₹9.58 · 1,570 in stock | View |
 | LM1117MP-2.5/NOPB#C352830TI · SOT-223 | TI | SOT-223 | 5 | ₹86.95 · 5 in stock | View |
| TLV1117-25IDCY#C2866219TI · SOT-223-4 | TI | SOT-223-4 | 100 | ₹73.72 · 100 in stock | View | |
 | AMS1117-2.5OEB#C50313801GREENMICRO · SOT-223 | GREENMICRO | SOT-223 | 7,220 | ₹5.01 · 7,220 in stock | View |
