STDatasheet (PDF)

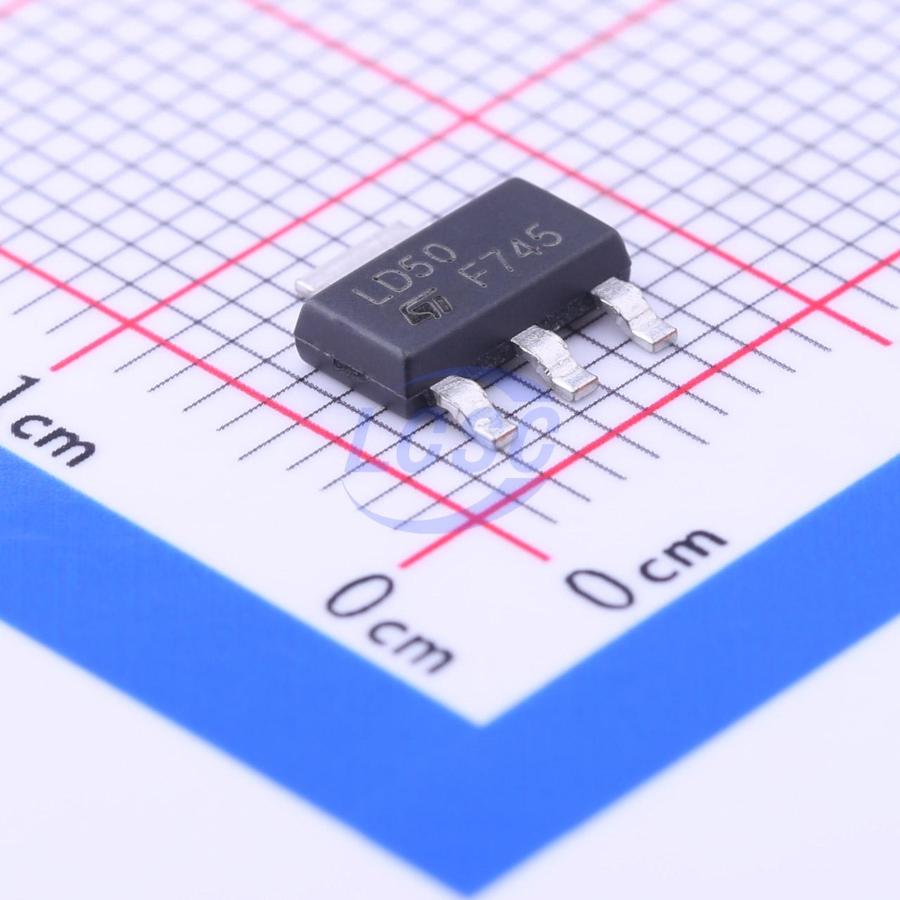

LD1117S50CTR
5V Positive Fixed SOT-223-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-223-3ROHS3 CompliantActive
Adjustable and Fixed Low Dropout Positive Voltage Regulators
- Manufacturer
- ST
- Manufacturer part #
- LD1117S50CTR
- Store part #
- C81157
- Package / case
- SOT-223-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,240 in stock
#C81157
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹28.25 | ₹141.25 |
| 50+ | ₹21.96 | ₹1,098.00 |
| 150+ | ₹19.28 | ₹2,892.00 |
| 500+ | ₹15.92 | ₹7,960.00 |
| 2,500+ | ₹14.12 | ₹35,300.00 |
| 5,000+ | ₹13.22 | ₹66,100.00 |
5 × ₹28.25
₹141.25
excl. GST
₹166.68 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LD1117S50CTR
₹141.25 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 5mA
- Output Configuration
- Positive
- Operating Voltage
- 15V
- Output Current
- 800mA
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.22 g
Overview
The LD1117 is a low drop voltage regulator able to provide up to 800 mA of output current, available even in adjustable version (V_REF = 1.25 V). Concerning fixed versions, are offered the following output voltages: 1.2 V, 1.8 V, 2.5 V, 2.85 V, 3.3 V and 5.0 V. The device is supplied in: SOT-223, DPAK, SO-8 and TO-220. The SOT223 and DPAK surface mount packages optimize the thermal characteristics even offering a relevant space saving effect. High efficiency is assured by NPN pass transistor.
Key features
- Low dropout voltage (1 V typ.) 2.85 V device performances are suitable for SCSI-2 active termination
- Output current up to 800 mA
- Fixed output voltage of: 1.2 V, 1.8 V, 2.5 V, 3.3 V, 5.0 V
- Adjustable version availability (V_REF = 1.25 V)
- Internal current and thermal limit
- Available in ± 1 % (at 25 °C) and 2 % in full temperature range
- Supply voltage rejection: 75 dB (typ.)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LD1117AG-50-AA3-D-R#C5160420UTC · SOT-223 | UTC | SOT-223 | 1,550 | ₹10.11 · 1,550 in stock | View |
 | LD1117S50TR#C134077ST · SOT-223-3 | ST | SOT-223-3 | 26,120 | ₹25.90 · 26,120 in stock | View |
 | LD1117AG-50-AA3-A-R#C71124UTC · SOT-223 | UTC | SOT-223 | 7,270 | ₹10.33 · 7,270 in stock | View |
 | TLV1117-50IDCYR#C15512TI · SOT-223-4 | TI | SOT-223-4 | 6,475 | ₹56.41 · 6,475 in stock | View |
| TLV1117-50IDCY#C2860180TI · SOT-223-4 | TI | SOT-223-4 | 74 | ₹76.54 · 74 in stock | View | |
