STDatasheet (PDF)

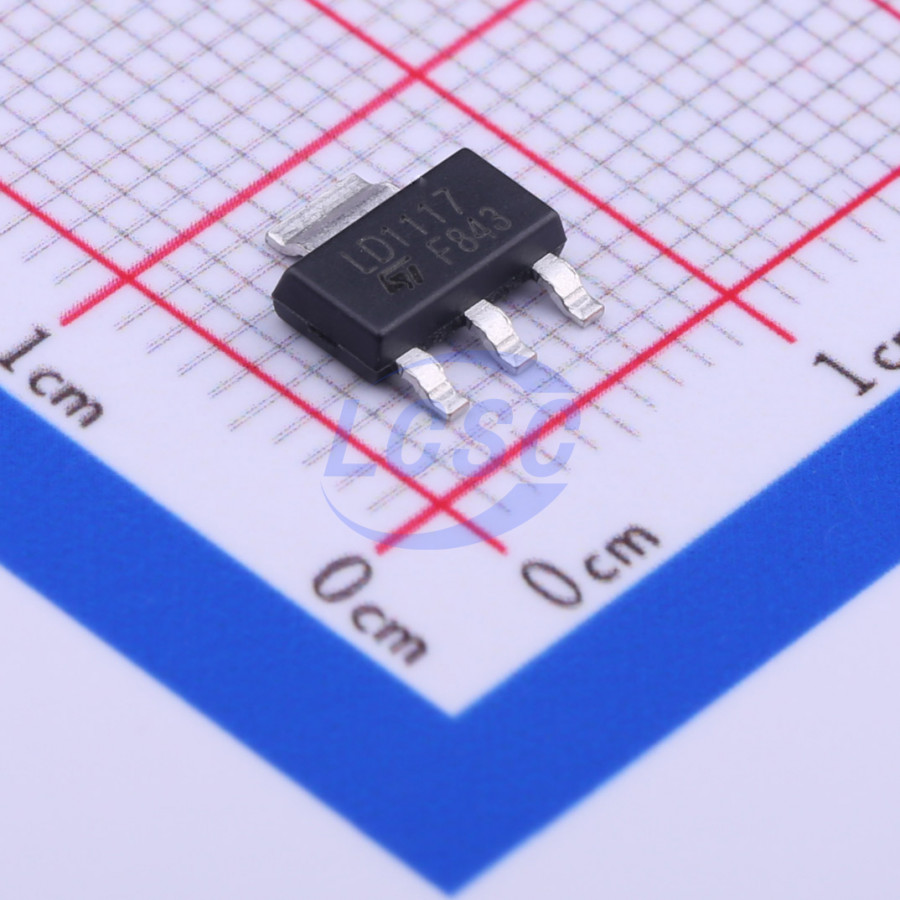

LD1117STR
1.25V~15V Positive Adjustable SOT-223-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-223-3ROHS3 CompliantActive
Adjustable and Fixed Low Dropout Positive Voltage Regulators
- Manufacturer
- ST
- Manufacturer part #
- LD1117STR
- Store part #
- C283466
- Package / case
- SOT-223-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,210 in stock
#C283466
Stock & price checked 25 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹36.29 | ₹181.45 |
| 50+ | ₹27.62 | ₹1,381.00 |
| 150+ | ₹23.91 | ₹3,586.50 |
| 500+ | ₹19.26 | ₹9,630.00 |
| 2,500+ | ₹17.20 | ₹43,000.00 |
| 5,000+ | ₹15.96 | ₹79,800.00 |
5 × ₹36.29
₹181.45
excl. GST
₹214.11 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LD1117STR
₹181.45 for 5 + GST
Specifications
- Output Voltage
- 1.25V~15V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃@(Tj)
- Output Configuration
- Positive
- Operating Voltage
- 15V
- Output Current
- 800mA
- Features
- Built-in soft-start;Over Current Protection;Thermal shutdown
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.22 g
Overview
The LD1117 is a low drop voltage regulator able to provide up to 800 mA of output current, available even in adjustable version (V_REF = 1.25 V). Concerning fixed versions, are offered the following output voltages: 1.2 V, 1.8 V, 2.5 V, 2.85 V, 3.3 V and 5.0 V. The device is supplied in: SOT-223, DPAK, SO-8 and TO-220. The SOT223 and DPAK surface mount packages optimize the thermal characteristics even offering a relevant space saving effect. High efficiency is assured by NPN pass transistor.
Key features
- Low dropout voltage (1 V typ.) 2.85 V device performances are suitable for SCSI-2 active termination
- Output current up to 800 mA
- Fixed output voltage of: 1.2 V, 1.8 V, 2.5 V, 3.3 V, 5.0 V
- Adjustable version availability (V_REF = 1.25 V)
- Internal current and thermal limit
- Available in ± 1 % (at 25 °C) and 2 % in full temperature range
- Supply voltage rejection: 75 dB (typ.)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM1117IMP-ADJ/NOPB#C350541TI · SOT-223-4 | TI | SOT-223-4 | 685 | ₹62.70 · 685 in stock | View |
 | LD1117-ADJ#C19627012HXY MOSFET · SOT-223 | HXY MOSFET | SOT-223 | 50 | ₹6.18 · 50 in stock | View |
 | XBL1117-ADJ#C49242129XBLW · SOT-223 | XBLW | SOT-223 | 3,010 | ₹6.09 · 3,010 in stock | View |
 | ME1117FB3G#C139611MICRONE · SOT-223 | MICRONE | SOT-223 | 2,920 | ₹9.34 · 2,920 in stock | View |
 | SPX1117M3-L/TR#C67402MaxLinear · SOT-223-3 | MaxLinear | SOT-223-3 | 16,725 | ₹30.40 · 16,725 in stock | View |
