STDatasheet (PDF)

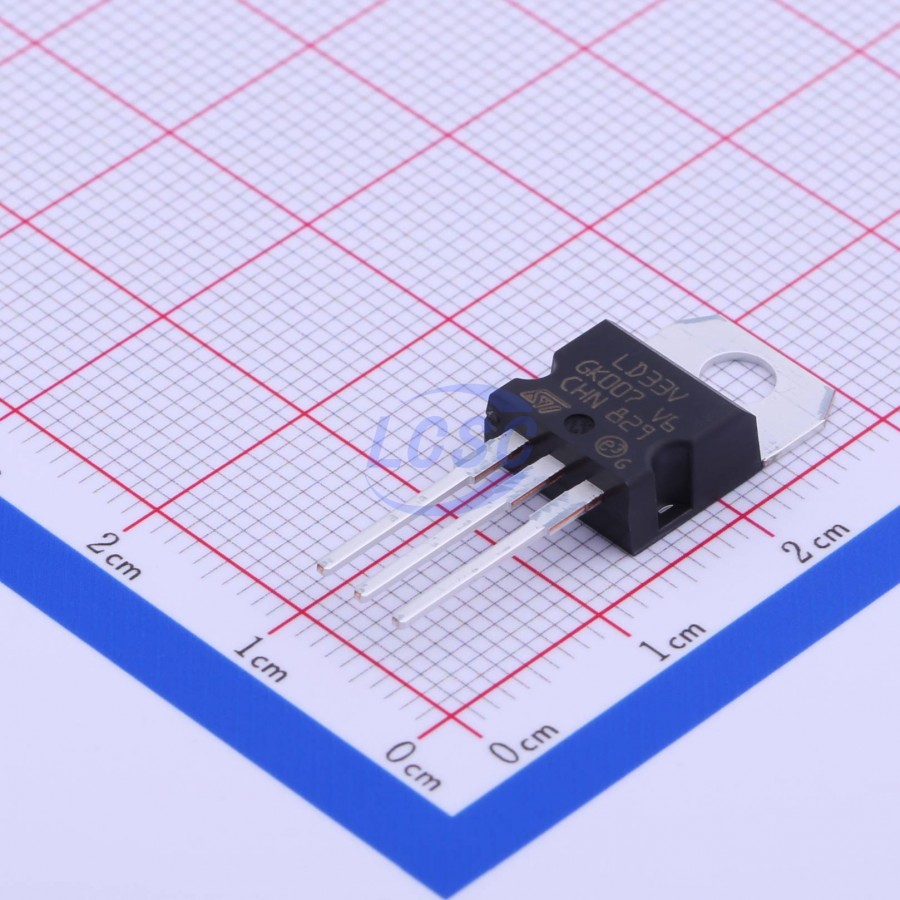

LD1117V33
3.3V Positive Fixed TO-220 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-220ROHS3 CompliantActive
Adjustable and Fixed Low Dropout Positive Voltage Regulators
- Manufacturer
- ST
- Manufacturer part #
- LD1117V33
- Store part #
- C283467
- Package / case
- TO-220
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,090 in stock
#C283467
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹65.18 | ₹65.18 |
| 10+ | ₹50.84 | ₹508.40 |
| 50+ | ₹44.55 | ₹2,227.50 |
| 100+ | ₹36.73 | ₹3,673.00 |
| 500+ | ₹33.46 | ₹16,730.00 |
| 1,000+ | ₹31.29 | ₹31,290.00 |
1 × ₹65.18
₹65.18
excl. GST
₹76.91 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 50 per tube
LD1117V33
₹65.18 for 1 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃@(Tj)
- Supply Current (Iq)
- 5mA
- Output Configuration
- Positive
- Operating Voltage
- 15V
- Output Current
- 800mA
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.26 g
Overview
The LD1117 is a low drop voltage regulator able to provide up to 800 mA of output current, available even in adjustable version (V_REF = 1.25 V). Concerning fixed versions, are offered the following output voltages: 1.2 V, 1.8 V, 2.5 V, 2.85 V, 3.3 V and 5.0 V. The device is supplied in: SOT-223, DPAK, SO-8 and TO-220. The SOT223 and DPAK surface mount packages optimize the thermal characteristics even offering a relevant space saving effect. High efficiency is assured by NPN pass transistor.
Key features
- Low dropout voltage (1 V typ.) 2.85 V device performances are suitable for SCSI-2 active termination
- Output current up to 800 mA
- Fixed output voltage of: 1.2 V, 1.8 V, 2.5 V, 3.3 V, 5.0 V
- Adjustable version availability (V_REF = 1.25 V)
- Internal current and thermal limit
- Available in ± 1 % (at 25 °C) and 2 % in full temperature range
- Supply voltage rejection: 75 dB (typ.)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LD1117V33C#C672117ST · TO-220 | ST | TO-220 | 1,983 | ₹85.31 · 1,983 in stock | View |
 | LM1117T-3.3/NOPB#C201726TI · TO-220 | TI | TO-220 | 443 | ₹249.88 · 443 in stock | View |
 | MC33269T-3.3/HG#C46614084HGSEMI · TO-220-3 | HGSEMI | TO-220-3 | 625 | ₹44.98 · 625 in stock | View |
 | LM1086T-3.3#C444381HGSEMI · TO-220 | HGSEMI | TO-220 | 1,340 | ₹38.27 · 1,340 in stock | View |
 | LD1086V33-DG#C500665ST · TO-220 | ST | TO-220 | 321 | ₹213.12 · 321 in stock | View |
