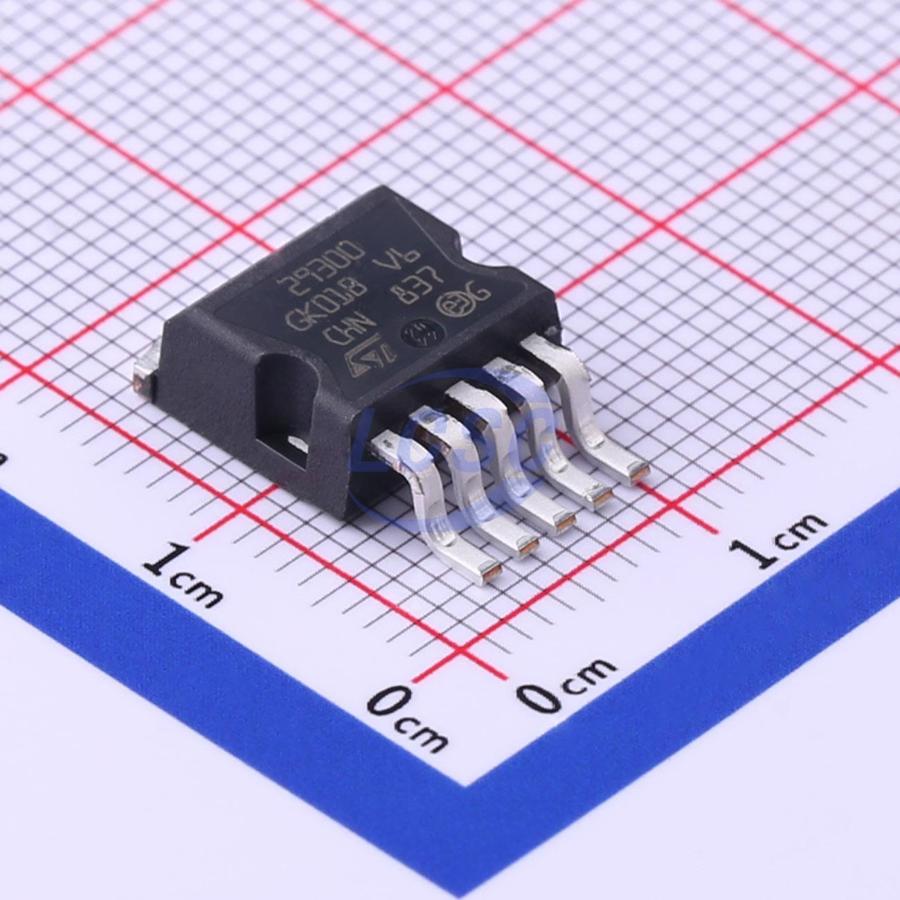

LD29300P2MTR
1.23V~13.3V Positive Adjustable TO-263-6 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-263-6ROHS3 CompliantActive
3 A, very low drop voltage regulator
- Manufacturer
- ST
- Manufacturer part #
- LD29300P2MTR
- Store part #
- C500927
- Package / case
- TO-263-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
296 in stock
#C500927
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹146.58 | ₹146.58 |
| 10+ | ₹118.04 | ₹1,180.40 |
| 30+ | ₹102.36 | ₹3,070.80 |
| 100+ | ₹84.50 | ₹8,450.00 |
| 500+ | ₹76.67 | ₹38,335.00 |
| 1,000+ | ₹73.18 | ₹73,180.00 |
1 × ₹146.58
₹146.58
excl. GST
₹172.96 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
LD29300P2MTR
₹146.58 for 1 + GST
Specifications
- Output Voltage
- 1.23V~13.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 180mA
- Output Configuration
- Positive
- Operating Voltage
- 14V
- Output Current
- 3A
- Features
- Enable control;Over Current Protection;Thermal shutdown;Short Circuit Protection
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2 g
Overview
The LD29300 is a high current, high accuracy, low-dropout voltage regulator. This regulator features 400 mV dropout voltage and very low ground current. Designed for high current loads, this device is also used in lower current, extremely low dropout-critical systems, where its tiny dropout voltage and ground current values are important attributes. Typical applications are in power supply switching post regulation, series power supply for monitors, series power supply for VCRs and TVs, computer systems and battery-powered systems.
Applications
- power supply switching post regulation
- series power supply for monitors
- series power supply for VCRs and TVs
- computer systems
- battery-powered systems
Key features
- Very low dropout voltage (typ. 0.4 V at 3A)
- High accuracy: ±1% @25°C
- Guaranteed output current up to 3 A
- Internal current and thermal limit
- Logic controlled electronic shutdown
