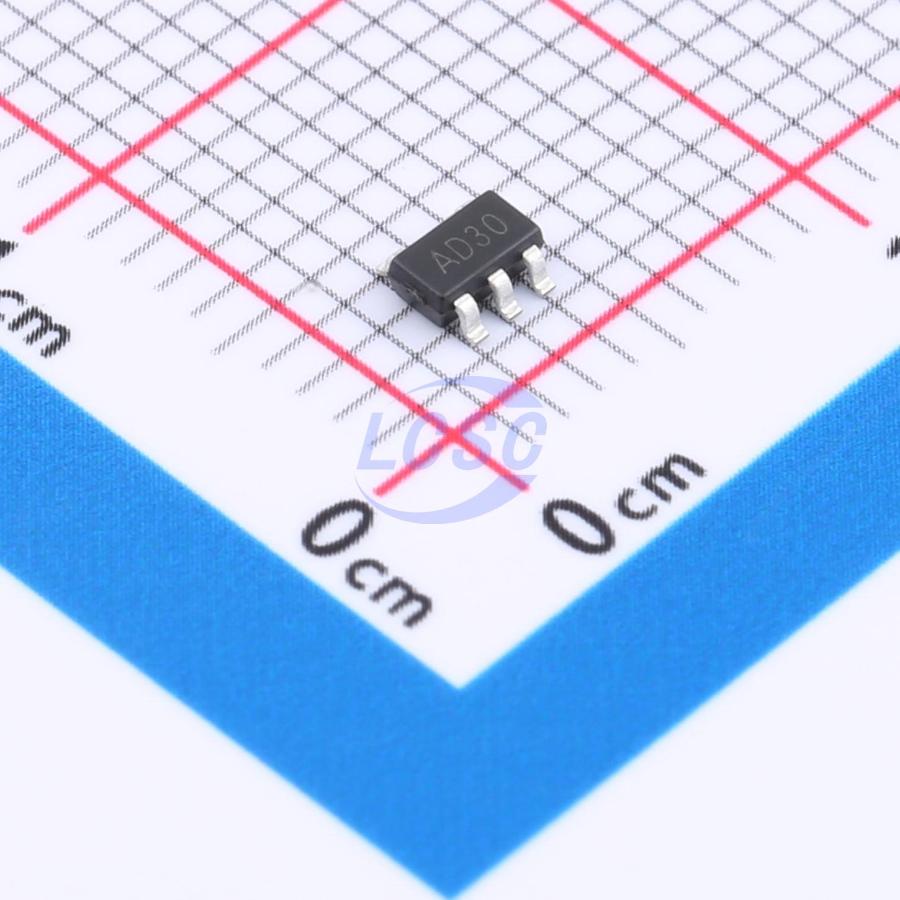

LD39020ADM30R

The LD39020 high accuracy voltage regulator provides 200 mA of maximum current from an input voltage ranging from 1.5 to 5.5 V, with a typical dropout voltage of 200 mV. It is available in DFN4 1x1 and SOT23-5L packages, allowing the maximum space saving. The device is stabilized with a ceramic capacitor on the output. The ultra low drop voltage, low quiescent current and low noise features, together with the internal softstart circuit, make the LD39020 suitable for low power battery-operated applications. An enable logic control function puts the LD39020 in shutdown mode allowing a total current consumption lower than 0.1 μA. Constant current and thermal protection are provided.

Applications

• Mobile phones
• Tablets
• Digital still cameras (DSC)
• Cordless phones and similar battery-powered systems
• Portable media players

Key features

• Input voltage from 1.5 to 5.5 V
• Ultra low dropout voltage (200 mV typ. at 200 mA load)
• Very low quiescent current (20 μA typ at no load, 0.03 μA typ in off mode)
• Output voltage tolerance: ± 0.5 % (A version) or ± 2.0 % @ 25 °C (standard version)
• 200 mA guaranteed output current
• High PSRR (80 dB@1 kHz, 50 dB@100 kHz)
• Wide range of output voltages available on request: from 0.8 to up to 5.0 V in 50 mV step
• Logic-controlled electronic shutdown
• Internal soft-start
• Optional output voltage discharge feature
• Compatible with ceramic capacitor COUT = 0.47 μF
• Internal current limit and thermal protections
• Available in DFN4 1x1 and SOT23-5L packages
• Operating temperature range: -40 °C to 125 °C
