STDatasheet (PDF)

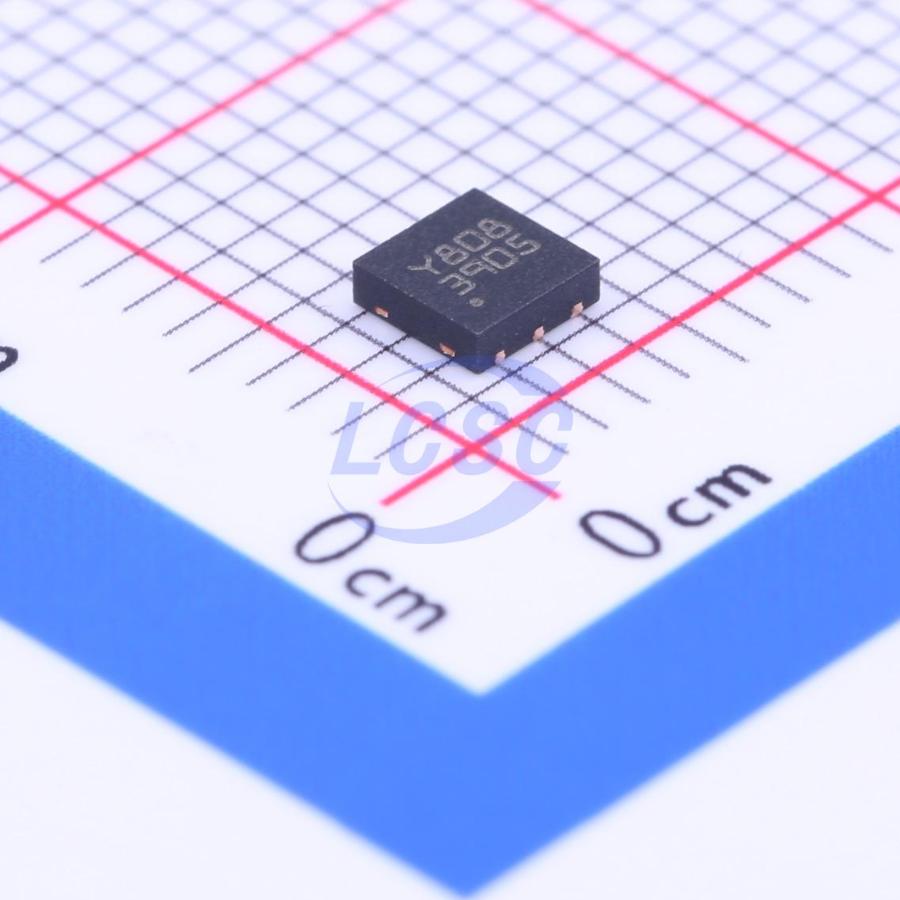

LD39050PUR
800mV~5.5V Positive Adjustable DFN-6(3x3) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
DFN-6(3x3)ROHS3 CompliantActive
500 mA low quiescent current, low noise regulator
- Manufacturer
- ST
- Manufacturer part #
- LD39050PUR
- Store part #
- C222094
- Package / case
- DFN-6(3x3)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,021 in stock
#C222094
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹114.08 | ₹114.08 |
| 10+ | ₹91.71 | ₹917.10 |
| 30+ | ₹80.62 | ₹2,418.60 |
| 100+ | ₹69.54 | ₹6,954.00 |
| 500+ | ₹62.80 | ₹31,400.00 |
| 1,000+ | ₹59.55 | ₹59,550.00 |
1 × ₹114.08
₹114.08
excl. GST
₹134.61 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LD39050PUR
₹114.08 for 1 + GST
Specifications
- Output Voltage
- 800mV~5.5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 20uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 500mA
- Features
- Enable control;Operating status indication;Short Circuit Protection;Thermal shutdown
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.169 g
Overview
The LD39050 provides 500 mA current with an input voltage range from 1.5 V to 5.5 V and a typical dropout voltage of 200 mV. Stability is given by ceramic capacitors. The ultra low dropout voltage, low quiescent current and low noise features make it suitable for low power battery-powered applications. Power supply rejection is 65 dB at low frequencies and starts to roll off at kHz. The enable logic control function puts the LD39050 in shutdown mode allowing a total current consumption lower than 1 µA. The device also includes short-circuit constant current limiting and thermal protection.
Key features
- Ultra low-dropout voltage (200 mV typ. at 50 mA)
- Very low quiescent current: 100 μA typ. at 500 mA load, 1 μA max (shutdown)
- Output voltage tolerance: ±2.0% @ 25 °C, 500 mA
- Adjustable output voltage from 0.8 V up to input voltage
- Compatible with (3x3 mm) and (2x2 mm) ceramic capacitors
- Operating temperature range: -40 °C to 125 °C
