STDatasheet (PDF)

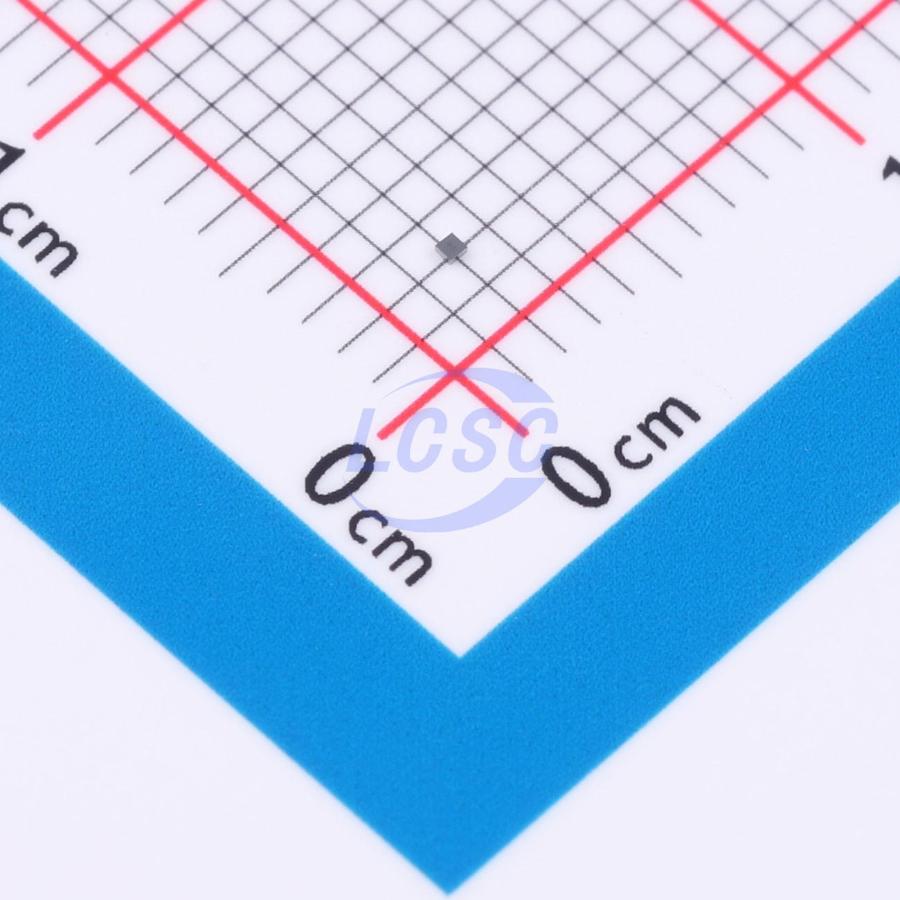

LDBL20D-18R
1.8V Positive Fixed STSTAMP-4(0.5x0.5) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
STSTAMP-4(0.5x0.5)RoHSActive
200 mA ultra-low quiescent current linear regulator IC, (0.47x0.47) mm² ST STAMP package
- Manufacturer
- ST
- Manufacturer part #
- LDBL20D-18R
- Store part #
- C5268014
- Package / case
- STSTAMP-4(0.5x0.5)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
194 in stock
#C5268014
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹98.30 | ₹98.30 |
| 10+ | ₹95.92 | ₹959.20 |
| 30+ | ₹94.20 | ₹2,826.00 |
| 100+ | ₹92.68 | ₹9,268.00 |
1 × ₹98.30
₹98.30
excl. GST
₹115.99 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 15,000 per reel
LDBL20D-18R
₹98.30 for 1 + GST
Specifications
- Output Voltage
- 1.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 100uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 200mA
- Output Type
- Fixed
- Features
- Enable control;Built-in soft-start;Output discharge;Over Current Protection;Thermal shutdown
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 15,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.005 g
Overview
The LDBL20 high accuracy voltage regulator provides 200 mA of maximum current from an input voltage ranging from 1.5 V to 5.5 V, with a typical dropout voltage of 200 mV. It is available in the new STSTAMP™ package, allowing the maximum space saving. The device is stabilized with a ceramic capacitor on the output. The ultra low drop voltage, low quiescent current and low noise features, together with the internal softstart circuit, make the LDBL20 suitable for low power battery-operated applications. An enable logic control function puts the LDBL20 in shutdown mode with a total current consumption lower than 0.2 μA. Constant current and thermal protection are provided.
Applications
- Mobile phones
- Tablet
- Digital still cameras (DSC)
- Wearable devices
- Portable media players
Key features
- Input voltage from 1.5 to 5.5 V
- Ultra low dropout voltage (200 mV typ. at 200 mA load)
- Very low quiescent current (20 μA typ. at no - load, 0.03 μA typ. in off mode)
- Output voltage tolerance: ± 1.5% @ 25 °C
- 200 mA guaranteed output current
- High PSRR (80 dB@1 kHz, 50 dB@100 kHz)
- Wide range of output voltages available on request: from 0.8 V up to 5.0 V in 50 mV step
- Logic - controlled electronic shutdown
- Internal soft - start
- Optional output voltage discharge feature
- Compatible with ceramic capacitor COUT = 0.47 μF
- Internal constant current and thermal protections
- Available in STSTAMP™ (0.47×0.47) mm² package
- Operating temperature range: - 40 °C to 125 °C
