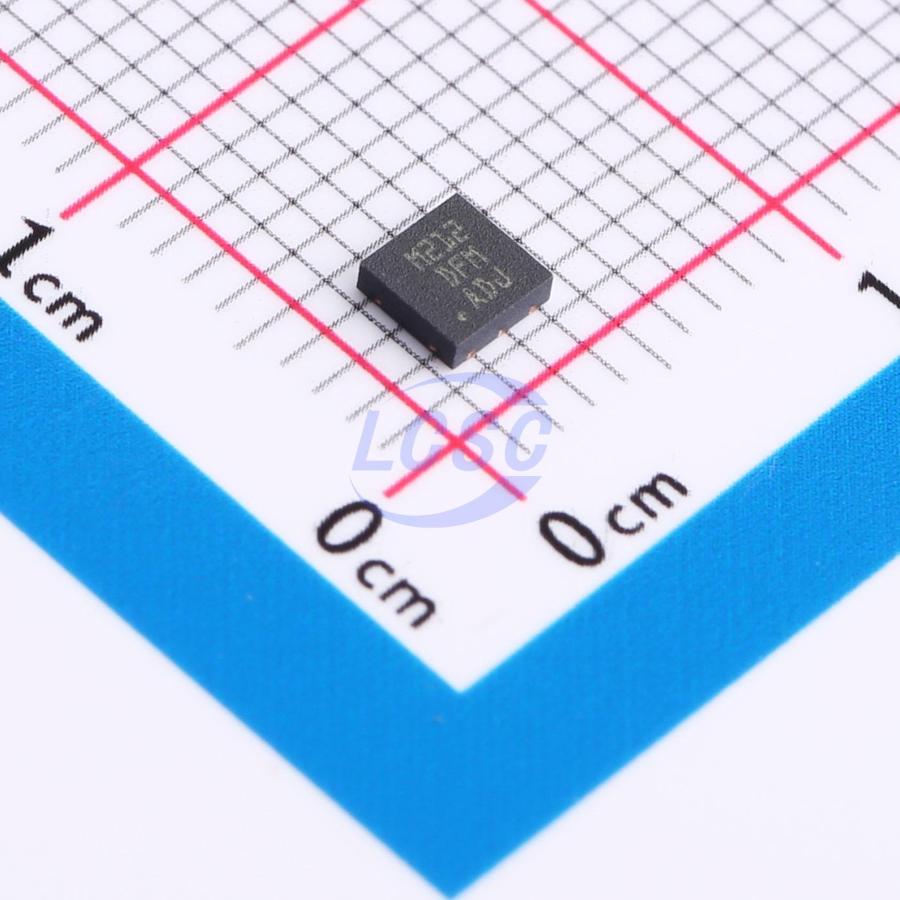

LDFMPUR

800mV~12V Positive Adjustable DFN-6(3x3) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

DFN-6(3x3)ROHS3 CompliantActive

500 mA Ultra-Low Dropout Regulator

Manufacturer: ST
Manufacturer part #: LDFMPUR
Store part #: C672097
Package / case: DFN-6(3x3)
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

14 in stock

#C672097

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
1+	₹127.92	₹127.92
10+	₹125.10	₹1,251.00
30+	₹123.16	₹3,694.80
100+	₹121.20	₹12,120.00

Quantity (min 1)

1 × ₹127.92

₹127.92

excl. GST

₹150.95 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

LDFMPUR

₹127.92 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 800mV~12V
Number of Outputs: 1
Operating Temperature: -40℃~+125℃
Supply Current (Iq): 200uA
Output Configuration: Positive
Output Current: 500mA
Operating Voltage: 16V
Features: Enable control;Operating status indication;Short Circuit Protection;Over Current Protection;Thermal shutdown
Output Type: Adjustable

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.16 g

Overview

The LDFM is a fast, very low drop linear regulator which operates from an input supply voltage in the range of 2.5 V to 16 V. It is available in fixed and adjustable output voltage versions, from 0.8 V to 12 V The LDFM features high output precision, very low dropout voltage, low noise, and low quiescent current, therefore suitable for low voltage microprocessors and memory applications. Enable logic control pin and Power Good output are featured on PPAK/DFN packages. Current and thermal protection are provided.

Applications

PCs and laptop computers
Battery-powered equipment
Industrial and medical equipment
Portable equipment

Key features

Input voltage from 2.5 to 16 V
Very low dropout voltage (300 mV max. at 500 mA load)
Low quiescent current 200 μA typ. @ 500 mA load
Available in 1 % precision in PPAK and DFN6 packages, 2 % in DPAK
500 mA guaranteed output current
Wide range of output voltages available on request: adjustable from 0.8 V, fixed up to 12 V in 100 mV steps
Logic-controlled electronic shutdown
Power Good (PPAK and DFN packages)
Fast dynamic response to line and load changes
Internal current and thermal protection
Temperature range: - 40 °C to 125 °C
