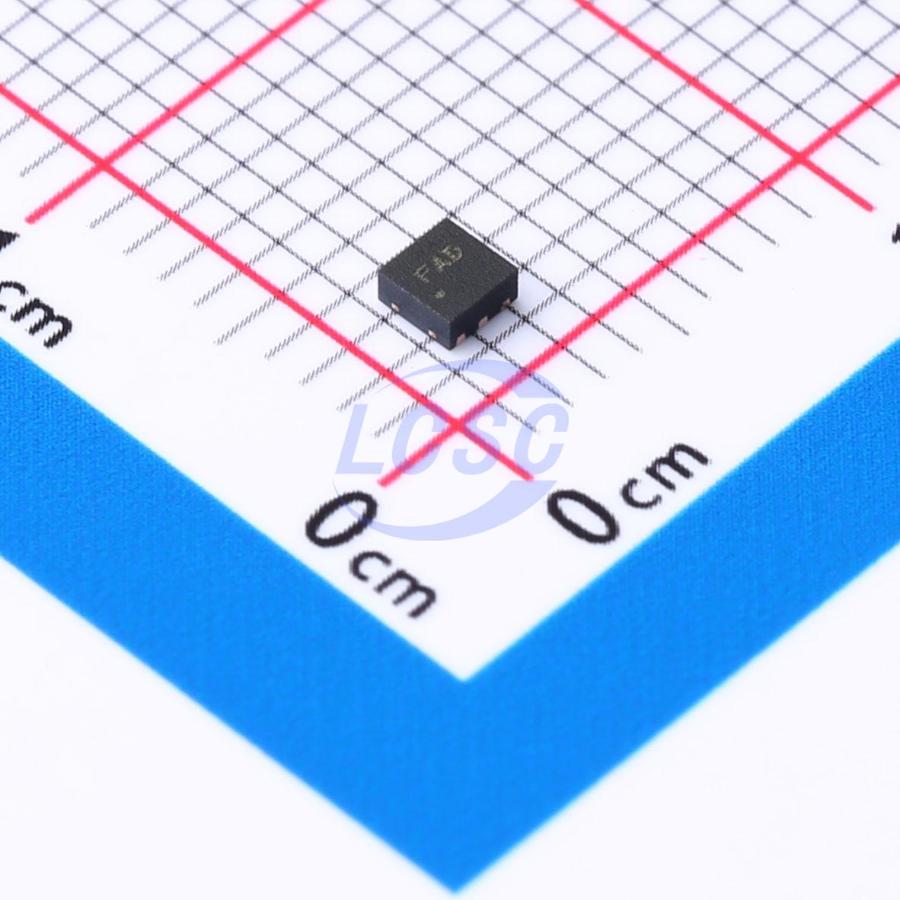

LDFPVR
800mV~12V Positive Adjustable DFN-6(2x2) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
DFN-6(2x2)ROHS3 CompliantActive
1A Low Dropout Regulator IC
- Manufacturer
- ST
- Manufacturer part #
- LDFPVR
- Store part #
- C2969978
- Package / case
- DFN-6(2x2)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
159 in stock
#C2969978
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹281.59 | ₹281.59 |
| 10+ | ₹241.51 | ₹2,415.10 |
| 30+ | ₹216.69 | ₹6,500.70 |
| 100+ | ₹191.00 | ₹19,100.00 |
| 500+ | ₹179.45 | ₹89,725.00 |
| 1,000+ | ₹174.44 | ₹1,74,440.00 |
1 × ₹281.59
₹281.59
excl. GST
₹332.28 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LDFPVR
₹281.59 for 1 + GST
Specifications
- Output Voltage
- 800mV~12V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 800uA
- Output Configuration
- Positive
- Operating Voltage
- 16V
- Output Current
- 1A
- Features
- Enable control;Operating status indication;Short Circuit Protection;Over Current Protection;Thermal shutdown
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.07 g
Overview
The LDF is a fast, very low drop linear regulator which operates from an input supply voltage in the range of 2.6 V to 16 V. It is available in fixed and adjustable output voltage versions, from 0.8 V to 12 V. The LDF features are: high output precision, very low-dropout voltage, low noise, and low quiescent current, therefore suitable for low voltage microprocessors and memory applications. Enable logic control pin and power-good output are featured on PPAK/DFN packages. Current and thermal protection are provided.
Applications
- Computer and laptop
- Battery-powered equipments
- Industrial and medical equipment
- Consumer and set-top box
Key features
- Input voltage from 2.6 to 16 V
- Very low-dropout voltage (500 mV max. at 1 A load)
- Low quiescent current 200 μA typ. (@ A load)
- Available in 1% precision in PPAK and DFN6 packages, 2% in DPAK
- 1 A guaranteed output current
- Wide range of output voltages available on request: adjustable from 0.8 V, fixed up to 12 V in 100 mV steps
- Logic-controlled electronic shutdown
- Power Good (PPAK and DFN packages)
- Fast dynamic response to line and load changes
- Internal current and thermal protections
- Temperature range: -40 °C to 125 °C
